Item | Part No. | Part Name | Qty | Serial No. |
416-926-2301 | ROPS CAB ASS'Y | 54001-54103 | ||

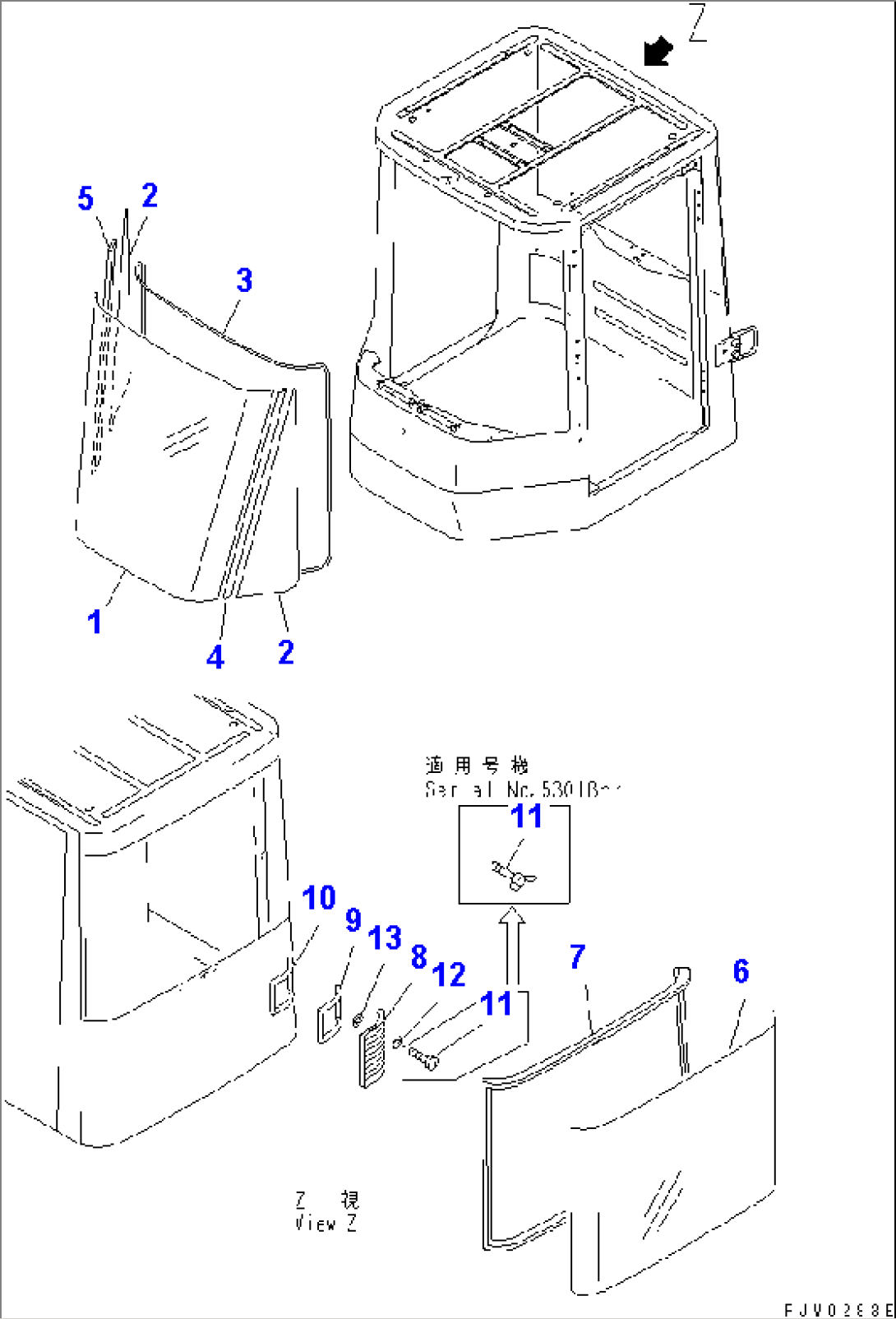

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-21A0. | ||||
1 | 421-926-2860 | GLASS | 54001-54103 | |
2 | 421-926-2870 | GLASS | 54001-54103 | |
3 | 423-56-21140 | STRIP | 54001-54103 | |
4 | 423-56-21150 | STRIP | 54001-54103 | |
5 | 423-56-21160 | STRIP | 54001-54103 | |
6 | 419-926-2180 | GLASS,REAR | 54001-54103 | |
7 | 421-56-21170 | STRIP | 54001-54103 | |
8 | 421-56-21480 | COVER | 54001-54103 | |
9 | 417-56-21560 | SEAL | 54001-54103 | |
10 | 421-56-21740 | SEAL | 54001-54103 | |
11 | 01434-00625 | BOLT, WING | 54001-@ | |
12 | 01642-20608 | WASHER | 54001-@ | |
13 | 423-56-21920 | WASHER | 54001-@ |
