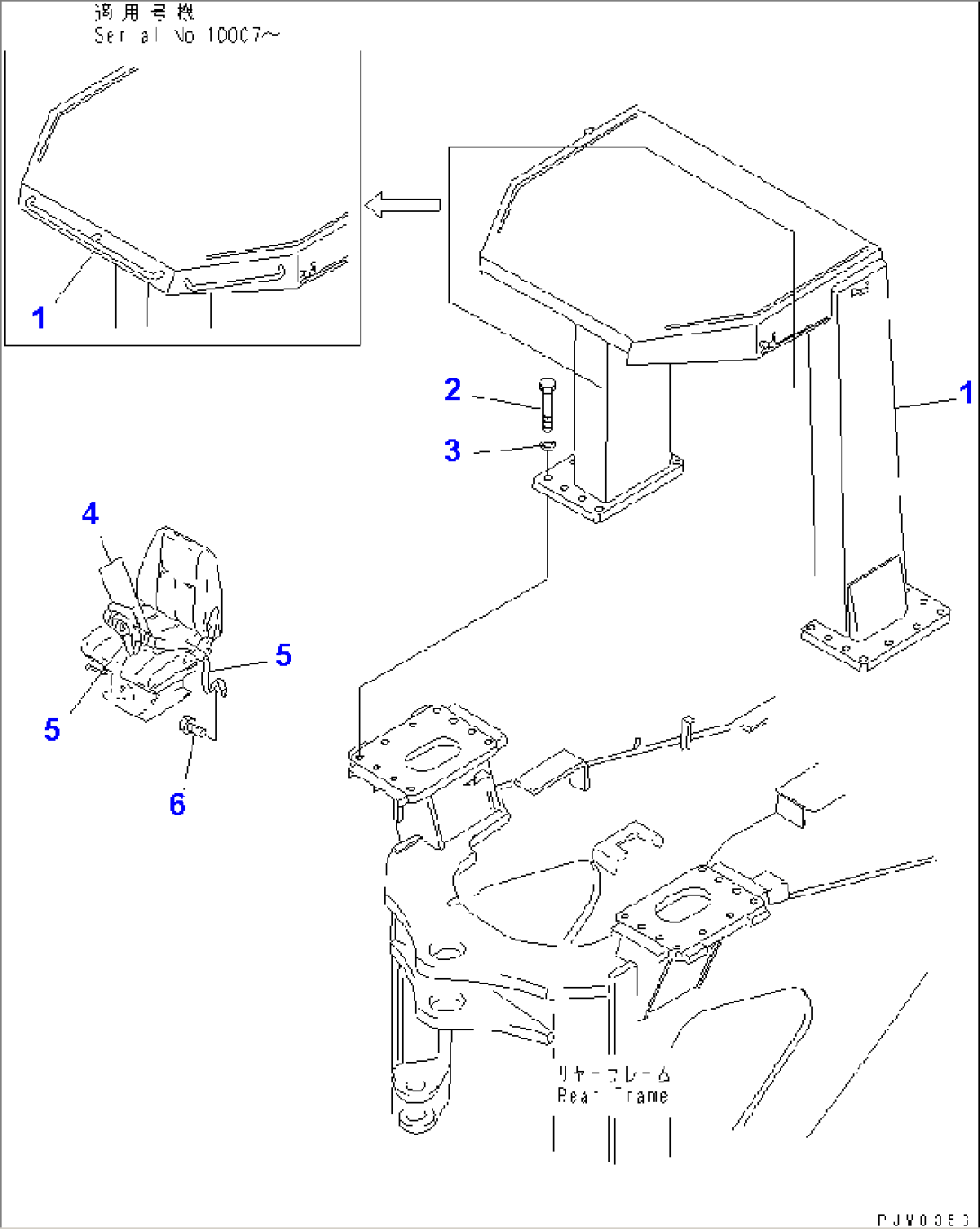

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-54-19001 | ROPS CANOPY ASS'Y | 10001- | ||
| 1 | \6\ | CANOPY,ROPS | 10007- | |
| 1 | \6\ | CANOPY,ROPS | 10001-10006 | |
| 2 | 01011-63650 | BOLT | 10001- | |
| 3 | 01643-33690 | WASHER | 10001- | |
| 4 | 09409-10001 | BELT, LAP | 10001- | |
| 4 | 09409-00001 | BOLT | 10001- | |
| 4 | 09409-00003 | NUT | 10001- | |
| 4 | 09409-00002 | WASHER | 10001- | |
| 5 | 09409-20000 | BELT, TETHER | 10001- | |
| 5 | 09409-00001 | BOLT | 10001- | |
| 5 | 09409-00003 | NUT | 10001- | |
| 5 | 09409-00002 | WASHER | 10001- | |
| 6 | 02030-70719 | BOLT | 10001- |
