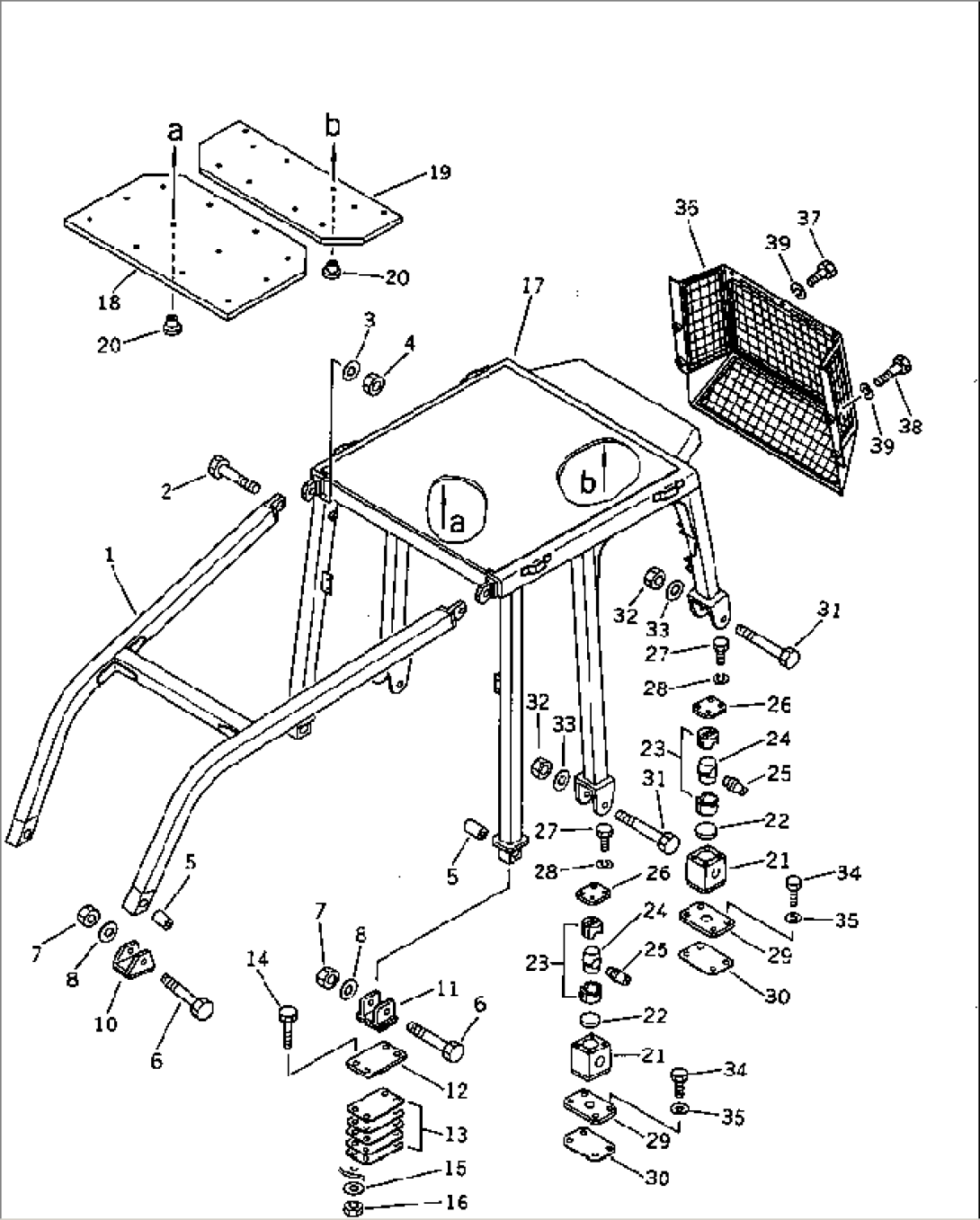

ROPS CANOPY (WITH SWEEPER AND REAR NET)

Item	Part No.	Part Name	Qty	Serial No.
1	144-978-8561	SWEEP		45001-
2	01010-53090	BOLT		45001-
3	01643-33080	WASHER		45001-
4	01580-13024	NUT		45001-
5	195-978-1311	ISOLATOR		45001-
6	141-978-2150	BOLT		45001-
7	175-978-3210	NUT		45001-
8	01643-32780	WASHER		45001-
10	144-978-8670	BRACKET		45001-
11	145-Z78-1130	BRACKET		45001-
12	144-978-8680	PLATE		45001-
13	144-978-8690	PLATE		45001-
14	01010-51665	BOLT		45001-
15	01643-31645	WASHER		45001-
16	01580-11613	NUT		45001-
17	144-978-8511	ROPS CANOPY		45001-
18	144-978-8361	LINING,(FOR D60E)		47674-
18	\0\144-978-8360	LINING,(FOR D60E)		45125-47673
18	120-Y78-4471	LINING,(FOR D60E)		45001-45124
18	144-978-8361	LINING,(FOR D65E)		47720-
18	\0\144-978-8360	LINING,(FOR D65E)		46376-47719
18	120-Y78-4471	LINING,(FOR D65E)		45001-46375
19	144-978-8371	LINING,(FOR D60E)		47674-
19	\0\144-978-8370	COVER,(FOR D60E)		45125-47673
19	120-Y78-4481	LINING,(FOR D60E)		45001-45124
19	144-978-8371	LINING,(FOR D65E)		47720-
19	\0\144-978-8370	COVER,(FOR D65E)		46376-47719
19	120-Y78-4481	LINING,(FOR D65E)		45001-46375
20	144-978-8380	BUTTON,(FOR D60E)		45125-
20	120-Y78-4550	BUTTON,(FOR D60E)		45001-45124
20	144-978-8380	BUTTON,(FOR D65E)		46376-
20	120-Y78-4550	BUTTON,(FOR D65E)		45001-46375
21	120-Y78-3362	BRACKET		45001-
22	120-Y78-3240	PLATE		45001-
23	175-978-5180	RUBBER		45001-
24	175-978-5160	BLOCK		45001-
25	175-978-5170	COLLAR		45001-
26	120-Y78-4230	PLATE		45001-
27	01010-51230	BOLT		45001-
28	01602-21236	WASHER		45001-
29	144-978-8861	PLATE, 2.3MM		45001-
30	144-978-8871	PLATE, 2.3MM		45001-
31	175-978-5210	BOLT		45001-
32	01580-12722	NUT		45001-
33	01643-32780	WASHER		45001-
34	01018-32055	BOLT		45001-
35	01643-32060	WASHER		45001-
36	144-978-8541	SCREEN		45001-
37	01010-51235	BOLT		45001-
38	01010-51225	BOLT		45001-
39	01602-21236	WASHER,SPRING		45001-
