| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-978-4722 | ROOF | 25001- | |
| 2 | 17M-978-3280 | GUARD | 25001- | |
| 3 | 01010-61640 | BOLT | 25001- | |
| 4 | 01643-31645 | WASHER | 25001- | |
| 5 | 01010-62795 | BOLT | 25001- | |
| 6 | 01643-32780 | WASHER | 25001- | |
| 7 | 04418-13060 | SCREW | 25001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D275a 5 s/n 25001 up
- Operator's compartment and control system
- Rops guard (with back mirror)
Поиск по каталогу

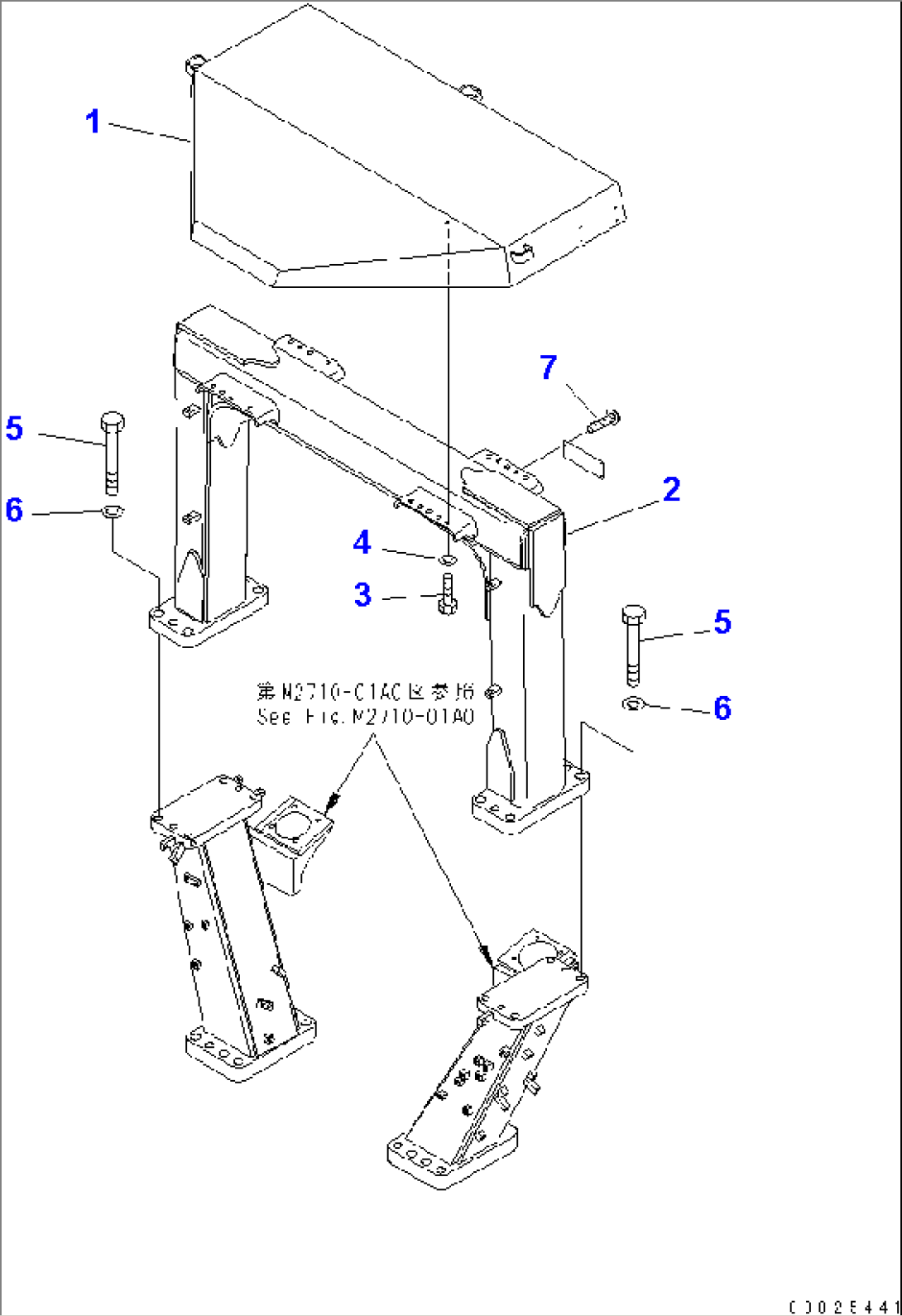

ROPS GUARD (WITH BACK MIRROR)
