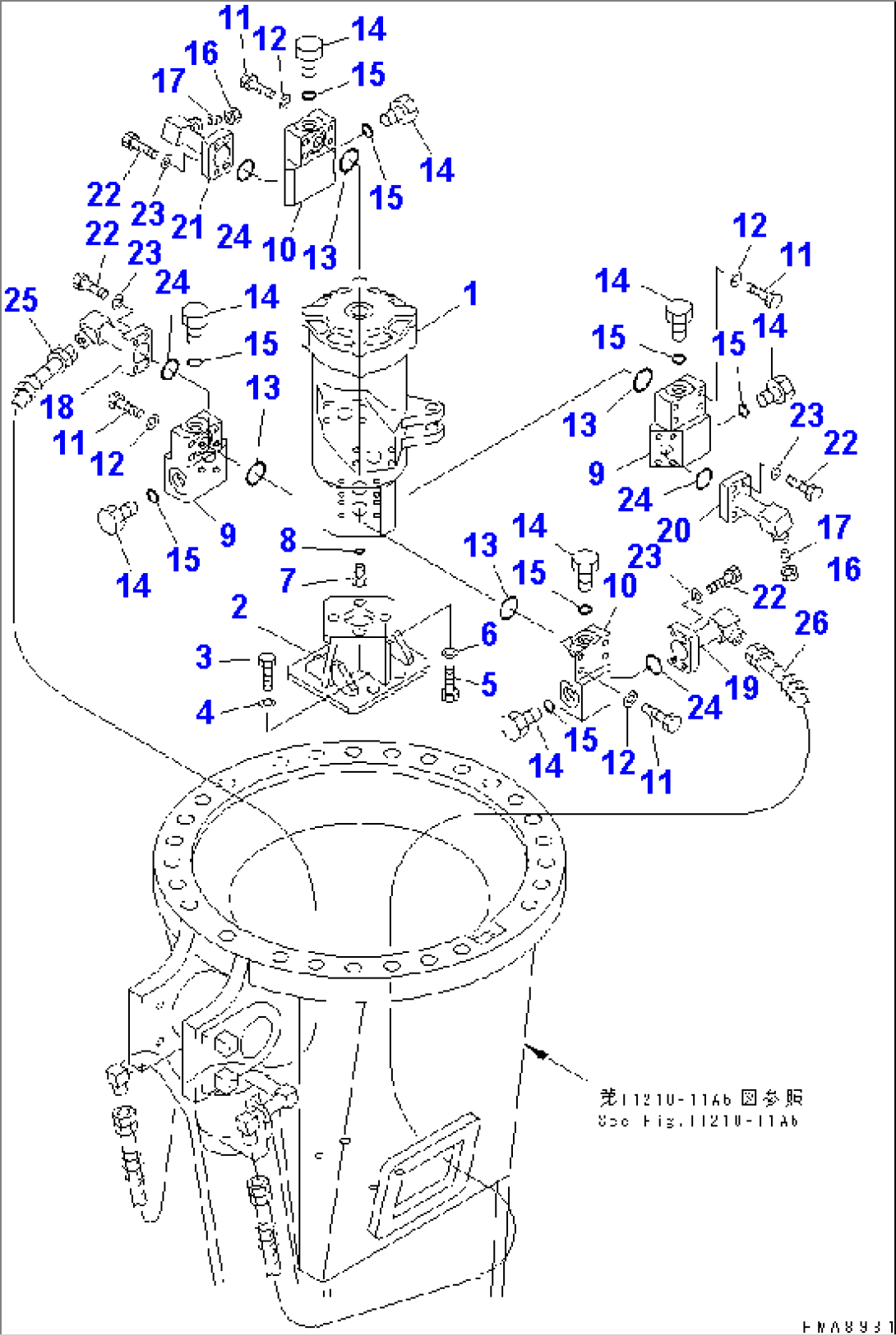

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (703-09-31622) | SWIVEL JOINT ASS'Y,(SEE FIG.T1210-51A5) | K30259- | |
| (703-09-31621) | SWIVEL JOINT ASS'Y,(SEE FIG.T1210-51A5) | K30001-K30258 | ||
| 2 | 20E-966-K150 | BRACKET | K30001- | |
| 3 | 01010-51235 | BOLT | K30001- | |
| 4 | 01643-31032 | WASHER | K30001- | |
| 5 | 01010-51230 | BOLT | K30001- | |
| 6 | 01643-31232 | WASHER | K30001- | |
| 7 | 07040-12012 | PLUG | K30001- | |
| 8 | 07002-12034 | O-RING | K30001- | |
| 9 | 202-966-6780 | BLOCK | K30001- | |
| 10 | 202-966-6790 | BLOCK | K30001- | |
| 11 | 01010-50845 | BOLT | K30001- | |
| 12 | 01643-50823 | WASHER | K30001- | |
| 13 | 07000-13030 | O-RING | K30001- | |
| 14 | 07040-11812 | PLUG | K30001- | |
| 15 | 07002-11823 | O-RING | K30001- | |
| 16 | 07221-20422 | NUT | K30001- | |
| 17 | 07222-20414 | PLUG | K30001- | |
| 18 | 20E-966-K330 | ELBOW | K30001- | |
| 19 | 20E-966-K340 | ELBOW | K30001- | |
| 20 | 20E-966-K450 | ELBOW | K30001- | |
| 21 | 20E-966-K460 | ELBOW | K30001- | |
| 22 | 01010-50830 | BOLT | K30001- | |
| 23 | 01643-50823 | WASHER | K30001- | |
| 24 | 07000-13025 | O-RING | K30001- | |
| 25 | 20E-966-K310 | HOSE | K30001- | |
| 26 | 20E-966-K270 | HOSE | K30001- |
