| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF1708 | PISTON | ||
| 2 | VE9252 | BARREL | ||
| 3 | BF1709 | PLATE, LENS | ||
| 4 | BF1710 | PLATE, RETAINING | ||
| 5 | BF1711 | BALL | ||
| 6 | VE9256 | SPRING | ||
| 7 | BF1712 | PIN | ||
| 8 | VE9258 | RING, SNAP | ||
| 9 | VE9259 | CLIP, DISC RET. |
- Главная
- Каталог запчастей
- Самосвалы
- Bfa40 3 210m (bfa40 ca thru cz)
- Steering group
- Rotary group assembly (bf1706)
Поиск по каталогу

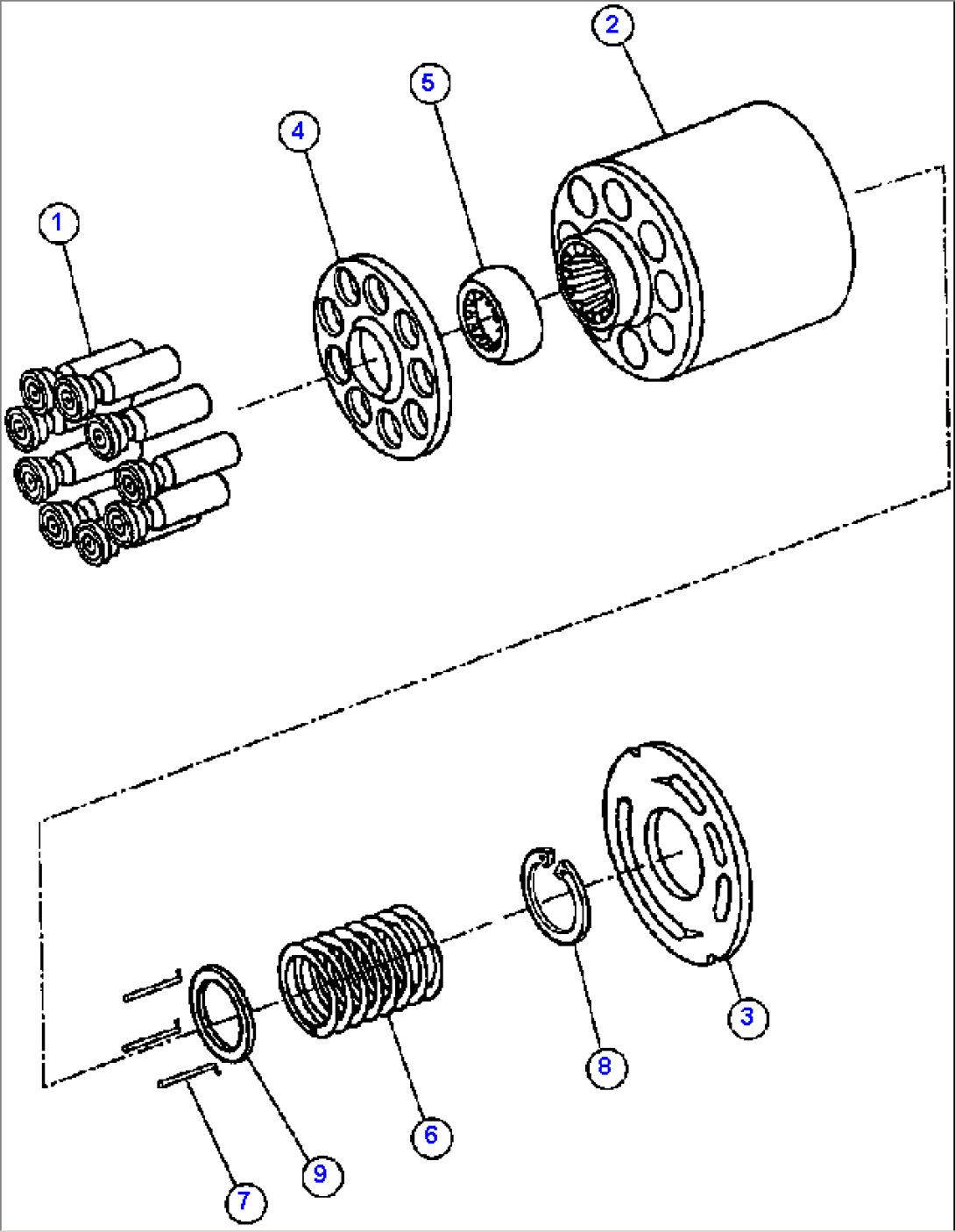

ROTARY GROUP ASSEMBLY (BF1706)
