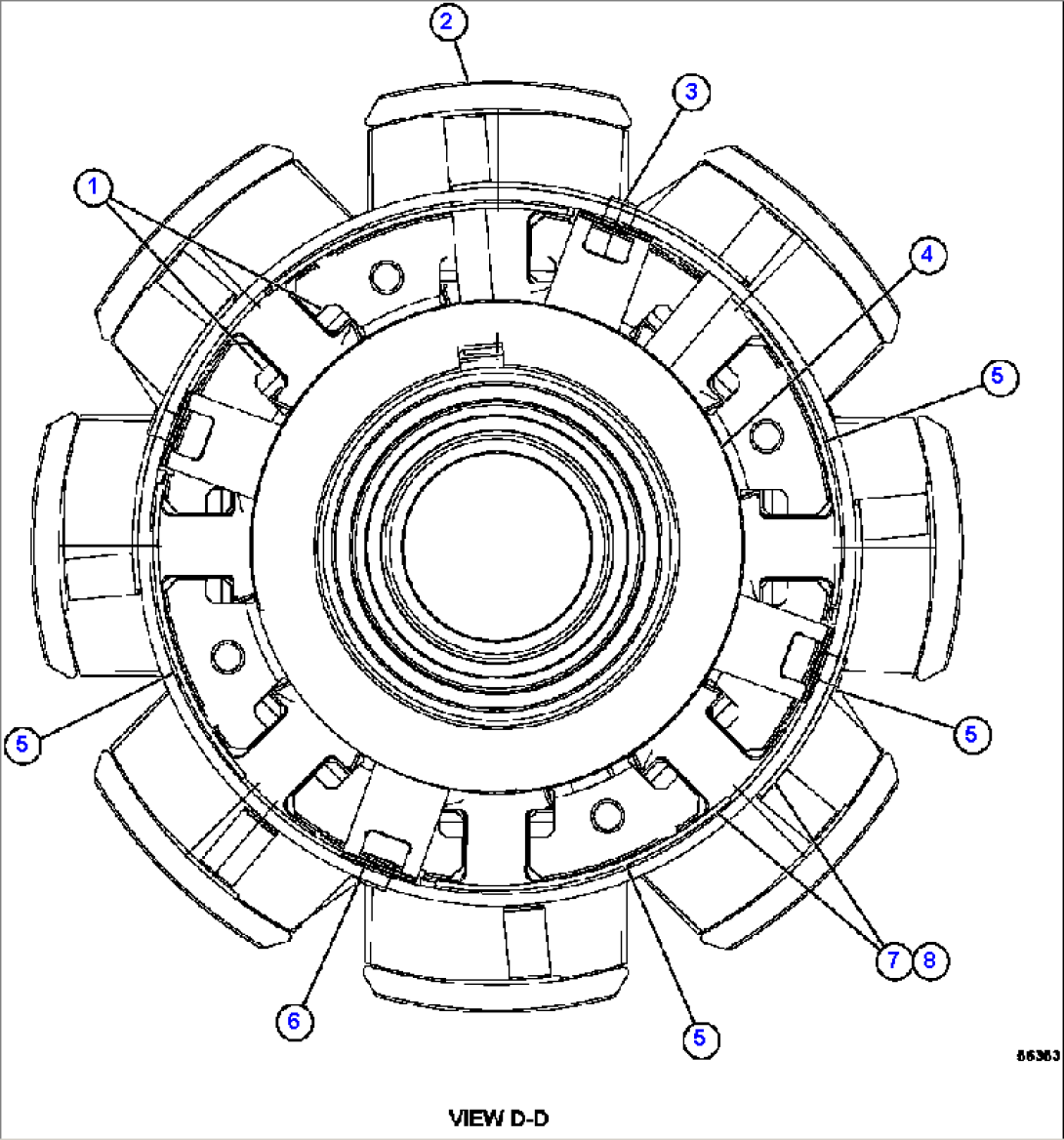

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE1001 | STRIP, SLIPPER | ||
| 2 | 58D-98-01920 | COIL, ROTOR | ||
| 3 | VE4643 | CLAMP, SUPPORT | ||
| 4 | XA4156 | COLLECTOR RING ASSEMBLY | ||
| 5 | VJ1063 | STRAP, CONNECTION | ||
| 6 | BF3105 | RING, TIE | ||
| 7 | BF1007 | TAPE, GLASS (1) | ||
| 8 | BF4833 | STRIP, BRAZING | ||
| NS|9 | 58D-MA-AK010 | NOTE: (1) INCLUDED IN 58D-MA-AK010 ALTERNATOR OVERHAUL KIT. |
