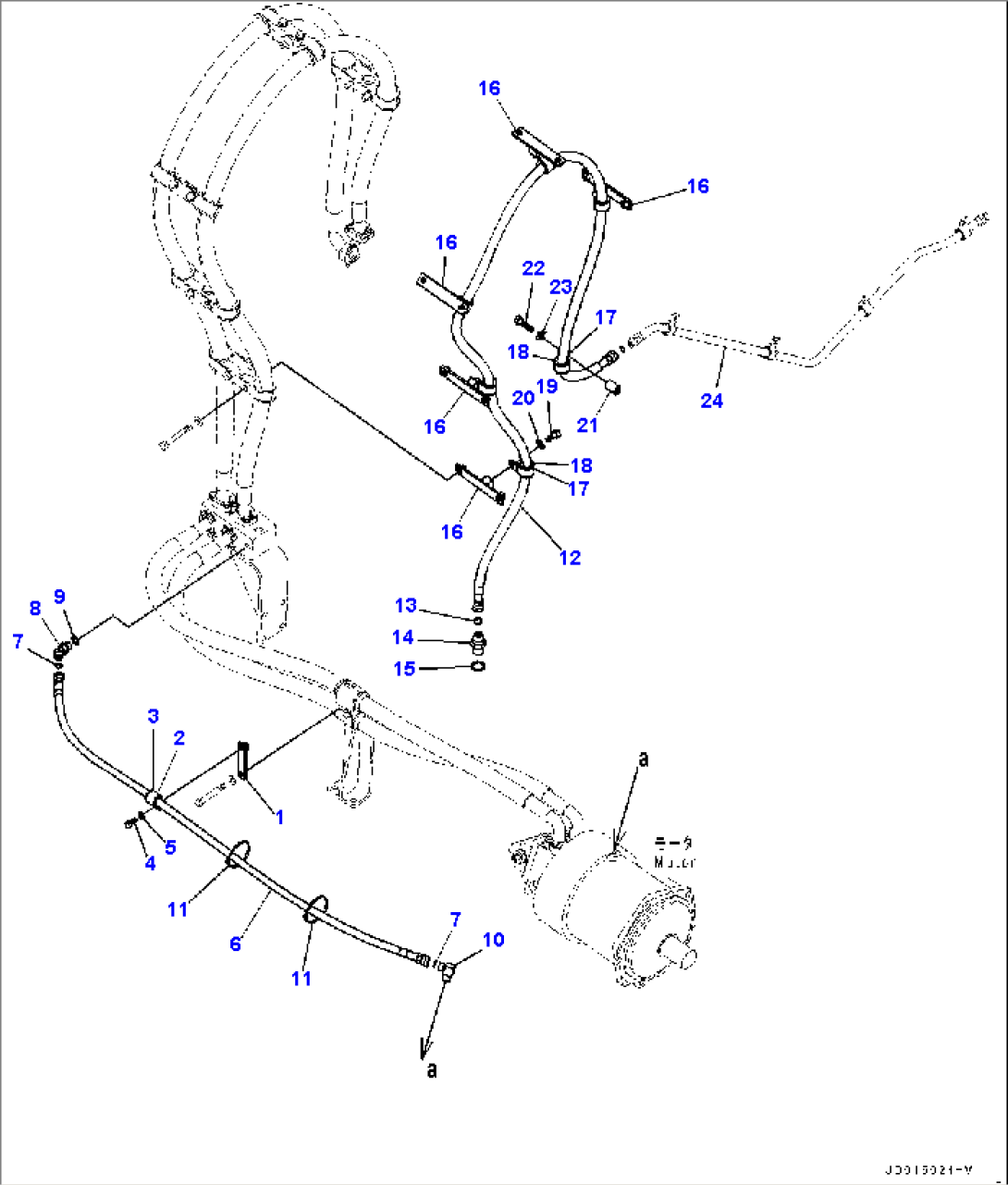

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-49-42331 | Bracket | 1006- | |
| 2 | 04434-53412 | Clip | 1006- | |
| 3 | 07095-20627 | Cushion | 1006- | |
| 4 | 01010-81230 | Bolt | 1006- | |
| 5 | 01643-31232 | Washer | 1006- | |
| 6 | 154-969-3571 | Hose | 1006- | |
| 7 | 02896-11012 | O-ring | 1006- | |
| 8 | 02783-10422 | Elbow | 1006- | |
| 9 | 07002-12034 | O-ring | 1006- | |
| 10 | 21N-64-36520 | Elbow | 1006- | |
| 11 | 08034-20536 | Band | 1006- | |
| 12 | 154-969-7420 | Hose | 1006- | |
| 13 | 02896-11012 | O-ring | 1006- | |
| 14 | 02781-00422 | Union | 1006- | |
| 15 | 07002-12034 | O-ring | 1006- | |
| 16 | 154-969-3713 | Bracket | 1006- | |
| 17 | 04434-53412 | Clip | 1006- | |
| 18 | 07095-20522 | Cushion | 1006- | |
| 19 | 01010-81225 | Bolt | 1006- | |
| 20 | 01643-31232 | Washer | 1006- | |
| 21 | 20Y-03-11220 | Collar | 1006- | |
| 22 | 01010-81260 | Bolt | 1006- | |
| 23 | 01643-31232 | Washer | 1006- | |
| 24 | (154-969-3891) | Tube | - |
