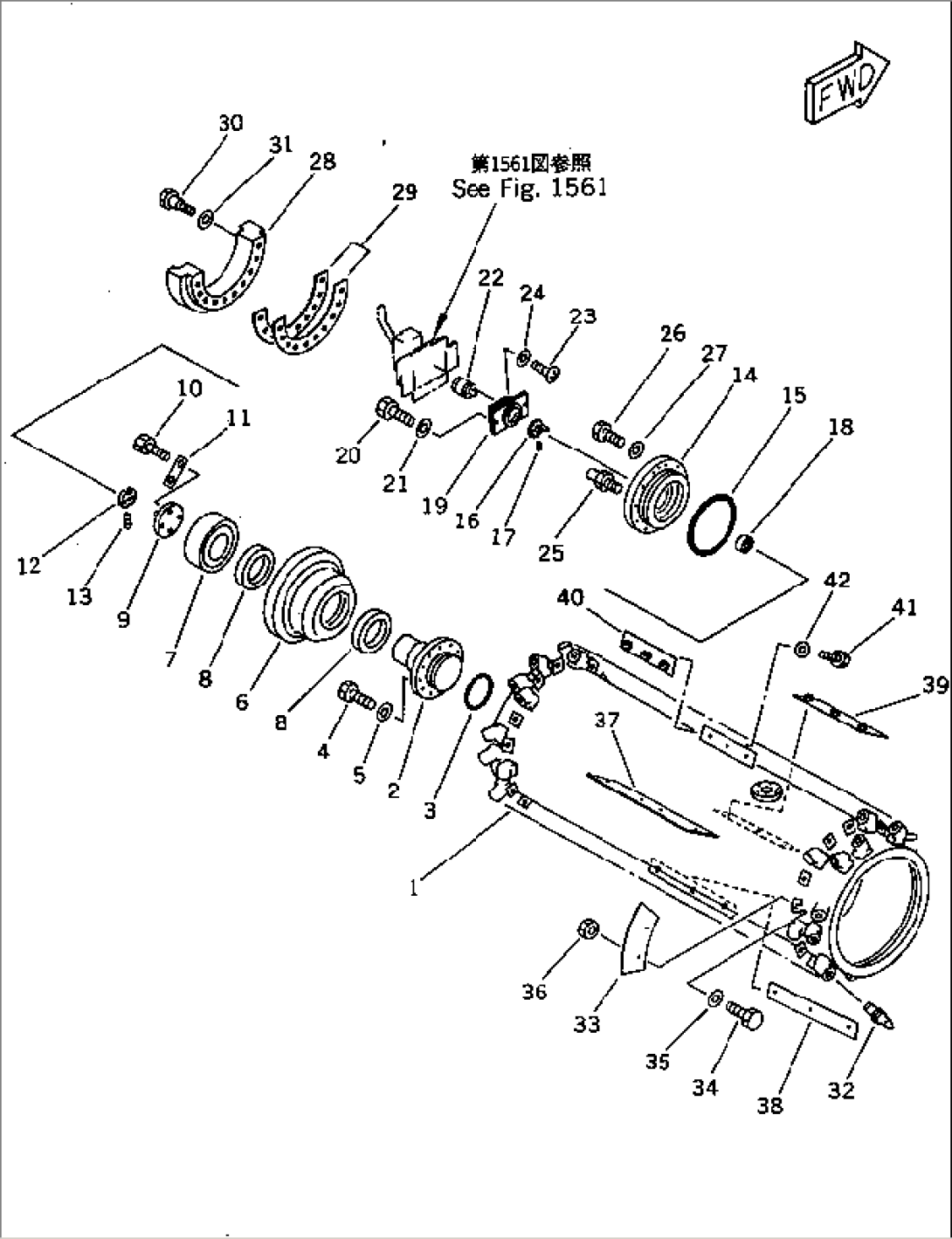

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-70-52142 | ROTOR,DRUM | 11009- | |
| 2 | 262-817-5390 | SHAFT | 11009- | |
| 3 | 07000-05140 | O-RING | 11009- | |
| 4 | 01010-82050 | BOLT | 11009- | |
| 5 | 01643-32060 | WASHER | 11009- | |
| 6 | 262-817-5430 | CASE | 11009- | |
| 7 | 262-70-12290 | BEARING | 11009- | |
| 8 | 262-817-5440 | SEAL,OIL | 11009- | |
| 9 | 262-70-58551 | HOLDER | 11009- | |
| 10 | 01010-52045 | BOLT | 11009- | |
| 11 | 262-817-5420 | LOCK | 11009- | |
| 12 | 262-70-58541 | COUPLING | 11009- | |
| 13 | 01310-00612 | SCREW | 11009- | |
| 14 | 262-70-58561 | COVER | 11009- | |
| 15 | 07000-15230 | O-RING | 11009- | |
| 16 | 262-70-58531 | COUPLING | 11009- | |
| 17 | 01314-20406 | SCREW | 11009- | |
| 18 | 07012-10020 | SEAL | 11009- | |
| 19 | 262-70-58511 | BRACKET | 11009- | |
| 20 | 01010-50825 | BOLT | 11009- | |
| 21 | 01643-50823 | WASHER | 11009- | |
| 22 | (262-06-56350) | TACHOGENERATOR | 11009- | |
| 23 | 262-70-58520 | SCREW | 11009- | |
| 24 | 01641-20305 | WASHER | 11009- | |
| 25 | 07020-00000 | FITTING,GREASE | 11009- | |
| 26 | 01010-51240 | BOLT | 11009- | |
| 27 | 01643-51232 | WASHER | 11009- | |
| 28 | 262-70-56260 | SPACER | 11009- | |
| 29 | 262-70-00031 | SHIM ASS'Y | 11009- | |
| 262-70-56350 | SHIM¤ 0.5MM | 11009- | ||
| 30 | 01051-52025 | BOLT | 11009- | |
| 31 | 01643-32060 | WASHER | 11009- | |
| 32 | 262-817-2520 | BIT | 11009- | |
| 33 | 262-70-52250 | PLATE | 11009- | |
| 34 | 01010-51235 | BOLT | 11009- | |
| 35 | 01643-31232 | WASHER | 11009- | |
| 36 | 01580-11210 | NUT | 11009- | |
| 37 | 262-70-52430 | PLATE,WING | 11009- | |
| 38 | 262-70-52420 | PLATE,WING | 11009- | |
| 39 | 262-70-52410 | PLATE,WING | 11009- | |
| 40 | 262-70-52172 | PLATE,WING | 11009- | |
| 41 | 01010-51655 | BOLT | 11009- | |
| 42 | 01643-31645 | WASHER | 11009- |
