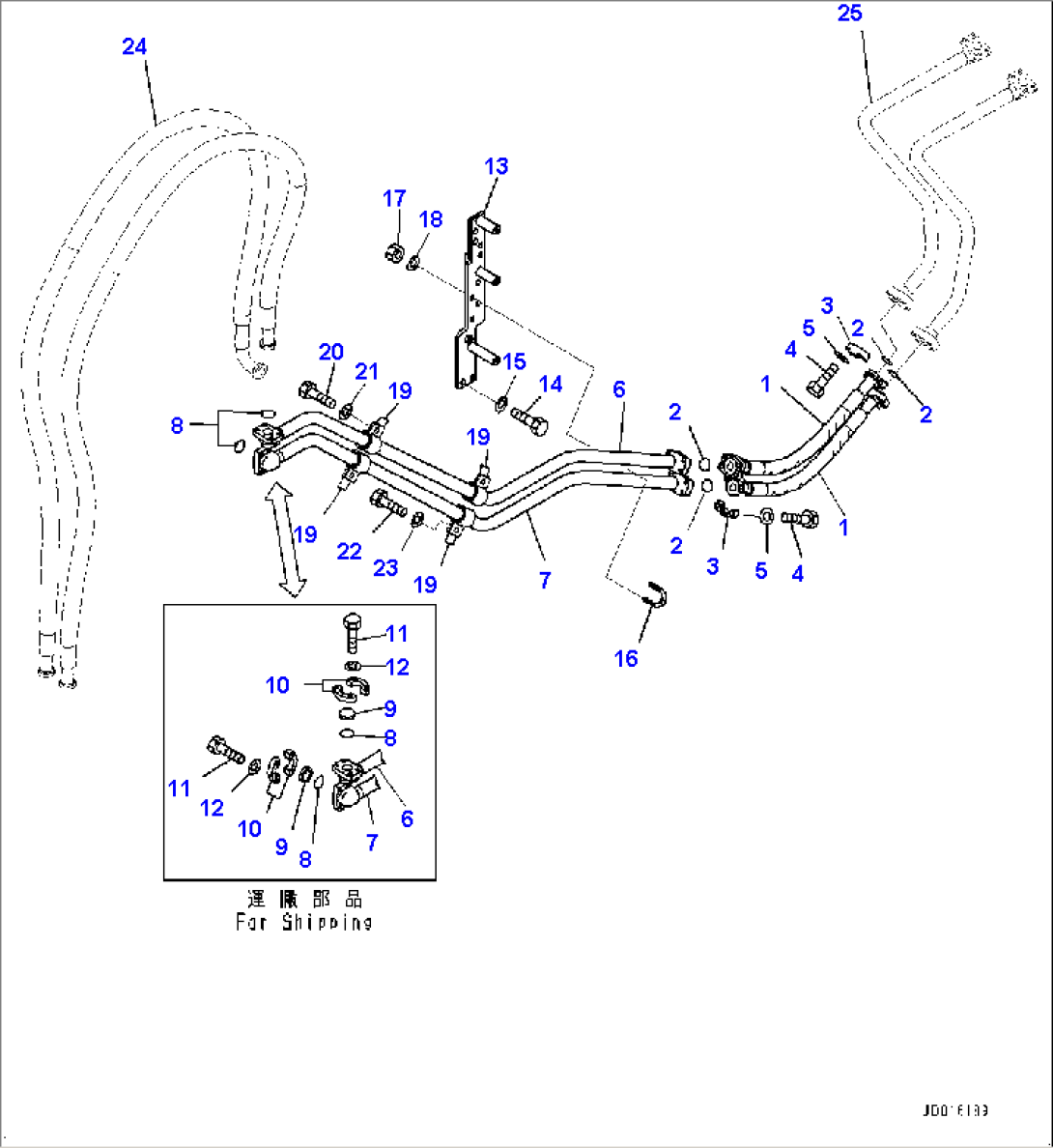

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07099-01006 | Hose, Flange Type | 1006- | |
| 2 | 07000-13032 | O-ring | 1006- | |
| 3 | 07371-31049 | Flange, Split | 1006- | |
| 4 | 07372-21035 | Bolt | 1006- | |
| 5 | 01643-51032 | Washer | 1006- | |
| 6 | 154-969-3121 | Tube | 1006- | |
| 7 | 154-969-3131 | Tube | 1006- | |
| 8 | 07000-13032 | O-ring | 1006- | |
| 9 | 07378-11000 | Head | 1006- | |
| 10 | 07371-31049 | Flange, Split | 1006- | |
| 11 | 07372-21035 | Bolt | 1006- | |
| 12 | 01643-51032 | Washer | 1006- | |
| 13 | 154-969-3212 | Bracket | 1006- | |
| 14 | 01010-81230 | Bolt | 1006- | |
| 15 | 01643-31232 | Washer | 1006- | |
| 16 | 07283-33442 | Clip, Pipe | 1006- | |
| 17 | 01597-01009 | Nut | 1006- | |
| 18 | 01643-31032 | Washer | 1006- | |
| 19 | 150-49-11630 | Clamp | 1006- | |
| 20 | 01010-81230 | Bolt | 1006- | |
| 21 | 01643-31232 | Washer | 1006- | |
| 22 | 01010-81240 | Bolt | 1006- | |
| 23 | 01643-31232 | Washer | 1006- | |
| 24 | (154-969-7390) | Hose | - | |
| 25 | (154-969-3152) | Tube | - |
