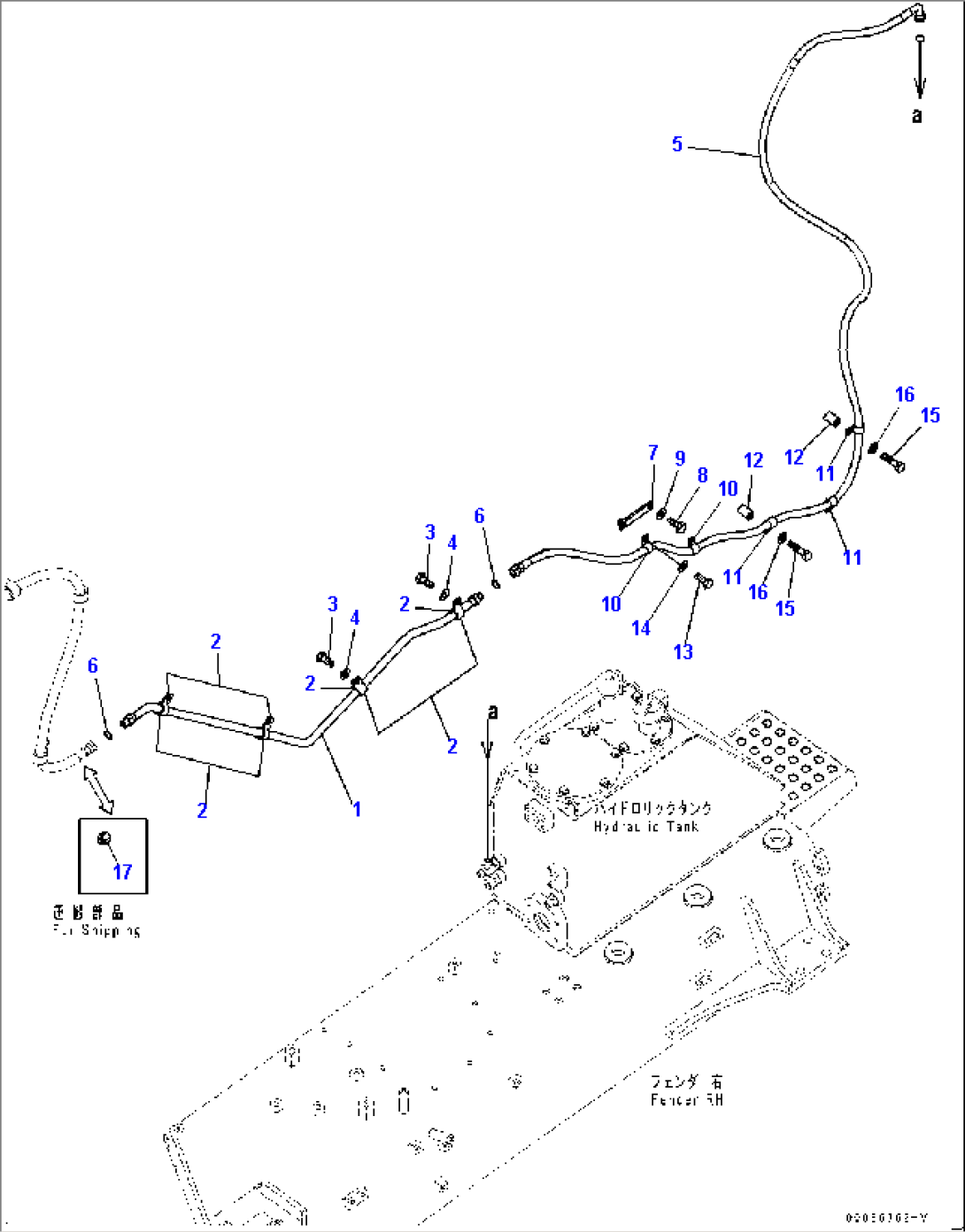

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-969-3891 | Tube | 1006- | |
| 2 | 154-969-3970 | Clamp | 1006- | |
| 3 | 01010-81230 | Bolt | 1006- | |
| 4 | 01643-31232 | Washer | 1006- | |
| 5 | 154-969-7311 | Hose | 1006- | |
| 6 | 02896-11012 | O-ring | 1006- | |
| 7 | 17M-49-42331 | Bracket | 1006- | |
| 8 | 01010-81230 | Bolt | 1006- | |
| 9 | 01643-31232 | Washer | 1006- | |
| 10 | 04434-51912 | Clip | 1006- | |
| 11 | 04434-52112 | Clip | 1006- | |
| 12 | 20Y-03-11220 | Collar | 1006- | |
| 13 | 01010-81230 | Bolt | 1006- | |
| 14 | 01643-31232 | Washer | 1006- | |
| 15 | 01010-81265 | Bolt | 1006- | |
| 16 | 01643-31232 | Washer | 1006- | |
| 17 | 02789-00422 | Plug, Face Seal Type | 1006- |
