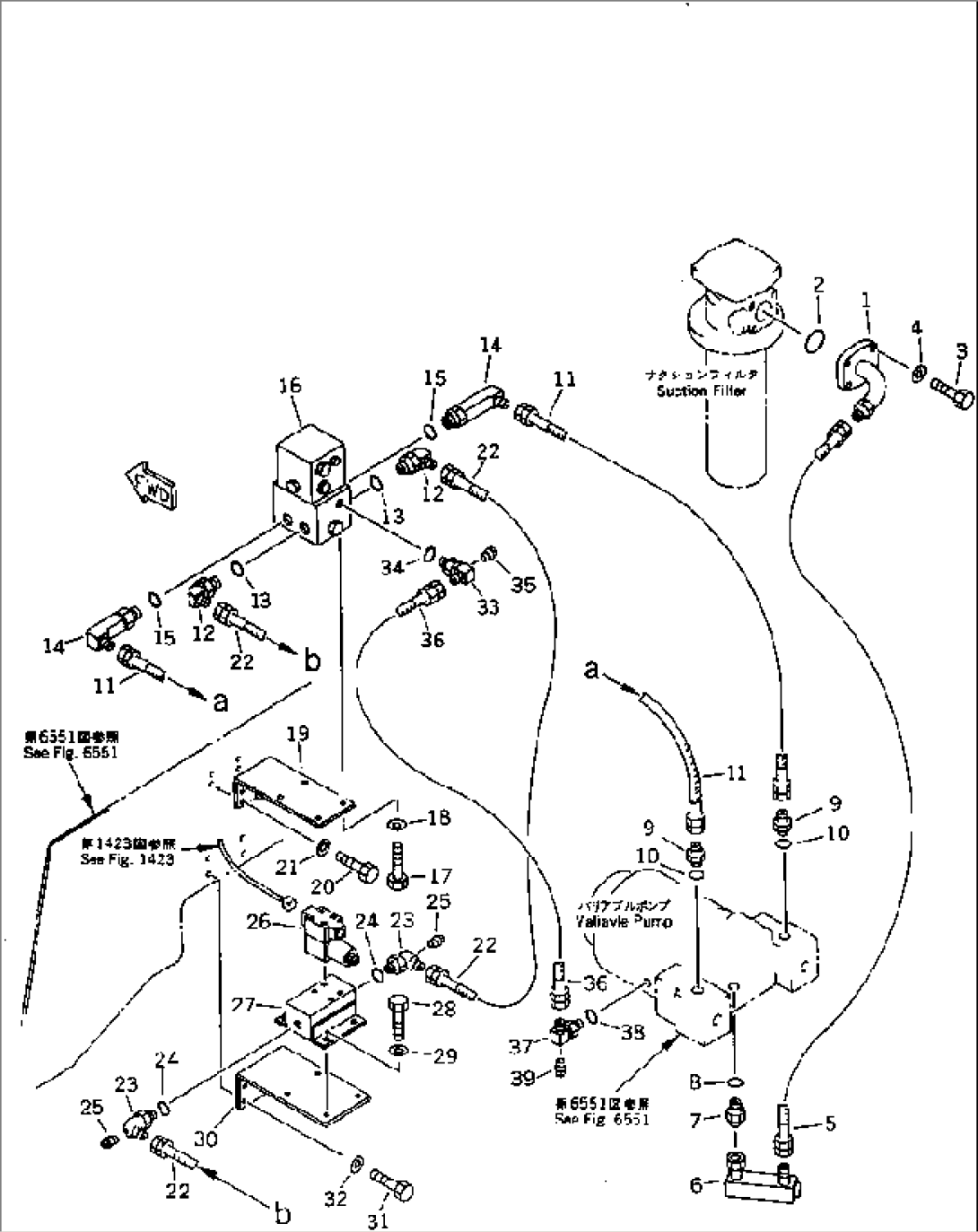

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | KZ10-01-1310 | TUBE | 1001- | |
| 2 | 07000-12060 | O-RING | 1001- | |
| 3 | 01010-51240 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 07102-21014 | HOSE | 1001- | |
| 6 | KZ10-01-1320 | JOINT | 1001- | |
| 7 | 235-60-15460 | NIPPLE | 1001- | |
| 8 | 235-60-15480 | O-RING | 1001- | |
| 9 | 07230-10628 | UNION | 1001- | |
| 10 | 07002-12434 | O-RING | 1001- | |
| 11 | KZ10-01-1350 | HOSE | 1001- | |
| 12 | 262-60-24850 | ELBOW | 1001- | |
| 13 | 235-60-15480 | O-RING | 1001- | |
| 14 | 262-60-24870 | ELBOW | 1001- | |
| 15 | 235-60-15480 | O-RING | 1001- | |
| 16 | (262-60-27300) | VALVE ASS'Y,FLASHING (SEE FIG.6217) | 1001- | |
| 17 | 02010-70625 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | KZ10-01-1360 | BRACKET | 1001- | |
| 20 | 01010-51025 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 07096-00406 | HOSE | 1001- | |
| 23 | 07235-50422 | ELBOW | 1001- | |
| 24 | 07002-12034 | O-RING | 1001- | |
| 25 | 07042-20108 | PLUG | 1001- | |
| 26 | 262-60-27700 | VALVE ASS'Y,SOLENOID | 1001- | |
| 27 | 262-60-24840 | BLOCK | 1001- | |
| 28 | 01010-51020 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | KZ10-01-1370 | BRACKET | 1001- | |
| 31 | 01010-51025 | BOLT | 1001- | |
| 32 | 01643-31032 | WASHER | 1001- | |
| 33 | 234-40-33240 | ELBOW | 1001- | |
| 34 | 234-40-33270 | O-RING | 1001- | |
| 35 | 07042-20108 | PLUG | 1001- | |
| 36 | 07102-20609 | HOSE | 1001- | |
| 37 | 234-40-33240 | ELBOW | 1001- | |
| 38 | 234-40-33270 | O-RING | 1001- | |
| 39 | 07042-20108 | PLUG | 1001- |
