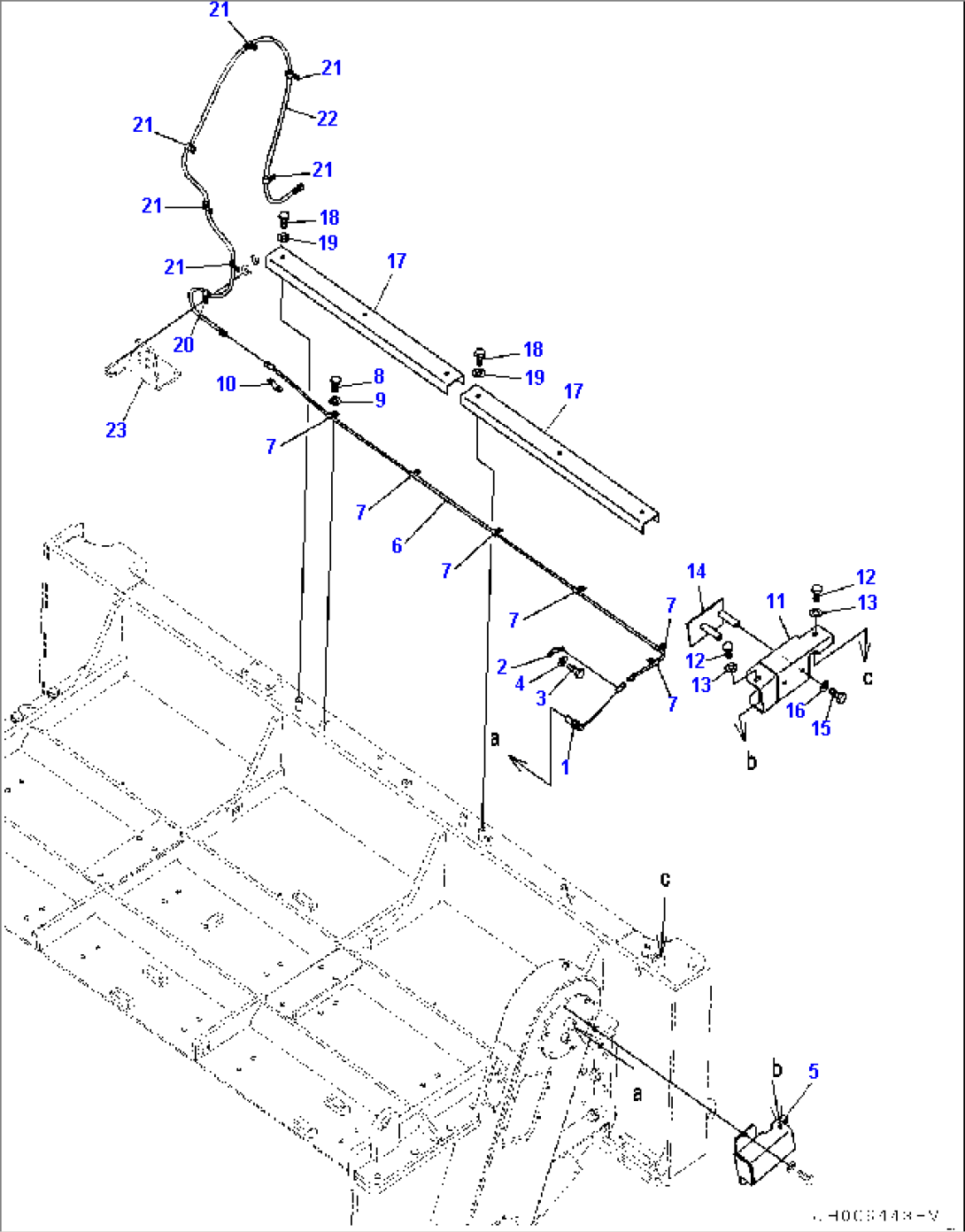

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-93-2330 | Sensor, Magnetic Pick-Up | 1006- | |
| 2 | 08193-21012 | Clip | 1006- | |
| 3 | 01010-81220 | Bolt | 1006- | |
| 4 | 01643-31232 | Washer | 1006- | |
| 5 | 154-969-5481 | Cover | 1006- | |
| 6 | 154-969-4322 | Wiring Harness | 1006- | |
| 7 | 04434-51312 | Clip | 1006- | |
| 8 | 01010-81225 | Bolt | 1006- | |
| 9 | 01643-31232 | Washer | 1006- | |
| 10 | 08193-21012 | Clip | 1006- | |
| 11 | 154-969-5592 | Cover | 1006- | |
| 12 | 01010-81230 | Bolt | 1006- | |
| 13 | 01643-31232 | Washer | 1006- | |
| 14 | 154-969-5660 | Cover | 1006- | |
| 15 | 01010-81230 | Bolt | 1006- | |
| 16 | 01643-31232 | Washer | 1006- | |
| 17 | 154-969-5291 | Cover | 1006- | |
| 18 | 01010-81230 | Bolt | 1006- | |
| 19 | 01643-31232 | Washer | 1006- | |
| 20 | 04434-51312 | Clip | 1006- | |
| 21 | 04434-51512 | Clip | 1006- | |
| 22 | 154-969-4530 | Wiring Harness | 1006- | |
| 23 | (154-969-3821) | Bracket | - |
