| Item | Part No. | Part Name | Qty | Serial No. |

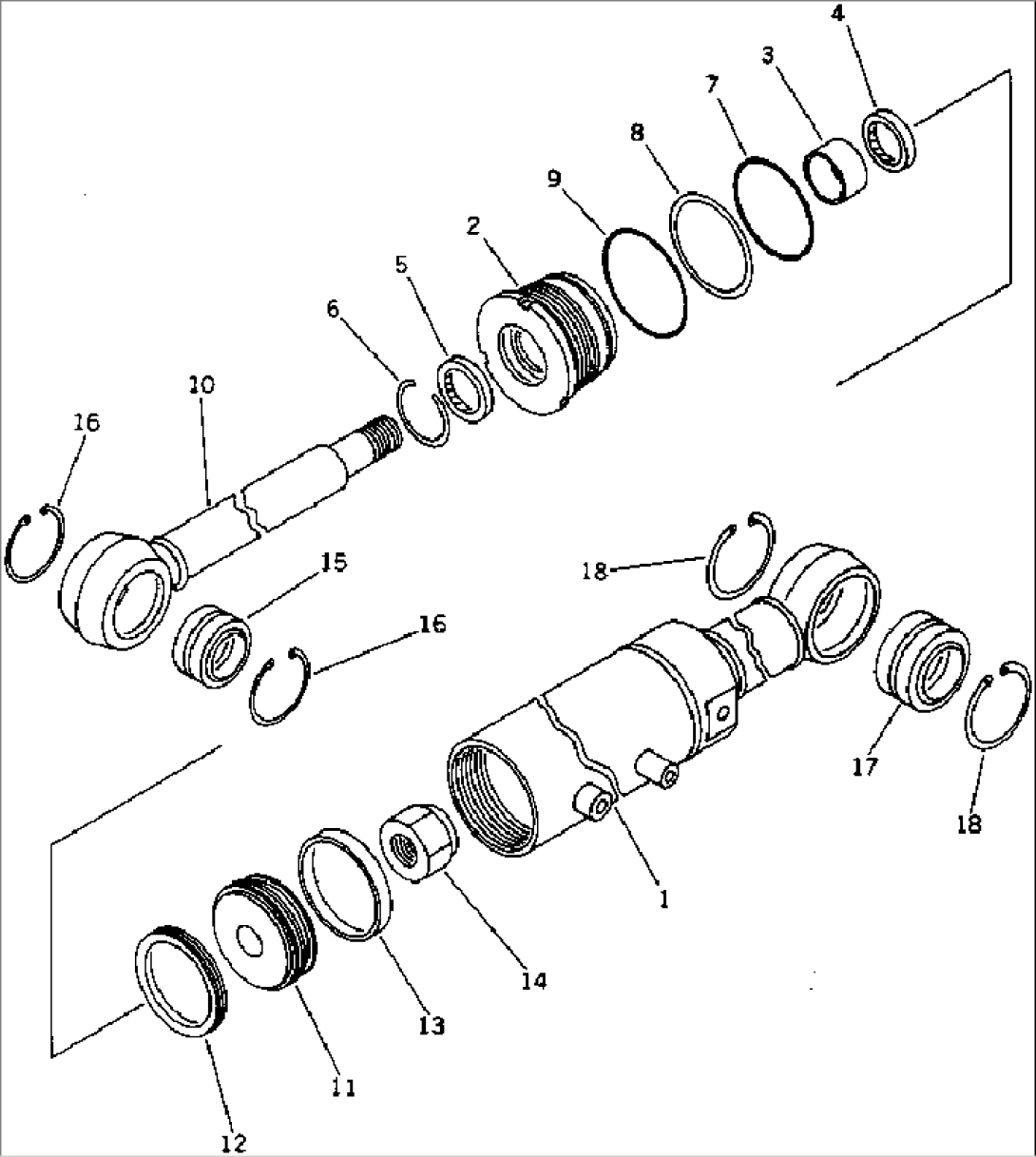

| 262-63-01030 | CYLINDER ASS'Y,ROTOR SWING | 10001- | ||
| 1 | 262-63-53140 | CYLINDER | 10001- | |
| 2 | 707-29-90810 | HEAD,CYLINDER | 10001- | |
| 3 | 07177-04025 | BUSHING | 10001- | |
| 4 | 707-51-40210 | PACKING,ROD | 10001- | |
| 5 | 198-63-75190 | SEAL,DUST | 10001- | |
| 6 | 07179-12052 | RING,SNAP | 10001- | |
| 7 | 07000-12085 | O-RING | 10001- | |
| 8 | 07146-02086 | RING,BACK-UP | 10001- | |
| 9 | 07000-02090 | O-RING | 10001- | |
| 10 | 262-63-53120 | ROD,PISTON | 10001- | |
| 11 | 707-36-90930 | PISTON | 10001- | |
| 12 | 707-44-90070 | RING,PISTON | 10001- | |
| 13 | 07156-00912 | RING,WEAR | 10001- | |
| 14 | 07165-13033 | NUT | 10001- | |
| 15 | 114-63-55170 | BUSHING | 10001- | |
| 16 | 04065-06220 | RING,SNAP | 10001- | |
| 17 | 707-46-05130 | BUSHING | 10001- | |
| 18 | 04065-07525 | RING,SNAP | 10001- |
