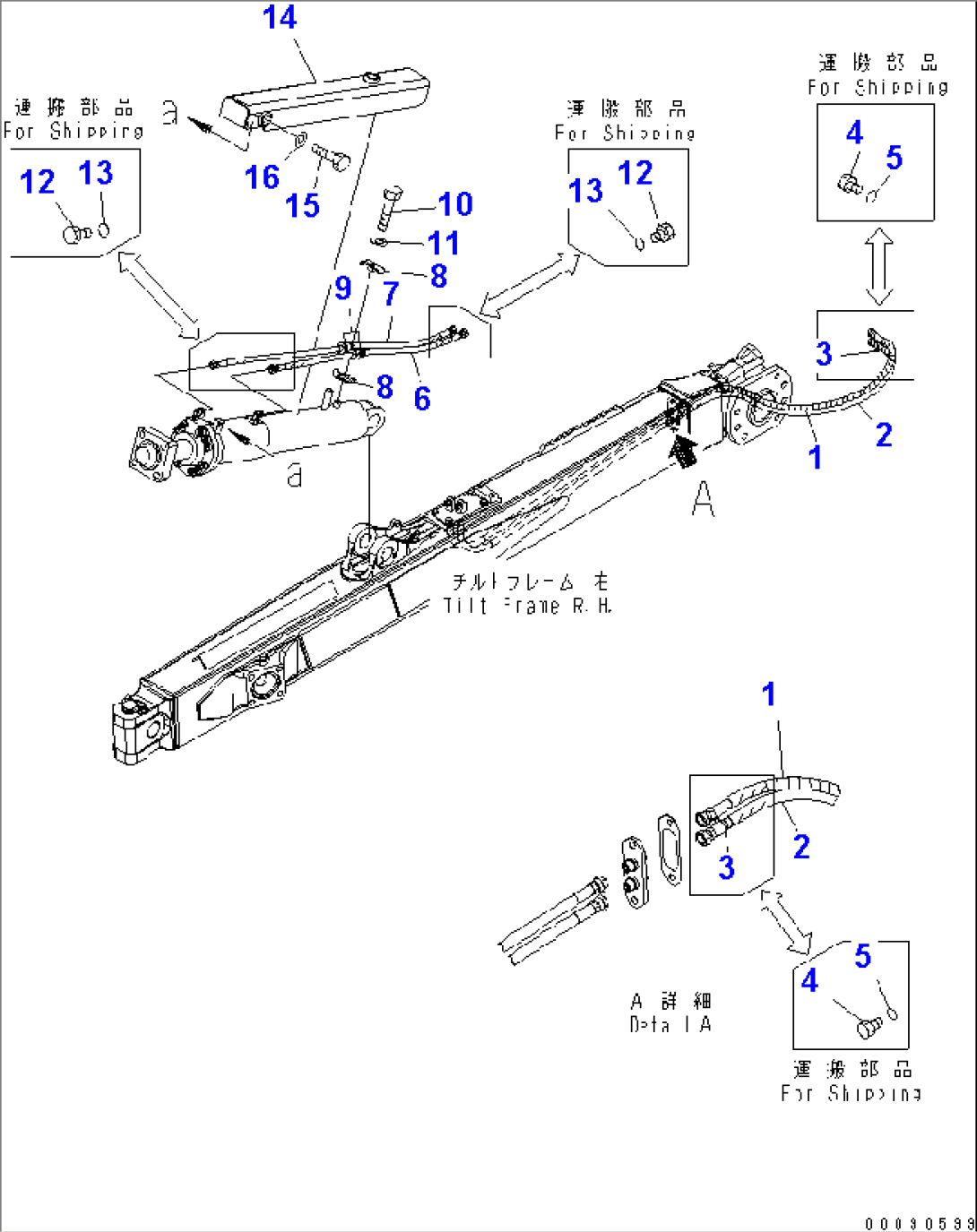

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-71-71811 | HOSE | 1005- | |
| 2 | 154-969-5870 | HOSE | 1005- | |
| 3 | 20Y-62-22790 | BAND, RED | 1005- | |
| 4 | 07376-70422 | PLUG | 1001- | |
| 5 | 02896-11012 | O-RING | 1001- | |
| 6 | 02765-00411 | HOSE | 1001- | |
| 7 | 02765-00414 | HOSE | 1001- | |
| 8 | 07094-30417 | CLAMP | 1001- | |
| 9 | 07095-00419 | CUSHION | 1001- | |
| 10 | 01010-81265 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 07376-70422 | PLUG | 1001- | |
| 13 | 02896-11012 | O-RING | 1001- | |
| 14 | 154-969-5850 | COVER | 1005- | |
| 15 | 01010-81635 | BOLT | 1001- | |
| 16 | 01643-31645 | WASHER | 1001- |
