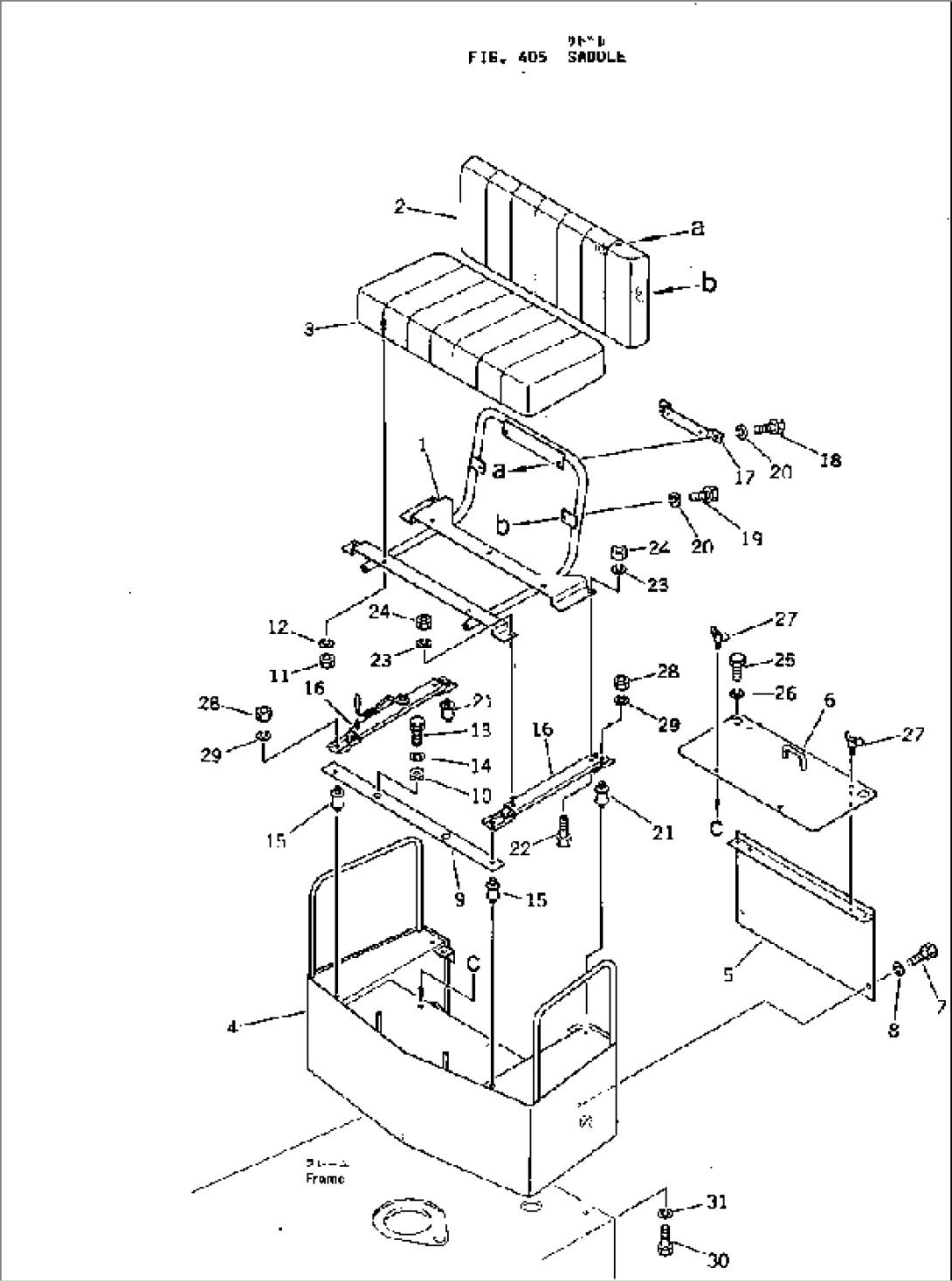

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2691-6-35200 | BASE | 1001- | |
| 2 | 257-60-15510 | SEAT | 1001- | |
| 3 | 257-60-15410 | SEAT | 1001- | |
| 4 | 266-60-55300 | BASE | 1001- | |
| 5 | 266-60-55600 | COVER | 1001- | |
| 6 | 266-60-55700 | COVER | 1001- | |
| 7 | 01010-30816 | BOLT | 1001- | |
| 8 | 01602-00825 | WASHER | 1001- | |
| 9 | 266-60-55120 | BRACKET | 1001- | |
| 10 | 2691-6-35140 | WASHER | 1001- | |
| 11 | 01580-01008 | NUT | 1001- | |
| 12 | 01602-01030 | WASHER | 1001- | |
| 13 | 01010-30816 | BOLT | 1001- | |
| 14 | 01602-00825 | WASHER | 1001- | |
| 15 | 259-60-16210 | CUSHION | 1001- | |
| 16 | 2691-6-35300 | ADJUSTER ASS'Y | 1001- | |
| 17 | 258-60-15110 | BRACKET | 1001- | |
| 18 | 01010-30825 | BOLT | 1001- | |
| 19 | 01010-30820 | BOLT | 1001- | |
| 20 | 01602-00825 | WASHER | 1001- | |
| 21 | 257-20-14310 | CUSHION | 1001- | |
| 22 | 01010-30820 | BOLT | 1001- | |
| 23 | 01602-00825 | WASHER | 1001- | |
| 24 | 01580-00806 | NUT | 1001- | |
| 25 | 01010-30816 | BOLT | 1001- | |
| 26 | 01602-00825 | WASHER | 1001- | |
| 27 | 01434-00815 | BOLT¤ WING | 1001- | |
| 28 | 01580-00806 | NUT | 1001- | |
| 29 | 01602-00825 | WASHER | 1001- | |
| 30 | 01010-31020 | BOLT | 1001- | |
| 31 | 01602-01030 | WASHER | 1001- |
