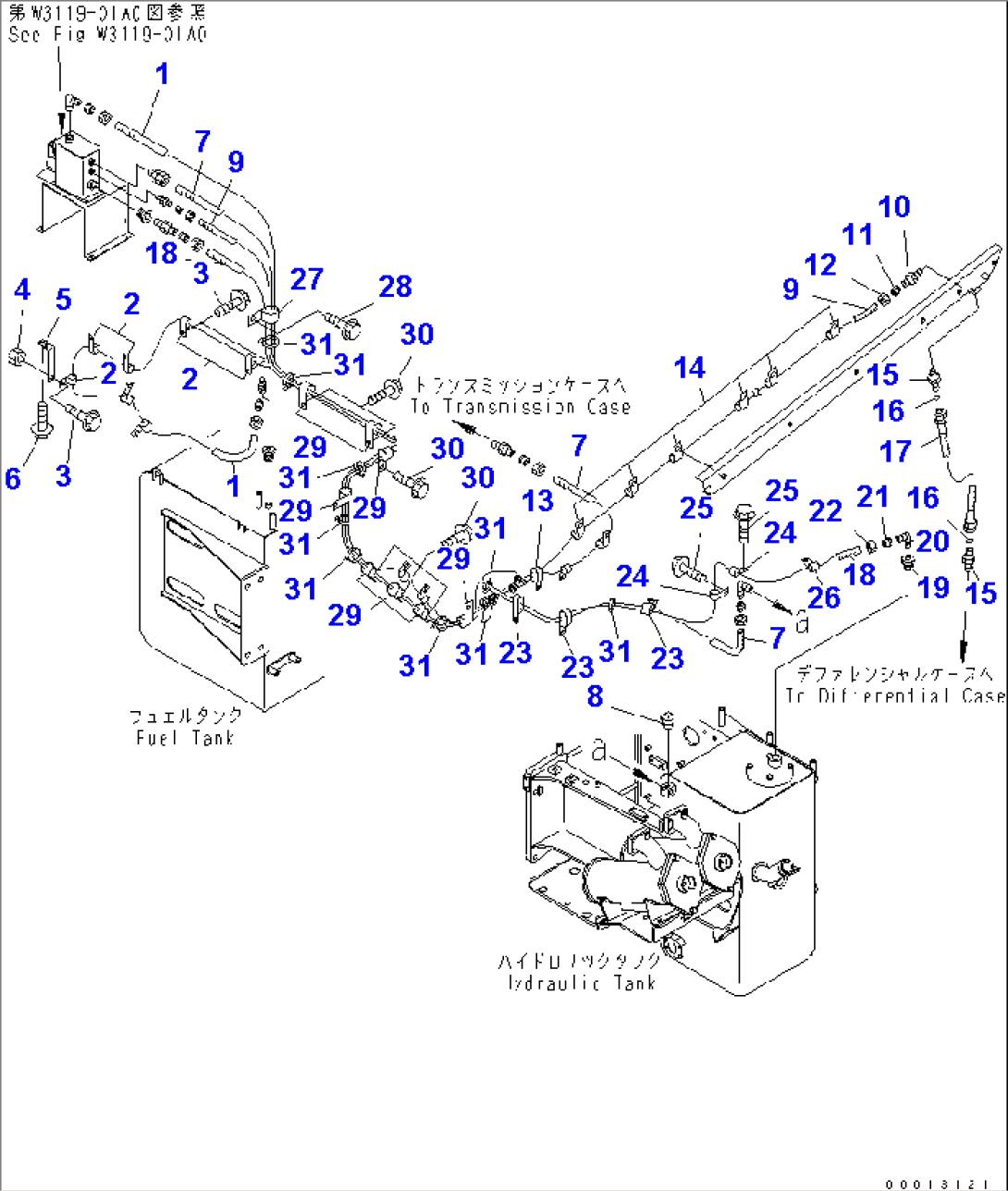

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07822-00837 | TUBE | 7001- | |
| 2 | 04434-51310 | CLIP | 7001- | |
| 3 | 01435-01016 | BOLT | 7001- | |
| 4 | 01580-01008 | NUT | 7001- | |
| 5 | 283-03-31530 | PLATE | 7001- | |
| 6 | 01435-01020 | BOLT | 7001- | |
| 7 | 07822-00830 | TUBE | 7001- | |
| 8 | 07042-30312 | PLUG | 7001- | |
| 9 | 07822-00657 | TUBE | 7001- | |
| 10 | 07836-00613 | CONNECTOR | 7001- | |
| 11 | 07831-00612 | SLEEVE | 7001- | |
| 12 | 07832-00614 | NUT | 7001- | |
| 13 | 04435-51310 | CLIP | 7001- | |
| 14 | 04434-51010 | CLIP | 7001- | |
| 15 | 20U-62-42230 | CONNECTOR | 7001- | |
| 16 | 02896-21009 | O-RING | 7001- | |
| 17 | 02762-003A8 | HOSE | 7001- | |
| 18 | 07822-00851 | TUBE | 7001- | |
| 19 | 07326-10603 | ADAPTER | 7001- | |
| 20 | 07834-00817 | ELBOW | 7001- | |
| 21 | 07831-00813 | SLEEVE | 7001- | |
| 22 | 07832-00817 | NUT | 7001- | |
| 23 | 04435-51310 | CLIP | 7001- | |
| 24 | 04434-51310 | CLIP | 7001- | |
| 25 | 01435-01016 | BOLT | 7001- | |
| 26 | 04434-51312 | CLIP | 7001- | |
| 27 | 04434-53211 | CLIP | 7001- | |
| 28 | 01435-01016 | BOLT | 7001- | |
| 29 | 04434-52711 | CLIP | 7001- | |
| 30 | 01435-01016 | BOLT | 7001- | |
| 31 | 08034-00823 | BAND | 7001- |
