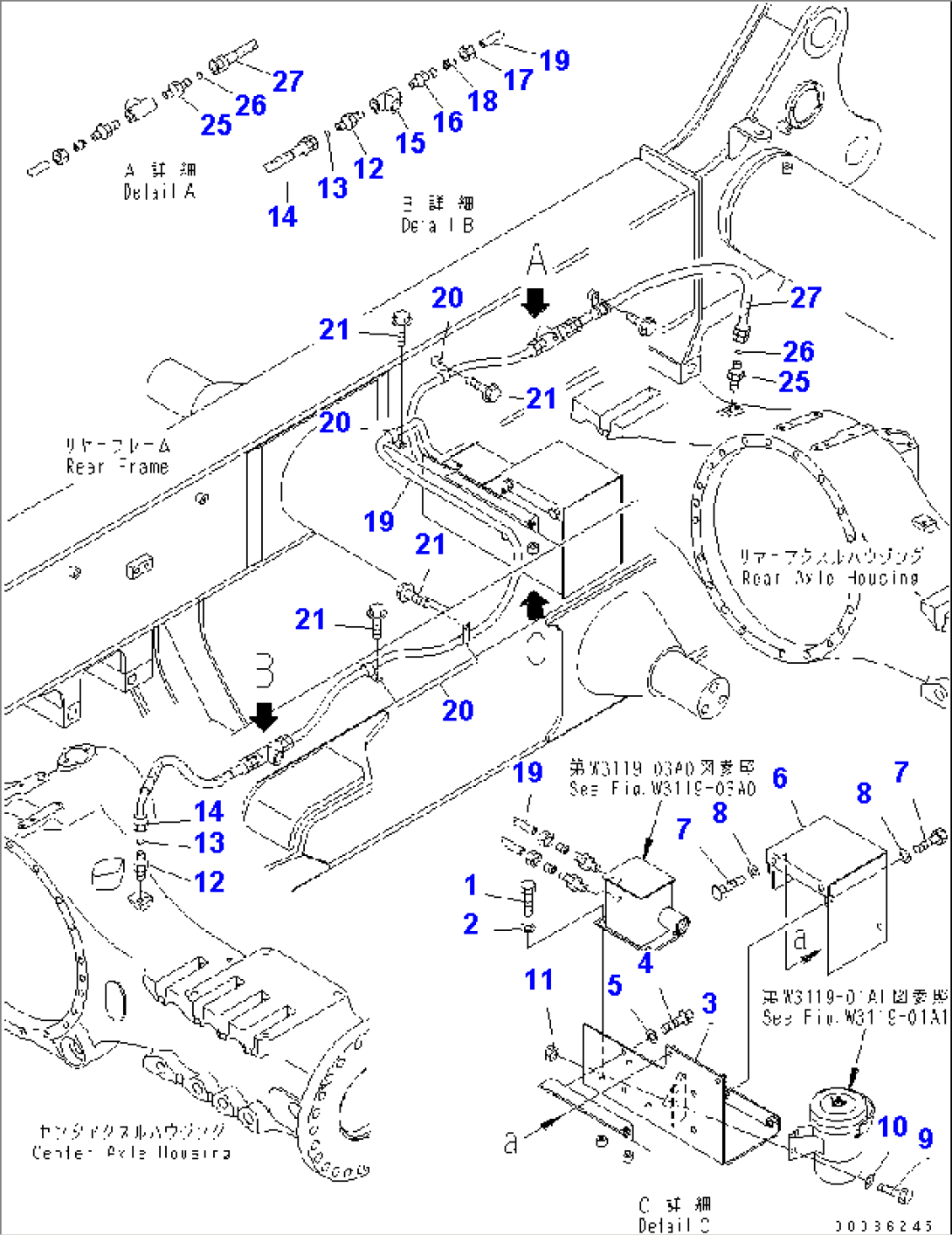

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81020 | BOLT | 1089- | |
| 2 | 01643-31032 | WASHER | 1001- | |
| 3 | 56C-92-12190 | BRACKET | 1001- | |
| 4 | 01010-81020 | BOLT | 1089- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 56C-92-12210 | COVER | 1001- | |
| 7 | 01010-81025 | BOLT | 1089- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 01010-81020 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 01580-11008 | NUT | 1001- | |
| 12 | 20U-62-42230 | CONNECTOR | 1001- | |
| 13 | 02896-21009 | O-RING | 1001- | |
| 14 | 02763-00306 | HOSE | 1001- | |
| 15 | 07324-10200 | TEE | 1001- | |
| 16 | 07836-00613 | CONNECTOR | 1001- | |
| 17 | 07832-00614 | NUT | 1001- | |
| 18 | 07831-00612 | SLEEVE | 1001- | |
| 19 | 07822-00630 | TUBE | 1089- | |
| 20 | 04434-51010 | CLIP | 1089- | |
| 21 | 01435-01016 | BOLT | 1089- | |
| 25 | 20U-62-42230 | CONNECTOR | 1001- | |
| 26 | 02896-21009 | O-RING | 1001- | |
| 27 | 02762-003A5 | HOSE | 1001- |
