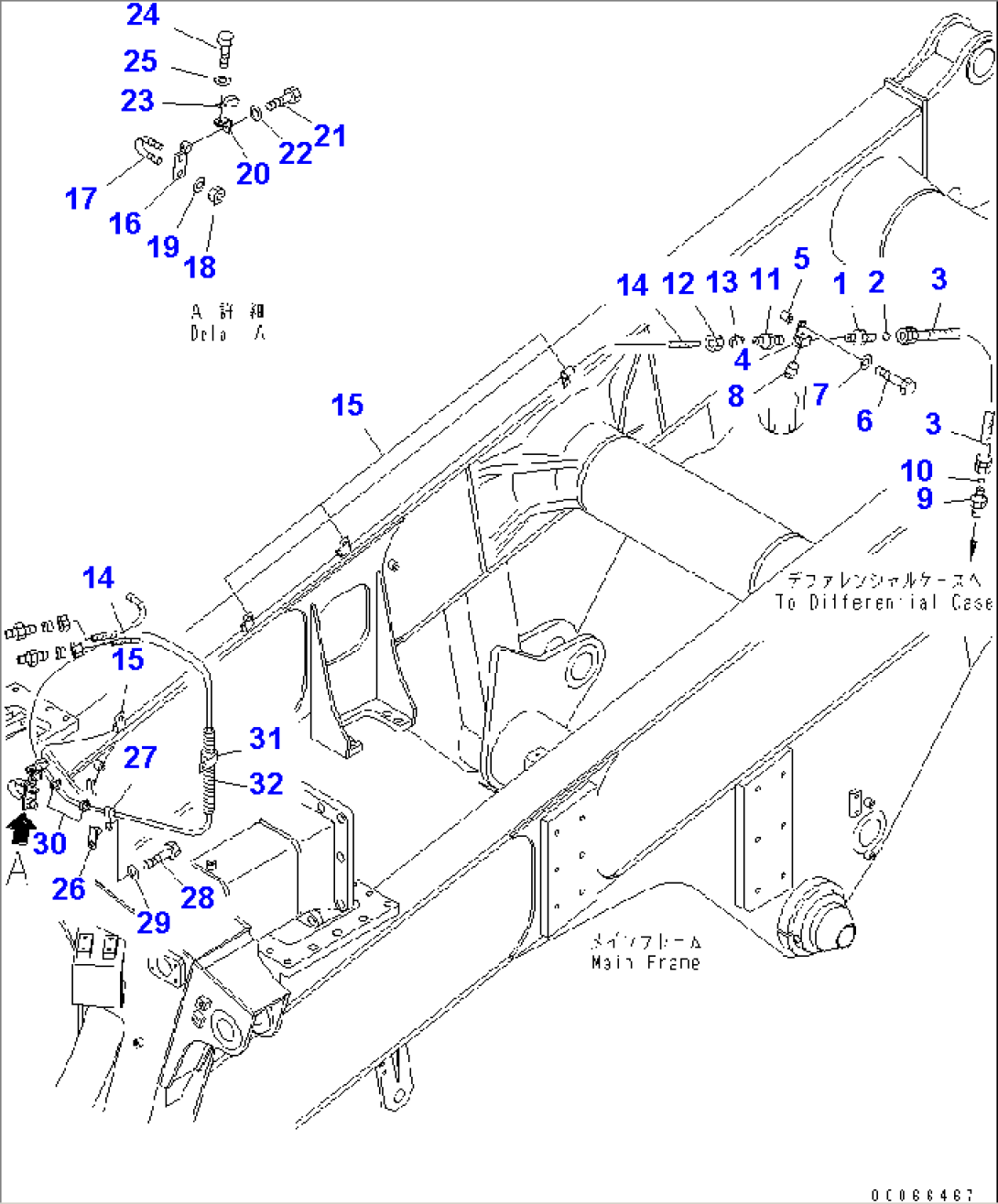

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-42230 | CONNECTOR | 7001- | |
| 2 | 02896-21009 | O-RING | 7001- | |
| 3 | 02762-003A6 | HOSE | 7001- | |
| 4 | 56B-33-12670 | BRACKET | 7001- | |
| 5 | 419-15-17541 | SPACER | 7001- | |
| 6 | 01010-81045 | BOLT | 7001- | |
| 7 | 01643-31032 | WASHER | 7001- | |
| 8 | 07042-30211 | PLUG | 7001- | |
| 9 | 20U-62-42230 | CONNECTOR | 7001- | |
| 10 | 02896-21009 | O-RING | 7001- | |
| 11 | 07836-00613 | CONNECTOR | 7001- | |
| 12 | 07832-00614 | NUT | 7001- | |
| 13 | 07831-00612 | SLEEVE | 7001- | |
| 14 | 07822-00643 | TUBE | 7001- | |
| 15 | 04434-51010 | CLIP | 7001- | |
| 16 | 566-61-82390 | PLATE | 7001- | |
| 17 | 07283-33442 | CLIP | 7001- | |
| 18 | 01597-01009 | NUT | 7001- | |
| 19 | 01643-31032 | WASHER | 7001- | |
| 20 | 42A-16-11210 | PLATE | 7001- | |
| 21 | 01010-81020 | BOLT | 7001- | |
| 22 | 01643-31032 | WASHER | 7001- | |
| 23 | 04435-51310 | CLIP | 7001- | |
| 24 | 01010-81020 | BOLT | 7001- | |
| 25 | 01643-31032 | WASHER | 7001- | |
| 26 | 426-06-11570 | BRACKET | 7001- | |
| 27 | 04435-51310 | CLIP | 7001- | |
| 28 | 01010-81020 | BOLT | 7001- | |
| 29 | 01643-31032 | WASHER | 7001- | |
| 30 | 08034-20519 | BAND | 7001- | |
| 31 | 04434-53412 | CLIP | 7001- | |
| 32 | 419-U45-1220 | PROTECTOR | 7001- |
