| Item | Part No. | Part Name | Qty | Serial No. |

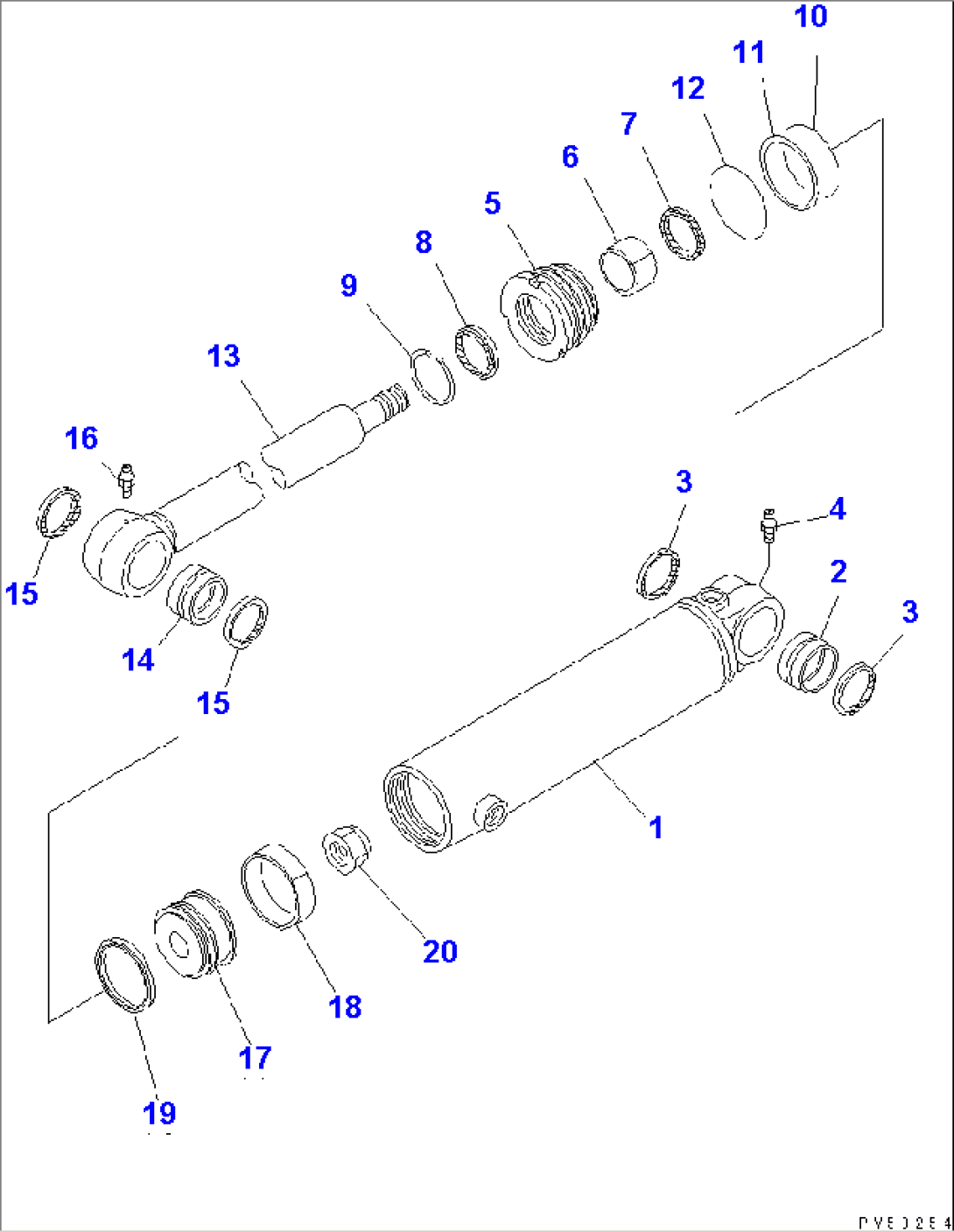

| 23A-63-32102 | CYLINDER ASS'Y | 10001-@ | ||
| 1 | 23A-63-32141 | CYLINDER | 10001-@ | |
| 2 | 07144-10404 | BUSHING | 10001-@ | |
| 3 | 07145-00040 | SEAL,DUST | 10001-@ | |
| 4 | 07020-00000 | FITTING,GREASE | 10001-@ | |
| 5 | 707-29-80940 | HEAD,CYLINDER | 10001-@ | |
| 6 | 07177-05030 | BUSHING | 10001-@ | |
| 7 | 707-51-50210 | PACKING,ROD | 10001-@ | |
| 8 | 176-63-92240 | SEAL,DUST | 10001-@ | |
| 9 | 07179-12062 | RING,SNAP | 10001-@ | |
| 10 | 07000-12075 | O-RING | 10001-@ | |
| 11 | 07001-02075 | RING,BACK-UP | 10001-@ | |
| 12 | 07000-02080 | O-RING | 10001-@ | |
| 13 | 23A-63-32121 | ROD,PISTON | 10001-@ | |
| 14 | 07144-10505 | BUSHING | 10001-@ | |
| 15 | 07145-00050 | SEAL,DUST | 10001-@ | |
| 16 | 07020-00000 | FITTING,GREASE | 10001-@ | |
| 17 | 707-36-80910 | PISTON | 10001-@ | |
| 18 | 07155-00820 | RING,WEAR | 10001-@ | |
| 19 | 707-44-80070 | RING,PISTON | 10001-@ | |
| 20 | 07165-12729 | NUT,NYLON | 10001-@ |
