| Item | Part No. | Part Name | Qty | Serial No. |

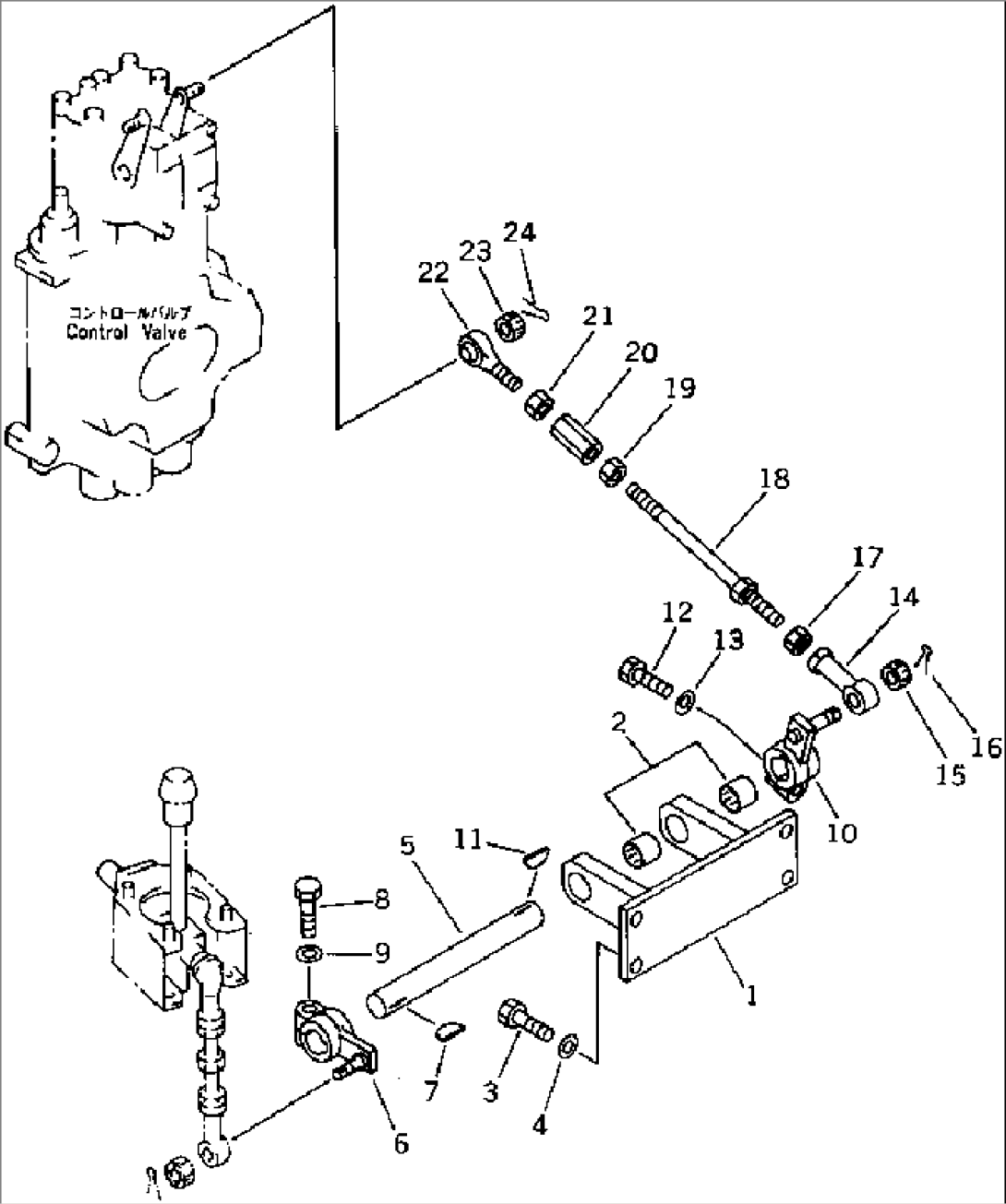

| G-1 | (\8\154-78-X5130) | SCRAPER LINKAGE G. | 3001- | |
| ==================== | ||||
| 1 | 154-78-45150 | BRACKET | 3001- | |
| 2 | 195-61-34140 | BEARING | 3001- | |
| 3 | 01010-51230 | BOLT | 3001- | |
| 4 | 01643-31232 | WASHER | 3001- | |
| 5 | 154-78-45160 | SHAFT | 3001- | |
| 6 | 154-78-45170 | LEVER | 3001- | |
| 7 | 04010-00732 | KEY | 3001- | |
| 8 | 01010-51245 | BOLT | 3001- | |
| 9 | 01643-31232 | WASHER | 3001- | |
| 10 | 154-78-45170 | LEVER | 3001- | |
| 11 | 04010-00732 | KEY | 3001- | |
| 12 | 01010-51245 | BOLT | 3001- | |
| 13 | 01643-31232 | WASHER | 3001- | |
| 14 | 04250-81265 | END | 3001- | |
| 15 | 01593-11210 | NUT | 3001- | |
| 16 | 04050-13020 | PIN,COTTER | 3001- | |
| 17 | 01582-11210 | NUT | 3001- | |
| 18 | 04248-31222 | ROD | 3001- | |
| 19 | 01508-21207 | NUT | 3001- | |
| 20 | 176-76-27550 | JOINT | 3001- | |
| 21 | 01582-11210 | NUT | 3001- | |
| 22 | 04252-21269 | END | 3001- | |
| 23 | 01593-11210 | NUT | 3001- | |
| 24 | 04050-13020 | PIN,COTTER | 3001- | |
| ==================== |
