| Item | Part No. | Part Name | Qty | Serial No. |
| 709-92-27002 | VALVE ASS'Y | 3651- | ||
| \0\709-92-27001 | VALVE ASS'Y | 3513-3650 | ||
| 709-92-27000 | VALVE ASS'Y | 3001-3512 | ||

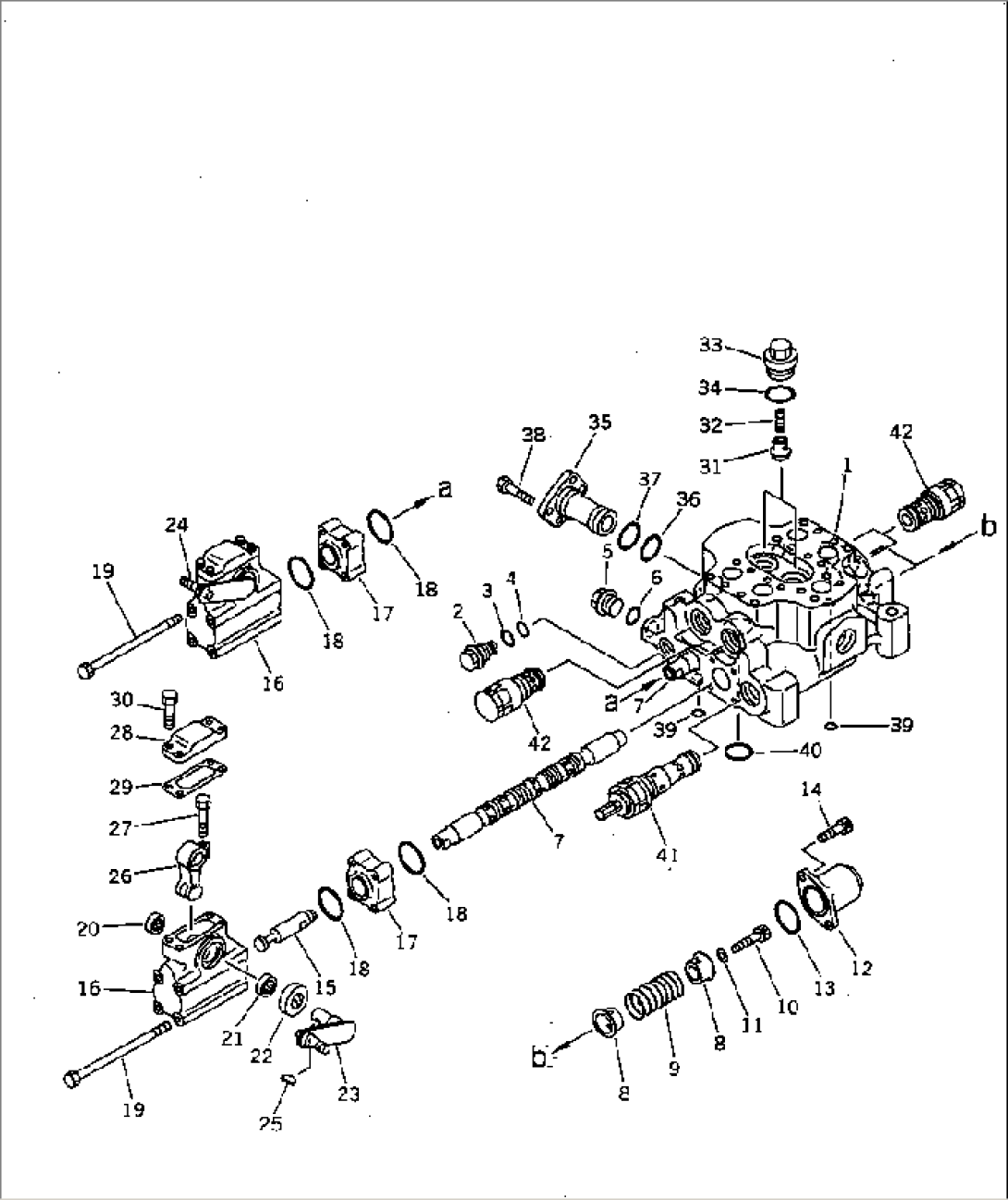

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6221 AND 6222. | ||||
| 1 | \6\ | BODY,VALVE | 3001- | |
| 2 | 700-22-11360 | PLUG | 3001- | |
| 3 | 07002-02434 | O-RING | 3001- | |
| 4 | 07000-02014 | O-RING | 3001- | |
| 5 | 700-22-11370 | PLUG | 3001- | |
| 6 | 07002-02434 | O-RING | 3001- | |
| 7 | \6\ | SPOOL | 3001- | |
| 8 | 700-93-11870 | RETAINER | 3001- | |
| 9 | 700-93-11880 | SPRING | 3001- | |
| 10 | 01252-31016 | BOLT | 3001- | |
| 11 | 01643-31032 | WASHER | 3001- | |
| 12 | 700-93-11920 | CASE | 3001- | |
| 13 | 07430-71380 | O-RING | 3001- | |
| 14 | 01252-30820 | BOLT | 3001- | |
| 15 | 700-91-11630 | JOINT | 3001- | |
| 16 | 700-93-11710 | CASE,LEVER | 3001- | |
| 17 | 700-91-11640 | PLATE | 3001- | |
| 18 | 07430-71380 | O-RING | 3001- | |
| 19 | 6138-11-4880 | BOLT | 3001- | |
| 20 | 700-93-11740 | BEARING | 3001- | |
| 21 | 700-93-11750 | BEARING | 3001- | |
| 22 | 700-93-11762 | SEAL,OIL | 3001- | |
| 23 | 700-91-11660 | LEVER | 3001- | |
| 24 | 700-91-11670 | LEVER | 3001- | |
| 25 | 04010-00416 | KEY | 3001- | |
| 26 | 700-93-11780 | LEVER | 3001- | |
| 27 | 01010-30825 | BOLT | 3001- | |
| 28 | 700-93-11790 | PLATE | 3001- | |
| 29 | 700-93-11811 | GASKET | 3651- | |
| \0\700-93-11810 | GASKET | 3001-3650 | ||
| 30 | 01010-30820 | BOLT | 3001- | |
| 31 | 700-93-11461 | VALVE,CHECK | 3001- | |
| 32 | 700-93-11471 | SPRING | 3001- | |
| 33 | 700-93-11481 | PLUG | 3001- | |
| 34 | 07002-13634 | O-RING | 3001- | |
| 35 | 700-91-11680 | FLANGE | 3513- | |
| 700-91-11650 | FLANGE | 3001-3512 | ||
| 36 | 07000-13032 | O-RING | 3001- | |
| 37 | 07000-03035 | O-RING | 3001- | |
| 38 | 01010-51025 | BOLT | 3001- | |
| 39 | 07000-02011 | O-RING | 3001- | |
| 40 | 07000-03035 | O-RING | 3001- | |
| 41 | (700-95-58000) | VALVE ASS'Y,RELIEF | 3513- | |
| (709-80-53100) | VALVE ASS'Y,RELIEF | 3001-3512 | ||
| 42 | (700-90-88000) | VALVE ASS'Y,SUCTION | 3001- |
