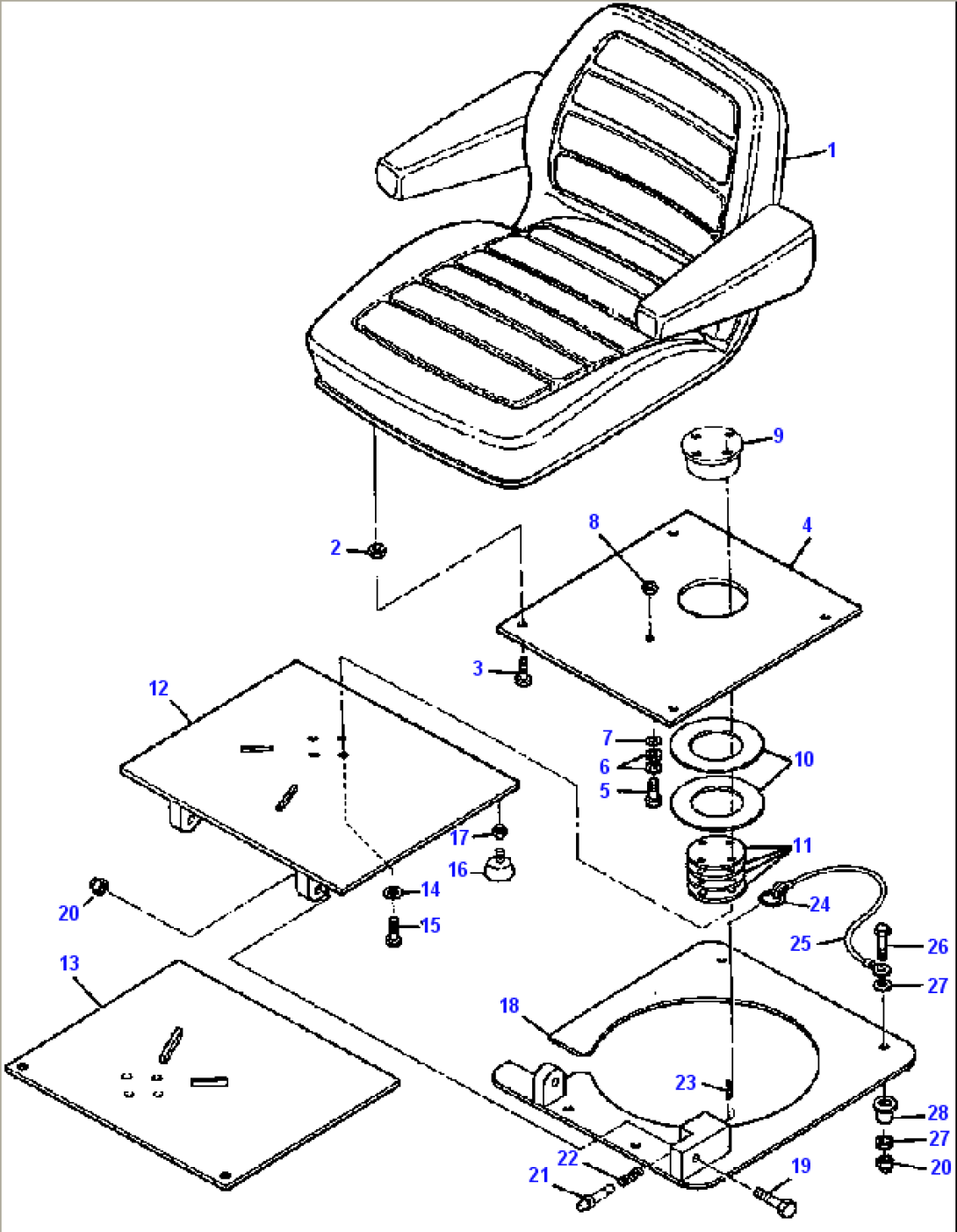

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SEAT ASSEMBLY (SEE PG 13-012) | |||
| 2 | 120 378 | NUT, HEX | ||
| 3 | 180 081 | BOLT | ||
| 4 | 1261 478 H2 | PLATE, SEAT MOUNTING | ||
| 5 | 25 492 R1 | BOLT | ||
| 6 | 25 552 R1 | WASHER, FLAT | ||
| 7 | 25 552 R1 | WASHER, FLAT | ||
| 25 533 R1 | WASHER, FLAT | |||
| 8 | 9413 977 | NUT, LOCK | ||
| 9 | 1250 011 H2 | PIVOT | ||
| 10 | 1250 013 H1 | BEARING, SWIVEL | ||
| 11 | 1266 866 H1 | SHIM | ||
| 12 | 1261 480 H91 | PLATE - L.H | ||
| 13 | 1261 479 H91 | PLATE - R.H | ||
| 14 | 28 422 R1 | WASHER, PLAIN | ||
| 15 | 180 120 | BOLT | ||
| 16 | 1234 674 H1 | BUMPER | ||
| 17 | 120 376 | NUT, HEX | ||
| 18 | 1258 926 H91 | PLATE WELDMENT | ||
| 19 | 180 137 | BOLT | ||
| 20 | 115 843 | NUT, LOCK | ||
| 21 | 1250 012 H1 | PIN | ||
| 22 | 8 536 H45 | SPRING | ||
| 23 | 18 607 R1 | PIN | ||
| 24 | 163 344 | RING, KEY | ||
| 25 | 161 930 H45 | CORD | ||
| 26 | 180 130 | BOLT | ||
| 27 | 28 422 R1 | WASHER, FLAT | ||
| 28 | 1258 878 H1 | NUT, WELL |
