| Item | Part No. | Part Name | Qty | Serial No. |

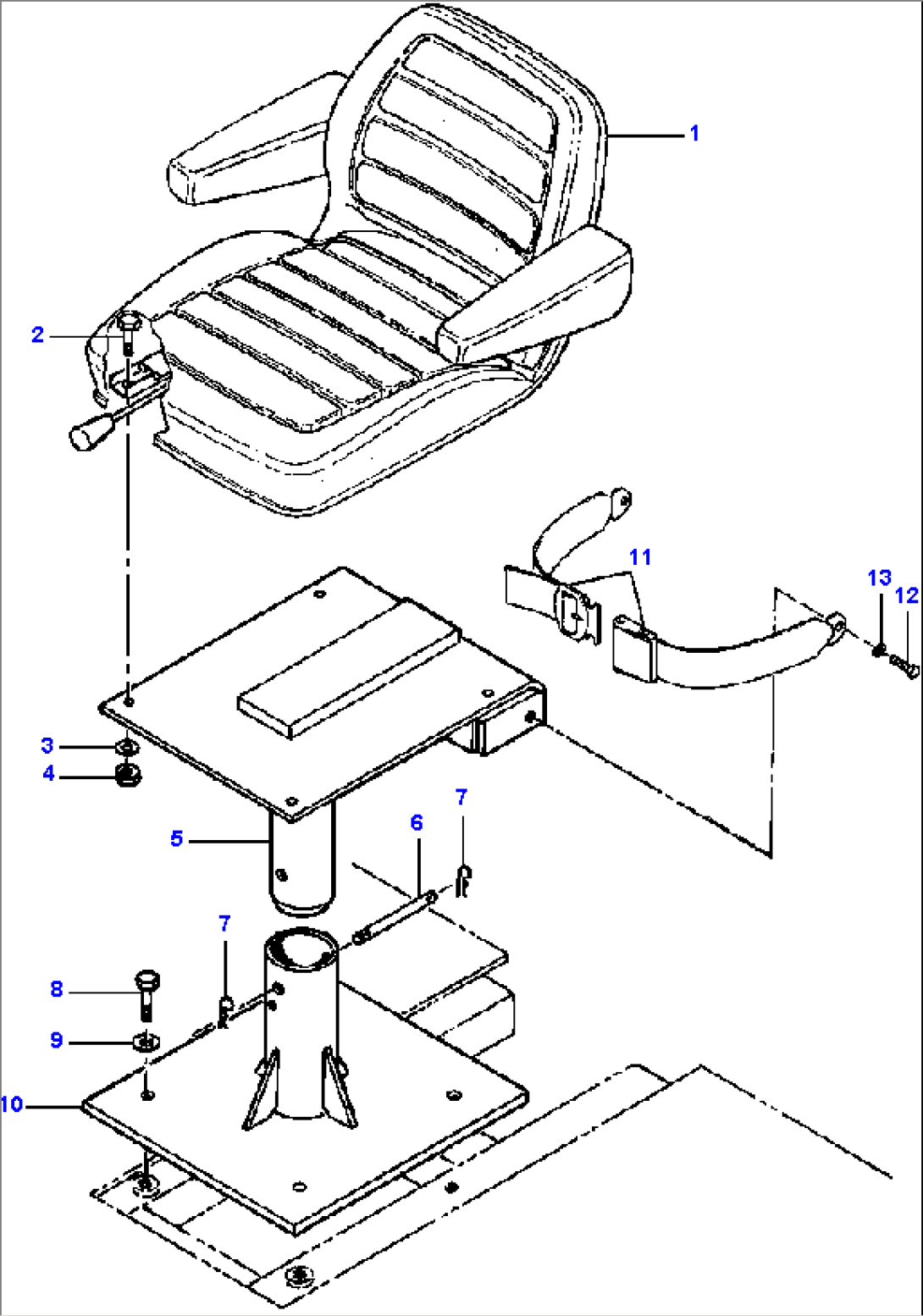

| (1262 567 H91) | SEAT & SUPPORTS | |||
| 1 | SEAT (SEE PG 13-018) | |||
| 2 | 180 079 | BOLT | ||
| 3 | 120 214 | WASHER, LOCK | ||
| 4 | 120 376 | NUT, HEX | ||
| 5 | 1281 800 H92 | PLATE WELDMENT, SEAT MOUNTING | ||
| 6 | 137 278 | PIN | ||
| 7 | 136 053 | PIN, HAIR | ||
| 8 | 180 177 | BOLT | ||
| 9 | 25 645 R1 | WASHER | ||
| 10 | 1281 799 H92 | POST WELDMENT, SEAT | ||
| 11 | 1286 807 H1 | BELT, SEAT | ||
| 12 | 24 862 R1 | BOLT | ||
| 13 | 25 546 R1 | WASHER, FLAT | ||
| 25 526 R1 | NUT, HEX |
