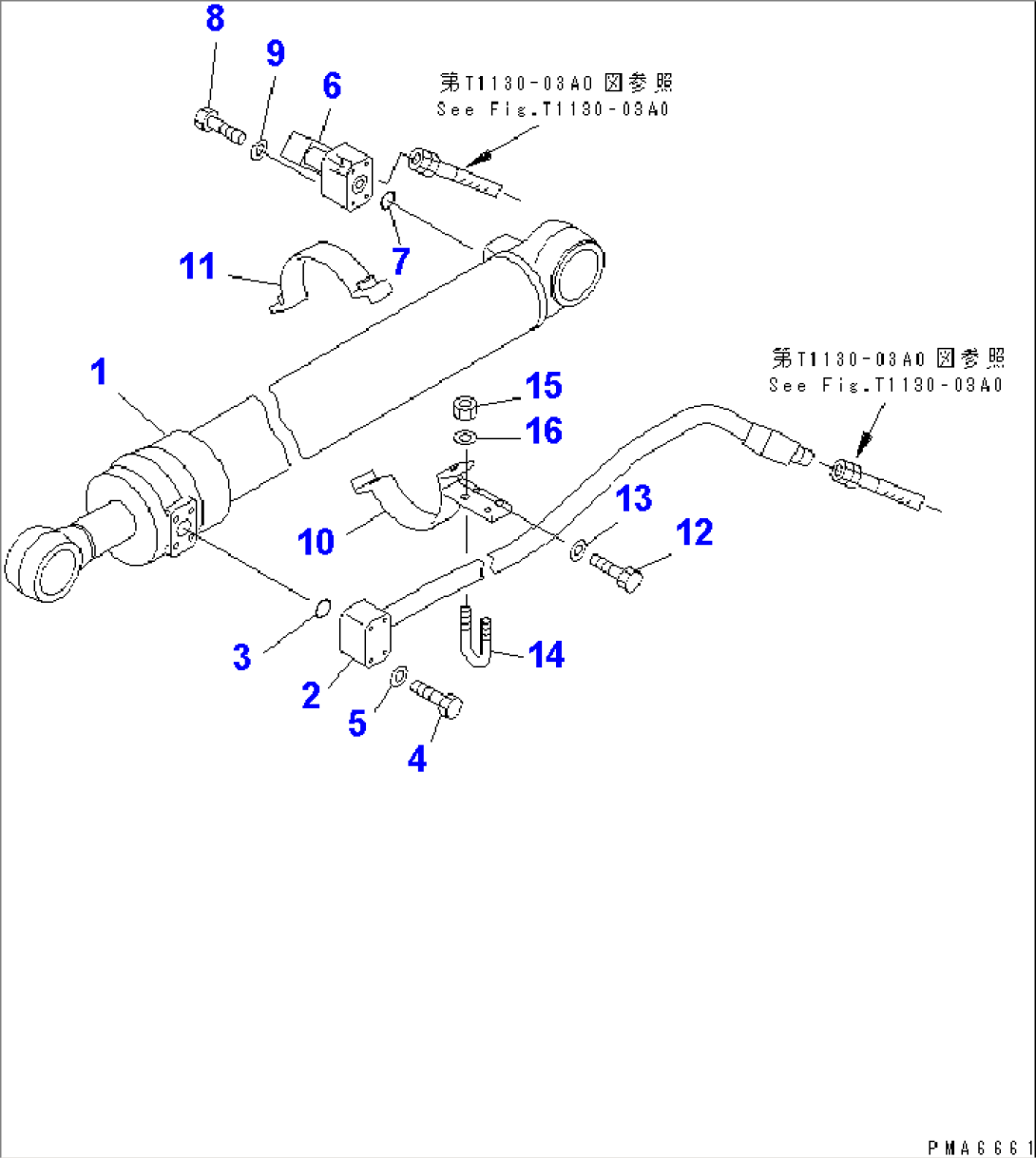

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20E-63-K1200 | CYLINDER ASS'Y,SECOND | K30001- | |
| 2 | 20E-63-K1210 | TUBE | K30001- | |
| 3 | 07000-13030 | O-RING | K30001- | |
| 4 | 07372-21035 | BOLT | K30001- | |
| 5 | 01643-51032 | WASHER | K30001- | |
| 6 | 20E-63-K1220 | TUBE | K30001- | |
| 7 | 07000-13030 | O-RING | K30001- | |
| 8 | 07372-21035 | BOLT | K30001- | |
| 9 | 01643-51032 | WASHER | K30001- | |
| 10 | 707-88-87670 | BRACKET | K30001- | |
| 11 | 707-88-95380 | BAND | K30001- | |
| 12 | 01010-51035 | BOLT | K30001- | |
| 13 | 01643-51032 | WASHER | K30001- | |
| 14 | 07283-22236 | CLIP | K30001- | |
| 15 | 01599-01011 | NUT | K30001- | |
| 16 | 01643-31032 | WASHER | K30001- |
