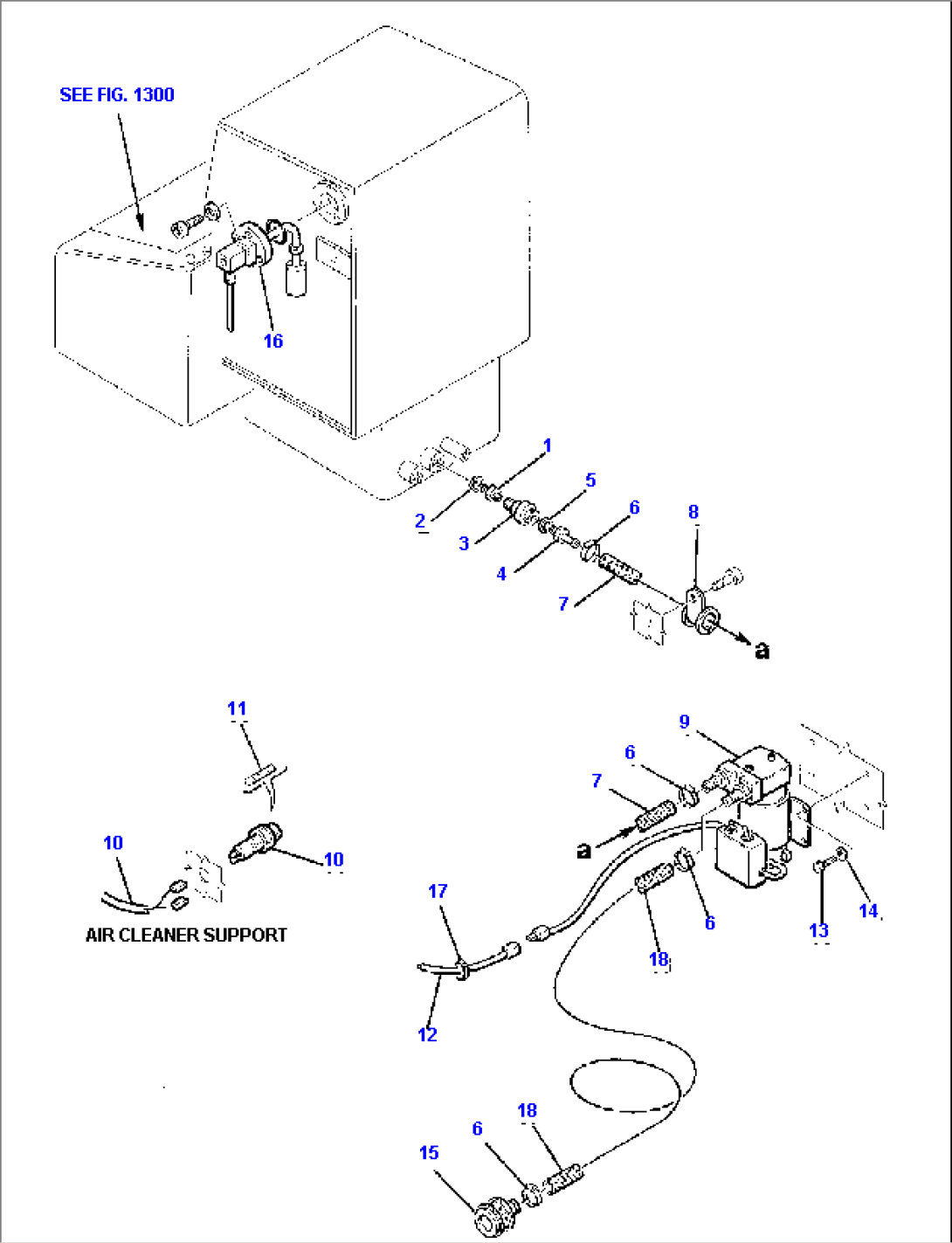

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21D-09-66180 | UNION | 5005145- | |
| 2 | 21D-09-86280 | GASKET | 5005145- | |
| 3 | 21D-04-11390 | VALVE | 5005145- | |
| 4 | 21D-09-66370 | UNION | 5005145- | |
| 5 | 21D-09-86210 | GASKET | 5005145- | |
| 6 | 21D-09-81120 | HOSE-CLAMP | 5005145- | |
| 7 | 21D-04-11410 | HOSE | 5005145- | |
| 8 | 21D-09-81700 | COLLAR | 5005145- | |
| 9 | 21D-04-11370 | PUMP, ASSY. | 5005145- | |
| 10 | 21D-06-12760 | WIRING HARNESS, FUSE, ASSY. | 5005145- | |
| 11 | 21D-06-12420 | FUSE 20A | 5005145- | |
| 12 | 21D-06-12750 | WIRING HARNESS, SELF SUPPLY PUMP, ASSY. | 5005145- | |
| 13 | 01010-50614 | BOLT | 5005145- | |
| 14 | 01643-30623 | WASHER | 5005145- | |
| 15 | 21D-04-11380 | FILTER | 5005145- | |
| 16 | 21D-06-12390 | FLOAT | 5005145- | |
| 17 | 21D-06-12340 | HOSE-CLAMP | 5005145- | |
| 18 | 21D-04-11420 | HOSE | 5005145- | |
| SEE FIG. 1300 |
