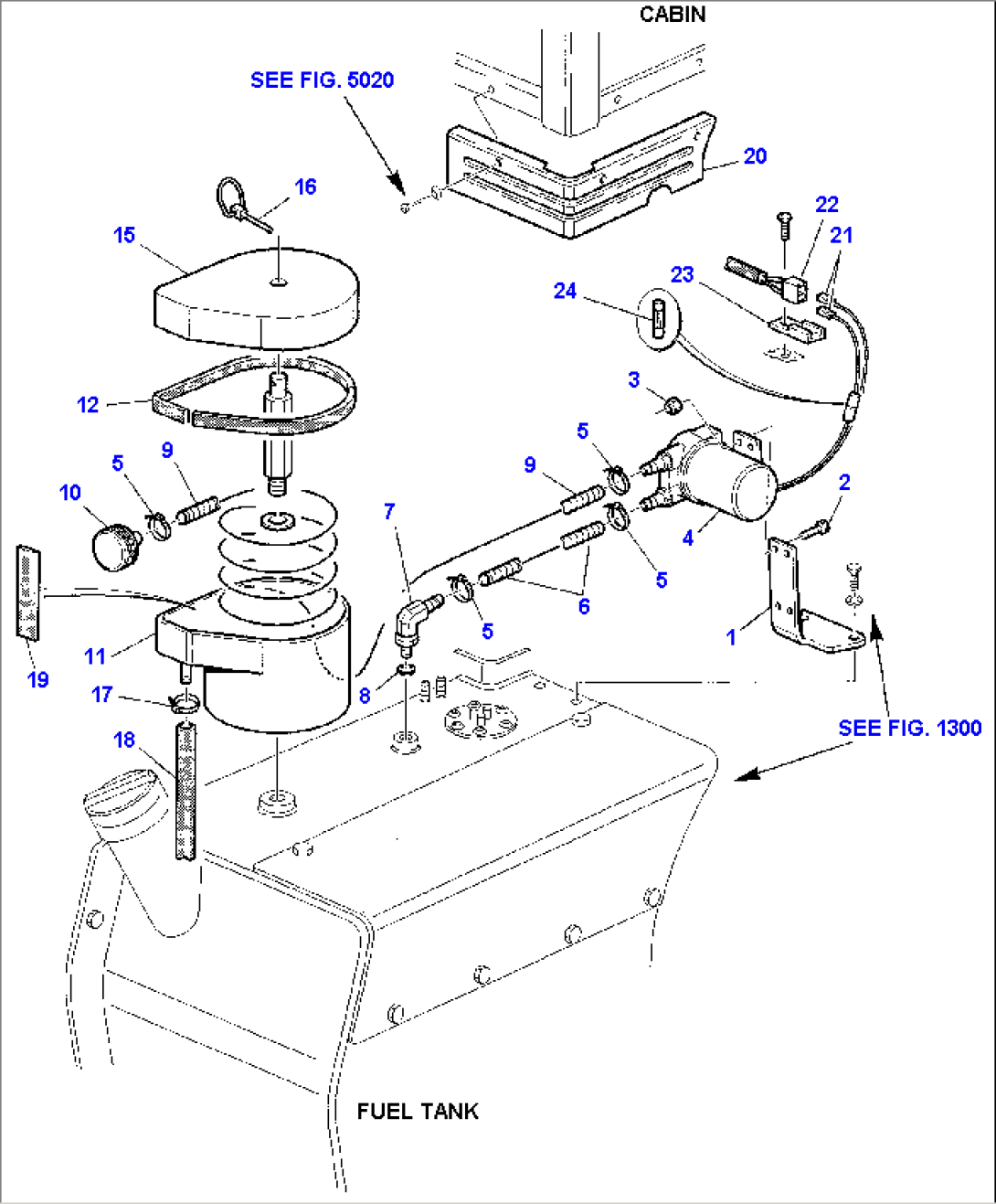

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312613650 | PUMP SUPPORT | 15050001- | |
| 2 | 801015063 | BOLT | 15050001- | |
| 3 | 801880206 | NUT | 15050001- | |
| 4 | 885121013 | PUMP | 15050001- | |
| 5 | 802660003 | WRAPPER | 15050001- | |
| 6 | 312636612 | PIPE | 15050001- | |
| 7 | 500358510 | ELBOW | 15050001- | |
| 8 | 855051617 | O-RING | 15050001- | |
| 9 | 306420641 | PIPE | 15050001- | |
| 10 | 848200038 | FILTER | 15050001- | |
| 11 | 312636050 | CONTAINER | 15050001- | |
| 12 | 312636615 | GASKET | 15050001- | |
| 13 | 312613649 | PIN | 15050001- | |
| 14 | 802148013 | WASHER | 15050001- | |
| 15 | 312636614 | COVER | 15050001- | |
| 16 | 802620006 | COTTER | 15050001- | |
| 17 | 802660002 | WRAPPER | 15050001- | |
| 18 | 312636613 | PIPE | 15050001- | |
| 19 | 500411505 | GASKET | 15050001- | |
| 20 | 312605790 | CLOSURE | 15050001- | |
| 21 | 885201114 | MALE CONNECTOR | 15050001- | |
| 22 | 885201123 | BODY | 15050001- | |
| 23 | 885201124 | PLATE | 15050001- | |
| 24 | 885091023 | FUSE | 15050001- | |
| SEE FIG. 1300 | ||||
| SEE FIG. 5020 |
