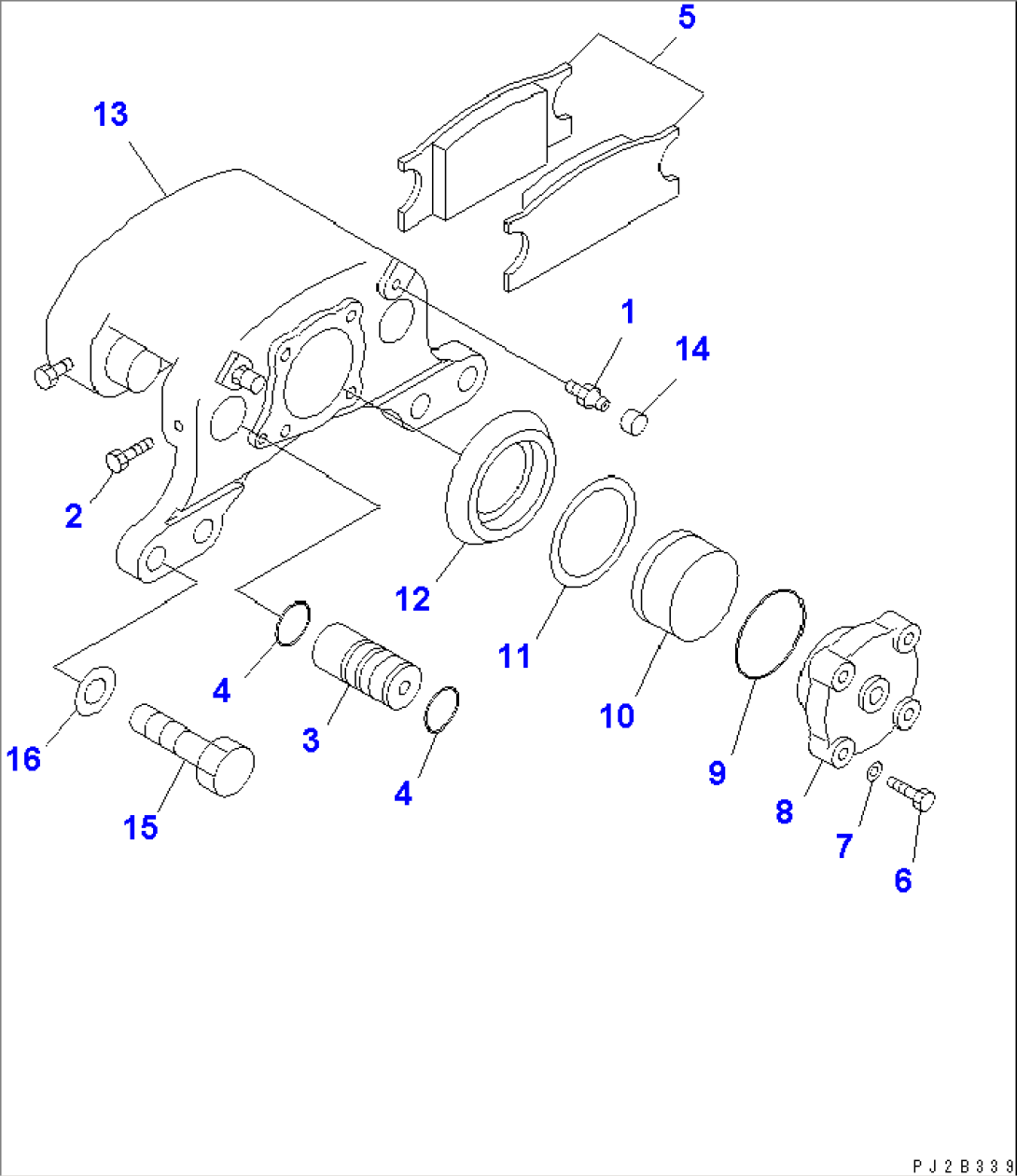

| Item | Part No. | Part Name | Qty | Serial No. |
| 273-32-61110 | BRAKE ASS'Y | 31001- | ||
| 1 | 273-32-61210 | VALVE | 31001- | |
| 2 | 273-32-61220 | BOLT | 31001- | |
| 3 | 273-32-61230 | PIN | 31001- | |
| 4 | 273-32-61240 | O-RING | 31001- | |
| 5 | 273-32-61250 | PAD KIT | 31001- | |
| 6 | 273-32-61260 | BOLT | 31001- | |
| 7 | 273-32-61270 | WASHER | 31001- | |
| 8 | 273-32-61280 | CAP | 31001- | |
| 9 | \6\ | SEAL (KIT) | 31001- | |
| 10 | 273-32-61310 | PISTON | 31001- | |
| 11 | \6\ | SEAL (KIT) | 31001- | |
| 12 | \6\ | SEAL (KIT) | 31001- | |
| 13 | \6\ | PLATE | 31001- | |
| 14 | 273-32-61350 | CAP | 31001- | |
| 15 | 01050-52045 | BOLT | 31001- | |
| 16 | 01643-32060 | WASHER | 31001- | |
| SERVICE KIT | ||||
| KIT | 273-32-61360 | SERVICE KIT,BRAKE | 31001- |
