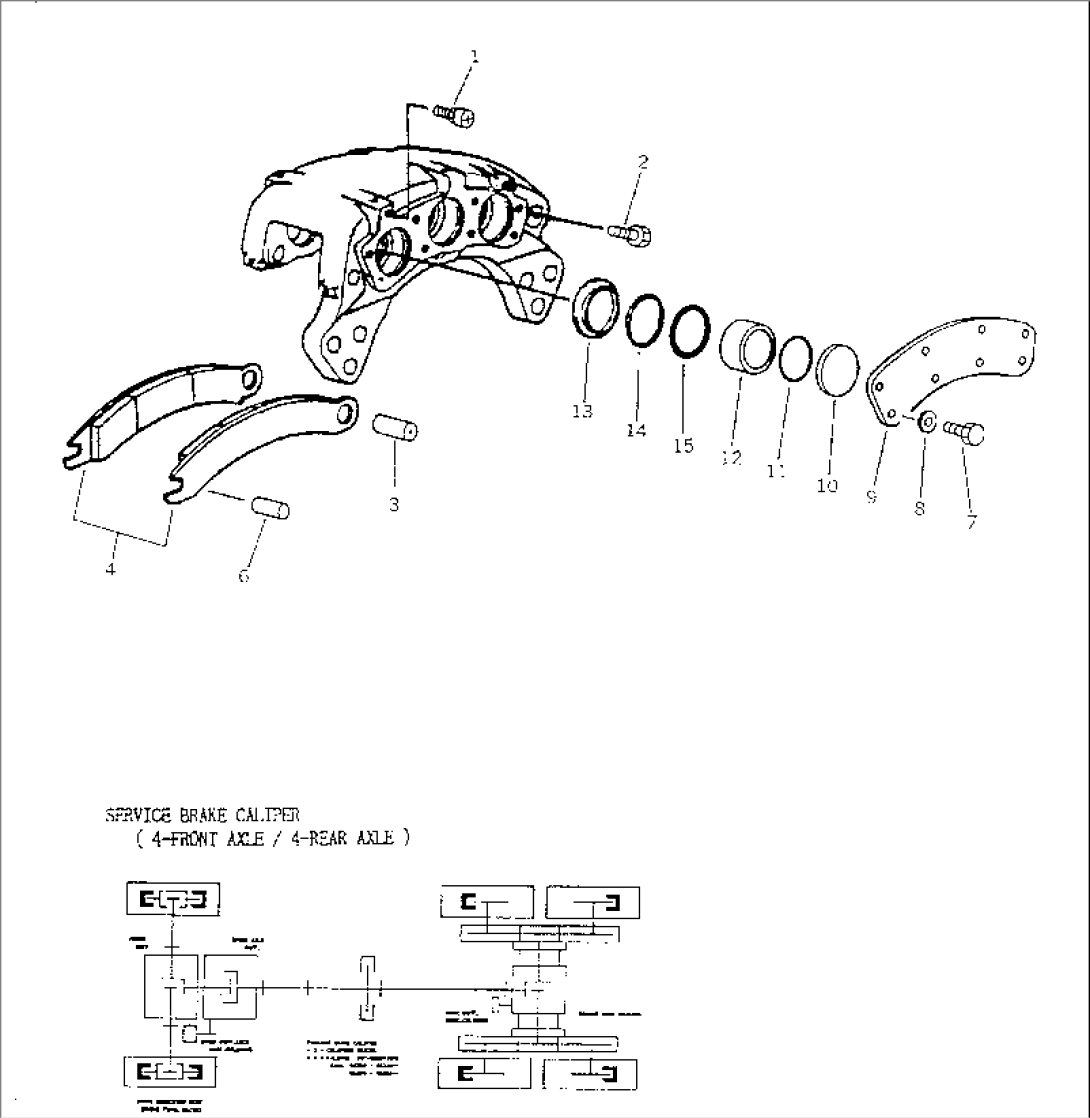

| Item | Part No. | Part Name | Qty | Serial No. |
| BW153197 | CALIPER ASS'Y | 303057- | ||
| BW053829 | CALIPER ASS'Y | 303001-303056 | ||
| 1 | BW054289 | PLUG | 303001- | |
| 2 | BW053686 | BOLT | 303001- | |
| 3 | BW054295 | PIN | 303001- | |
| 4 | BW053866 | SHOE,BRAKE (KIT B) | 303001- | |
| 6 | BW054296 | PIN | 303001- | |
| 7 | BW053687 | BOLT | 303001- | |
| 8 | BW053688 | WASHER | 303001- | |
| 9 | BW053689 | COVER | 303001- | |
| 10 | BW054400 | COVER | 303001- | |
| 11 | \6\ | PACKING (KIT A,B) | 303001- | |
| 12 | BW054288 | PISTON (KIT B) | 303001- | |
| 13 | \6\ | BOOT (KIT A,B) | 303001- | |
| 14 | \6\ | PACKING (KIT A,B) | 303001- | |
| 15 | \6\ | PACKING (KIT A,B) | 303001- | |
| SERVICE KIT | ||||
| KIT A | BW153198 | SEAL KIT,CALIPER | 303057- | |
| BW054287 | SEAL KIT,CALIPER | 303001-303056 | ||
| KIT B | BW053956 | OVERHAUL KIT,CALIPER | 303001- |
