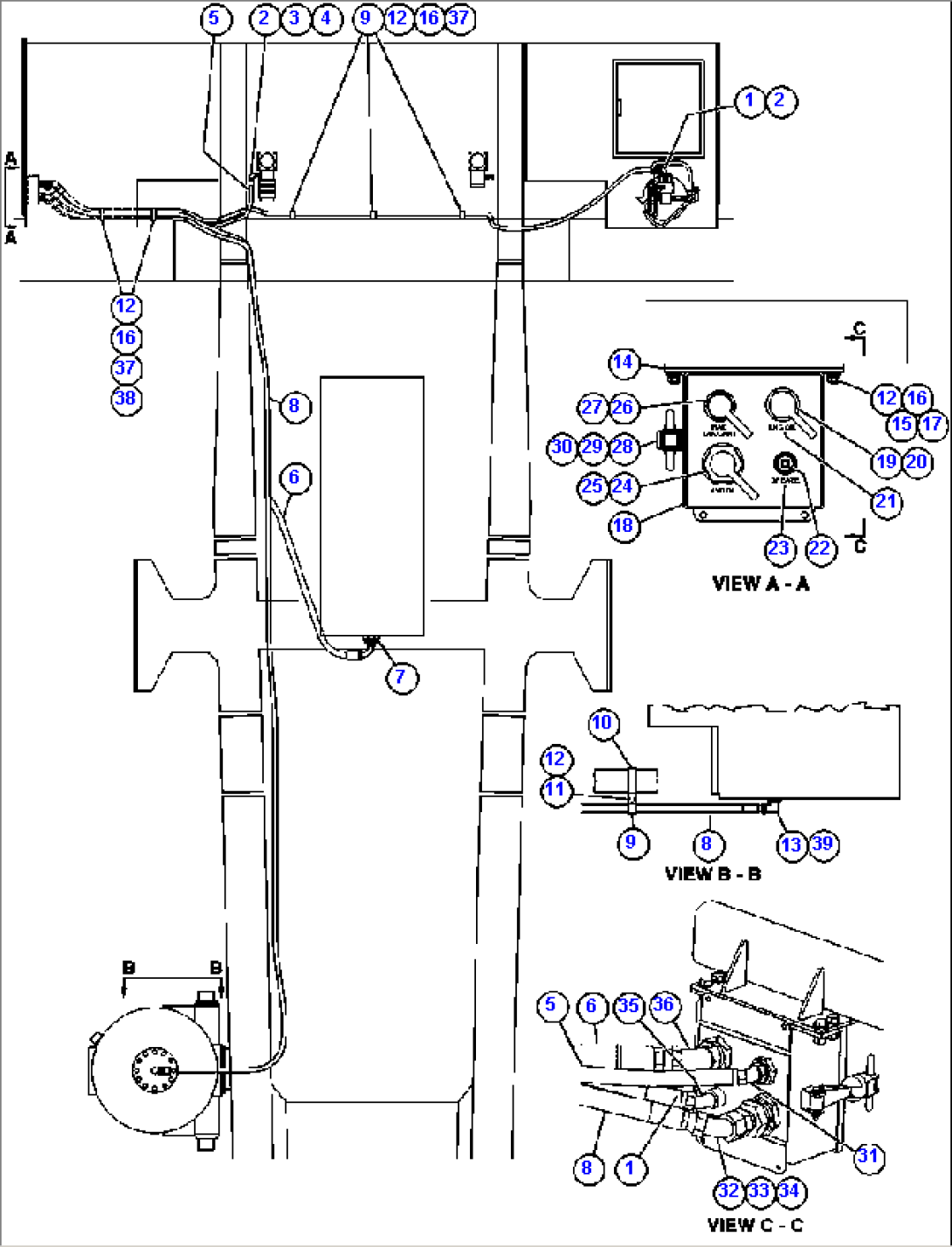

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA0622 | HOSE | ||
| 2 | WB0265 | FITTING - 90 DEG | ||
| 3 | ED9901 | O-RING | ||
| 4 | PB9858 | ADAPTOR | ||
| 5 | HA2363 | HOSE | ||
| 6 | VC5169 | HOSE | ||
| 7 | TG7045 | ADAPTOR | ||
| 8 | HA7511 | HOSE | ||
| 9 | TR9441 | CLAMP | ||
| 10 | WB0997 | CLAMP | ||
| 11 | MM0024 | CAPSCREW - M10 X 1.50 X 16 | ||
| 12 | MM0178 | NUT - M10 | ||
| 13 | WB0473 | ADAPTOR | ||
| 14 | EG3056 | MOUNTING | ||
| 15 | MM0047 | CAPSCREW - M10 X 1.50 X 30 | ||
| 16 | MM0461 | FLAT WASHER - M10 | ||
| 17 | MM0471 | LOCKWASHER - M10 | ||
| 18 | EG3059 | BOX, SERVICE CENTER | ||
| 19 | WB0947 | FITTING, BULKHEAD | ||
| 20 | PB9212 | ENGINE OIL RECEIVER ASSEMBLY | ||
| 21 | TZ0800 | DECAL | ||
| 22 | C5771 | PLUG | ||
| 23 | TM2379 | DECAL | ||
| 24 | WB0948 | FITTING, BULKHEAD | ||
| 25 | PB9213 | HYDRAULIC OIL RECEIVER ASSEMBLY | ||
| 26 | WB0945 | FITTING, BULKHEAD | ||
| 27 | PB9211 | RADIATOR COOLANT RECEIVER ASSEMBLY | ||
| 28 | D118265 | HOOK RUBBER | ||
| 29 | TR4065 | CAPSCREW - 1/4" - 20NC X 1 3/4" | ||
| 30 | VD4460 | LOCKNUT - 1/4" | ||
| 31 | WB0538 | FITTING, O-RING - 45 DEG | ||
| 32 | WB0600 | FITTING, O-RING ADAPTOR | ||
| 33 | WB0369 | FITTING - 45 DEG | ||
| 34 | WB0364 | FITTING, ADAPATOR - STRUCTURE | ||
| 35 | WB0292 | FITTING - 45 DEG | ||
| 36 | WB0543 | FITTING - 45 DEG | ||
| 37 | MM0648 | STUD, WELD - M10 | ||
| 38 | TR3662 | CLAMP | ||
| 39 | WB0377 | FITTING - 90 DEG |
