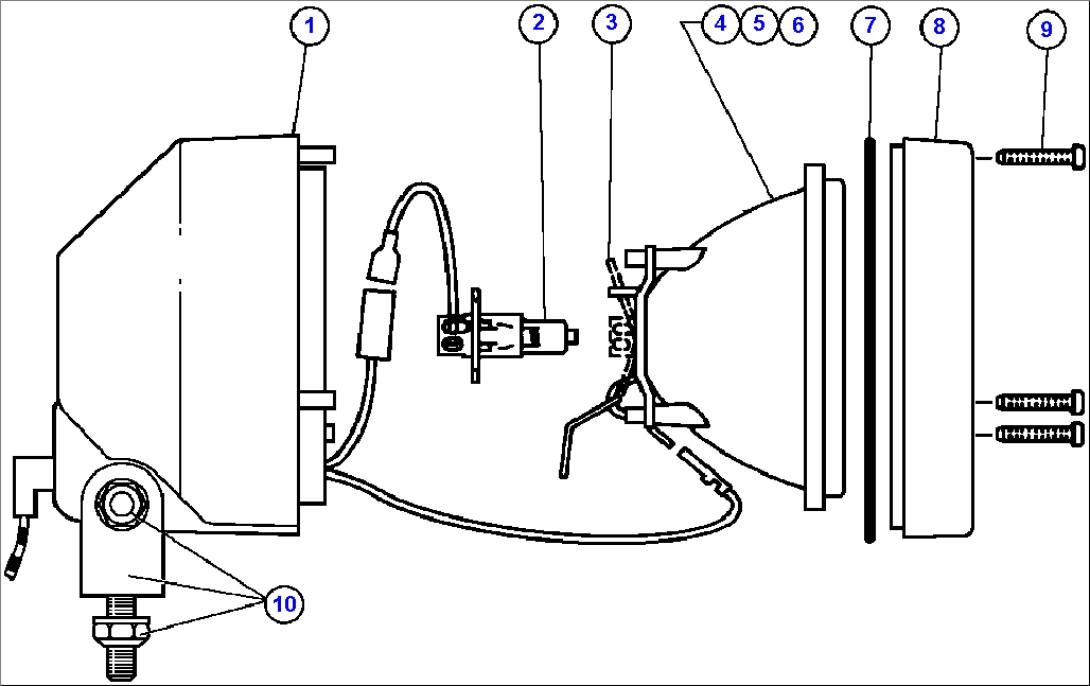

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK7552 | UNIVERSAL HOUSING ASSEMBLY | ||
| 2 | AK7575 | BULB, LIGHT - 24V/65W | ||
| 3 | AK7554 | SPRING, BULB RETAINER (MULTIPAK 10) | ||
| 4 | AK7535 | LENS/REFLECTOR (WITHOUT BULB) (1) | ||
| 5 | AK7533 | LENS/REFLECTOR (WITHOUT BULB) (2) | ||
| 6 | (NOT USED THIS APPLICATION) | |||
| 7 | AK7556 | GASKET (MULTIPAK 10) | ||
| 8 | AK7559 | BEZEL | ||
| 9 | AK7561 | SCREW, MACHINE (MULTIPAK 30) | ||
| 10 | AK7560 | HARDWARE KIT | ||
| NS|11 | NOTE: NS = NOT SHOWN | |||
| NS|12 | AK8564 | SWITCH, TOGGLE (1) | ||
| NS|13 | NOTE: (1) INCLUDED IN AK7504 SERVICE LIGHT ASSM. | |||
| NS|14 | (2) INCLUDED IN AK7502 OPTIONAL FOG LIGHT ASSM. |
