SERVICE KIT

SERVICE KIT

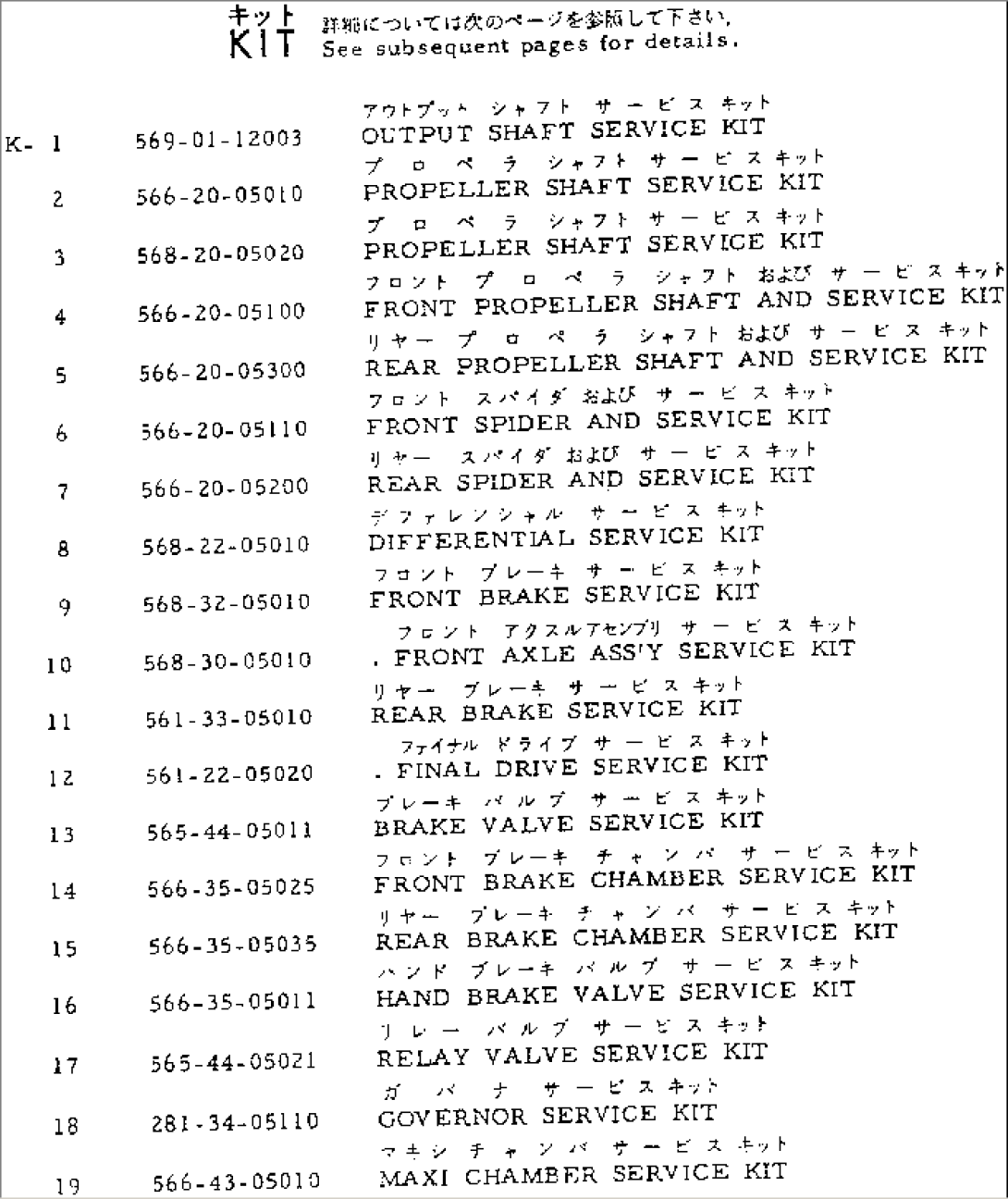

ItemPart No.Part NameQtySerial No.
1569-01-05011SERVICE KIT,OUTPUT SHAFT1000-1000
566-01-22910SEAL1000-1000
569-01-12910SEAL1000-1000
2568-20-05020SERVICE KIT,DRIVE SHAFT1000-1000
566-20-12330LOCK1000-1000
565-20-12130LOCK1000-1000
3566-20-05010SERVICE KIT,DRIVE SHAFT1000-1000
566-20-05010SERVICE KIT,DRIVE SHAFT1002-
566-20-11530PLATE,LOCK1002-
566-20-11520LOCK1002-
4561-20-05100SERVICE KIT,DRIVE SHAFT1000-1000
561-20-05200SERVICE KIT,DRIVE SHAFT1002-
561-20-11000SHAFT ASS'Y,FRONT DRIVE1000-1000
562-20-11000SHAFT ASS'Y,FRONT DRIVE1002-
01090-61260BOLT1000-1000
01050-61470BOLT1002-
566-20-12330LOCK1000-1000
566-20-11520LOCK1002-
5561-20-05300SERVICE KIT,DRIVE SHAFT1002-
561-20-12000SHAFT ASS'Y,REAR DRIVE1002-
566-20-11520LOCK1002-
01050-61475BOLT1002-
6568-20-05110SERVICE KIT,FRONT SPIDER1002-
567-20-12202SPIDER ASS'Y1000-1000
281-20-12201SPIDER ASS'Y1002-
01090-61260BOLT1000-1000
01050-61470BOLT1002-
566-20-12330LOCK1000-1000
566-20-11520LOCK1002-
567-20-12310BOLT1000-1000
510-20-12810BOLT1002-
567-20-12340NUT1000-1000
01582-01411NUT1002-
565-20-12130LOCK1000-1000
566-20-11530PLATE1002-
7568-20-05201SERVICE KIT,REAR SPIDER1002-
568-20-12103SPIDER ASS'Y1002-
01050-61495BOLT1002-
01582-11411NUT1002-
566-20-11530PLATE1002-
566-20-11520LOCK1002-
01050-61475BOLT1002-
8568-22-05010SERVICE KIT,DIFFERENTIAL1002-
568-22-11630O-RING1002-
07000-05320O-RING1002-
07012-10110SEAL1002-
07000-05230O-RING1002-
285-22-11330LOCK1002-
07000-05085O-RING1002-
281-22-11280LOCK1002-
568-22-11460LOCK1002-
04081-05512LOCK1002-
568-22-11320PLATE1002-
568-22-11480LOCK1002-
9568-32-05100SERVICE KIT,FRONT BRAKE1002-
07000-05100O-RING1002-
07157-00806PACKING1002-
568-32-11440LOCK1002-
04081-03510LOCK1002-
07000-02010O-RING1002-
568-32-11660SEAL1002-
10568-30-05010SERVICE KIT,FRONT AXLE1002-
07000-05290O-RING1002-
568-30-11170LOCK1002-
568-30-11410SEAL,OIL1002-
07000-05315O-RING1002-
11561-33-05010SERVICE KIT,REAR BRAKE1002-
568-33-11520PACKING1002-
568-33-11530PACKING1002-
568-33-11430O-RING1002-
07000-05500O-RING1002-
566-09-31110O-RING1002-
568-33-11430O-RING1002-
568-33-11510SEAL1002-
07005-01012GASKET1002-
07002-01823O-RING1002-
07000-05485O-RING1002-
12561-22-05020SERVICE KIT,FINAL DRIVE1002-
07000-05320O-RING1002-
568-22-12220LOCK1002-
285-22-12180PLATE1002-
562-22-12920O-RING1002-
568-22-12810O-RING1002-
07000-02021O-RING1002-
07002-01623O-RING1002-
07002-03634O-RING1002-
13565-44-05011SERVICE KIT,BRAKE VALVE1002-
565-44-12810VALVE ASS'Y1002-
380-889290-1VALVE1002-
380-889291-1RETAINER1002-
380-889292-1SPRING1002-
380-889293-1WASHER1002-
380-889294-1O-RING1002-
380-889295-1RETAINER1002-
380-889296-1RING1002-
565-44-12890O-RING1002-
565-44-12920O-RING1002-
565-44-12850O-RING1002-
565-44-12820VALVE ASS'Y1002-
380-889304-1VALVE1002-
380-889305-1RETAINER1002-
380-889306-1SPRING1002-
380-889307-1WASHER1002-
380-889308-1O-RING1002-
380-889310-1RING1002-
380-889309-1GUIDE1002-
565-44-12970O-RING1002-
14566-35-05025SERVICE KIT,FRONT BRAKE CHAMBER1002-
281-34-11112DIAPHRAGM1002-
566-35-16730O-RING1002-
566-35-16740VALVE1002-
566-35-16760CUP,PRIMARY1002-
566-35-16780O-RING1002-
566-35-16990CUP,SECONDARY1002-
566-35-16830O-RING1002-
566-35-16840GASKET1002-
15566-35-05035SERVICE KIT,REAR BRAKE CHAMBER1002-
281-34-11112DIAPHRAGM1002-
566-35-17320O-RING1002-
566-35-17520SEAL1002-
566-35-17480SEAL1002-
566-35-17490O-RING1002-
16566-35-05011SERVICE KIT,HAND BRAKE VALVE1002-
566-35-00011VALVE ASS'Y,INLET EXHAUST1002-
566-35-16120SEAT1002-
566-35-16131VALVE1002-
566-35-16141STEM1002-
566-35-16150SPRING1002-
566-35-16160GUIDE1002-
566-35-16170O-RING1002-
566-35-16230O-RING1002-
566-35-00020CAM ASS'Y1002-
566-35-16250CAM1002-
566-35-16260CAM1002-
566-35-16280GASKET1002-
566-35-16380O-RING1002-
17567-35-01100SERVICE KIT,RELAY VALVE1002-
567-35-11230O-RING1002-
567-35-11250O-RING1002-
567-35-11270VALVE1002-
567-35-11290O-RING1002-
567-35-11330O-RING1002-
567-35-11390O-RING1002-
567-35-11410RING1002-
567-35-11430VALVE1002-
567-35-11440SPRING1002-
567-35-11450O-RING1002-
567-35-11530DIAPHRAGM1002-
567-35-11550O-RING1002-
18281-34-05110SERVICE KIT,GOVERNOR1002-
565-44-16120FILTER1002-
565-44-16140O-RING1002-
565-44-16160VALVE1002-
565-44-16170SPRING1002-
565-44-16180O-RING1002-
565-44-16240COVER1002-
19566-43-05010SERVICE KIT,MAXI CHAMBER1002-
566-43-17660RING1002-
566-43-17690RING1002-
566-43-17670O-RING1002-
566-43-17710O-RING1002-
