| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

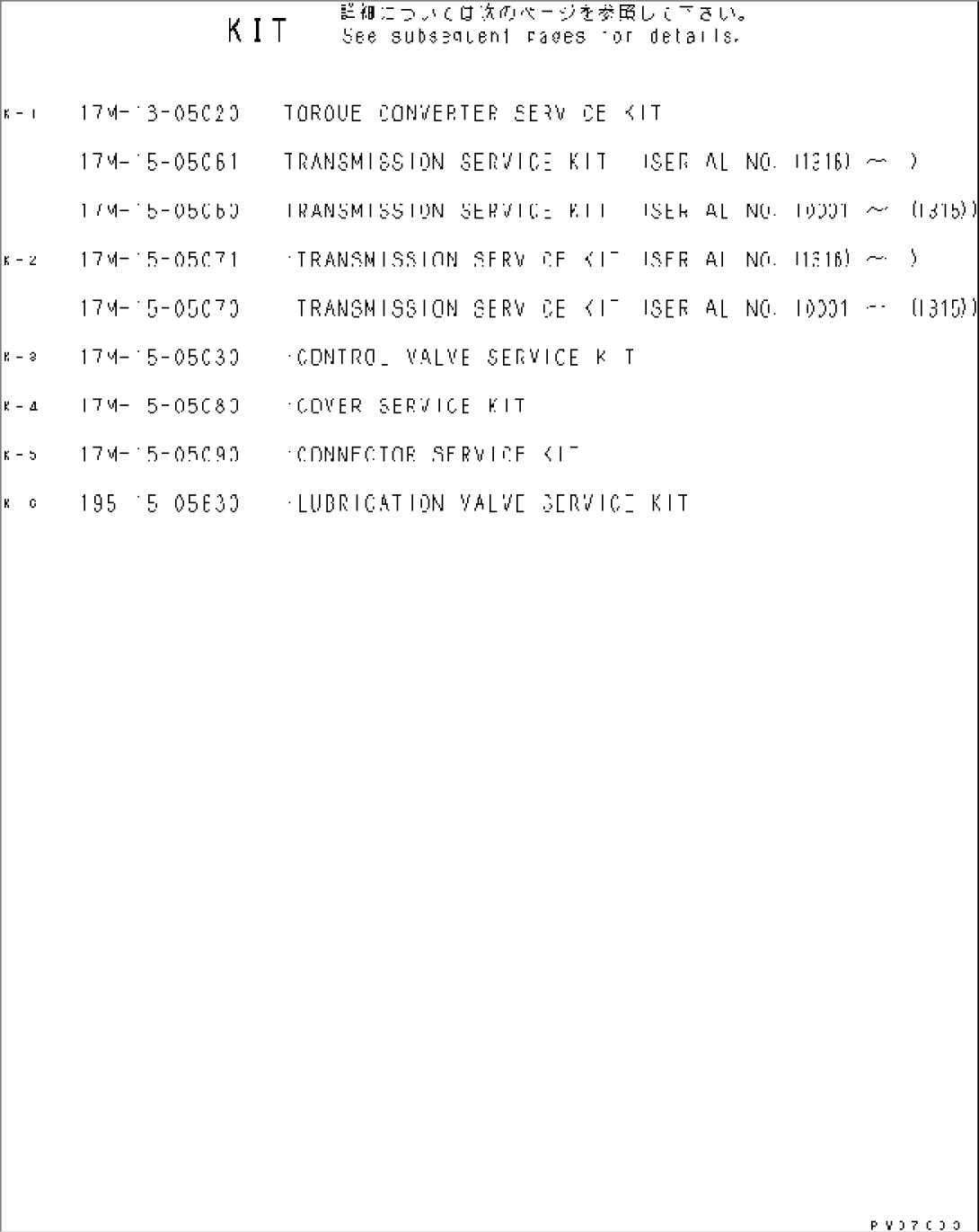

| 1 | 17M-13-05020 | SERVICE KIT,TORQUE CONVERTER | 10001- | |
| 1 | 07018-31104 | RING | 10001- | |
| 1 | 07018-31706 | RING | 10001- | |
| 1 | 113-15-12870 | RING | 10001- | |
| 1 | 568-15-12850 | RING,SEAL | 10001- | |
| 1 | 07000-42070 | O-RING | 10001- | |
| 1 | 07000-45270 | O-RING | 10001- | |
| 1 | 07000-72055 | O-RING | 10001- | |
| 1 | 07000-42130 | O-RING | 10001- | |
| 1 | 07000-45270 | O-RING | 10001- | |
| 1 | 195-15-49620 | O-RING | 10001- | |
| 1 | 07000-63048 | O-RING | 10001- | |
| 1 | 07000-72085 | O-RING | 10001- | |
| 1 | 07000-73030 | O-RING | 10001- | |
| 1 | 07000-45150 | O-RING | 10001- | |
| 1 | 07012-60120 | SEAL,OIL | 10001- | |
| 1 | 17M-13-22730 | SEAL,DUST | 10001- | |
| 1 | 07000-45175 | O-RING | 10001- | |
| 1 | 711-66-14270 | SHIM, 0.15MM | 10001- | |
| 1 | 711-66-14280 | SHIM, 0.2MM | 10001- | |
| 1 | 711-66-14290 | SHIM, 0.5MM | 10001- | |
| 1 | 07005-01212 | SEAL | 10001- | |
| 1 | 07000-73045 | O-RING | 10001- | |
| 1 | 07000-72055 | O-RING | 10001- | |
| 1 | 07000-63038 | O-RING | 10001- | |
| 1 | 07000-62010 | O-RING | 10001- | |
| 1 | 07000-73030 | O-RING | 10001- | |
| 1 | 711-66-16910 | GASKET | 10001- | |
| 1 | 07000-63048 | O-RING | 10001- | |
| 1 | 07000-73045 | O-RING | 10001- | |
| 1 | 07000-62010 | O-RING | 10001- | |
| 1 | 07000-41006 | O-RING | 10001- | |
| 1 | 711-66-16920 | GASKET | 10001- | |
| 17M-15-05061 | SERVICE KIT,TRANSMISSION | 10001- | ||
| 17M-15-05060 | SERVICE KIT,TRANSMISSION | 10001-(1315) | ||
| 2 | 17M-15-05071 | SERVICE KIT,TRANSMISSION | 10001- | |
| 2 | 17M-15-05070 | SERVICE KIT,TRANSMISSION | 10001-(1315) | |
| 2 | 07000-73028 | O-RING | 10001- | |
| 2 | 07000-72085 | O-RING | 10001- | |
| 2 | 07000-72080 | O-RING | 10001- | |
| 2 | 07000-73048 | O-RING | 10001- | |
| 2 | 195-15-49630 | O-RING | 10001- | |
| 2 | 175-15-59240 | RING,SEAL | 10001- | |
| 2 | 155-15-12820 | RING,SEAL | 10001- | |
| 2 | 175-15-59270 | RING,SEAL | 10001- | |
| 2 | 195-15-39210 | RING,SEAL | 10001- | |
| 2 | 582-15-19250 | RING,SEAL | 10001- | |
| 2 | 195-15-29220 | RING,SEAL | 10001- | |
| 2 | 175-15-59250 | RING,SEAL | 10001- | |
| 2 | 195-15-39210 | RING,SEAL | 10001- | |
| 2 | 145-15-42820 | RING,SEAL | 10001- | |
| 2 | 103-15-29220 | RING,SEAL | 10001-(1315) | |
| 2 | 195-15-49210 | RING,SEAL, 1ST PISTON | 10001- | |
| 2 | 145-15-42810 | RING,SEAL | 10001- | |
| 3 | 17M-15-05030 | SERVICE KIT,CONTROL VALVE | 10001- | |
| 3 | 07000-73022 | O-RING | 10001- | |
| 3 | 07000-73025 | O-RING | 10001- | |
| 3 | 07000-73022 | O-RING | 10001- | |
| 3 | 07000-72016 | O-RING | 10001- | |
| 3 | 07000-73045 | O-RING | 10001- | |
| 4 | 17M-15-05080 | SERVICE KIT,COVER | 10001- | |
| 4 | 07002-43634 | O-RING | 10001- | |
| 4 | 175-15-49120 | SEAL,OIL | 10001- | |
| 4 | 07000-72008 | O-RING | 10001- | |
| 4 | 07000-73028 | O-RING | 10001- | |
| 4 | 154-15-45540 | GASKET | 10001- | |
| 4 | 17M-15-25430 | GASKET | 10001- | |
| 4 | 07000-72018 | O-RING | 10001- | |
| 4 | 17M-15-25840 | GASKET | 10001- | |
| 4 | 17M-15-25520 | GASKET | 10001- | |
| 5 | 17M-15-05090 | SERVICE KIT,CONNECTOR | 10001- | |
| 5 | 07000-05290 | O-RING | 10001- | |
| 5 | 07000-73048 | O-RING | 10001- | |
| 5 | 07000-72085 | O-RING | 10001- | |
| 5 | 195-15-49620 | O-RING | 10001- | |
| 5 | 07000-73022 | O-RING | 10001- | |
| 6 | 195-15-05630 | SERVICE KIT,LUBRICATION VALVE | 10001- | |
| 6 | 07002-02434 | O-RING | 10001- | |
| 6 | 07000-73035 | O-RING | 10001- |
