| Item | Part No. | Part Name | Qty | Serial No. |
| | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | | |

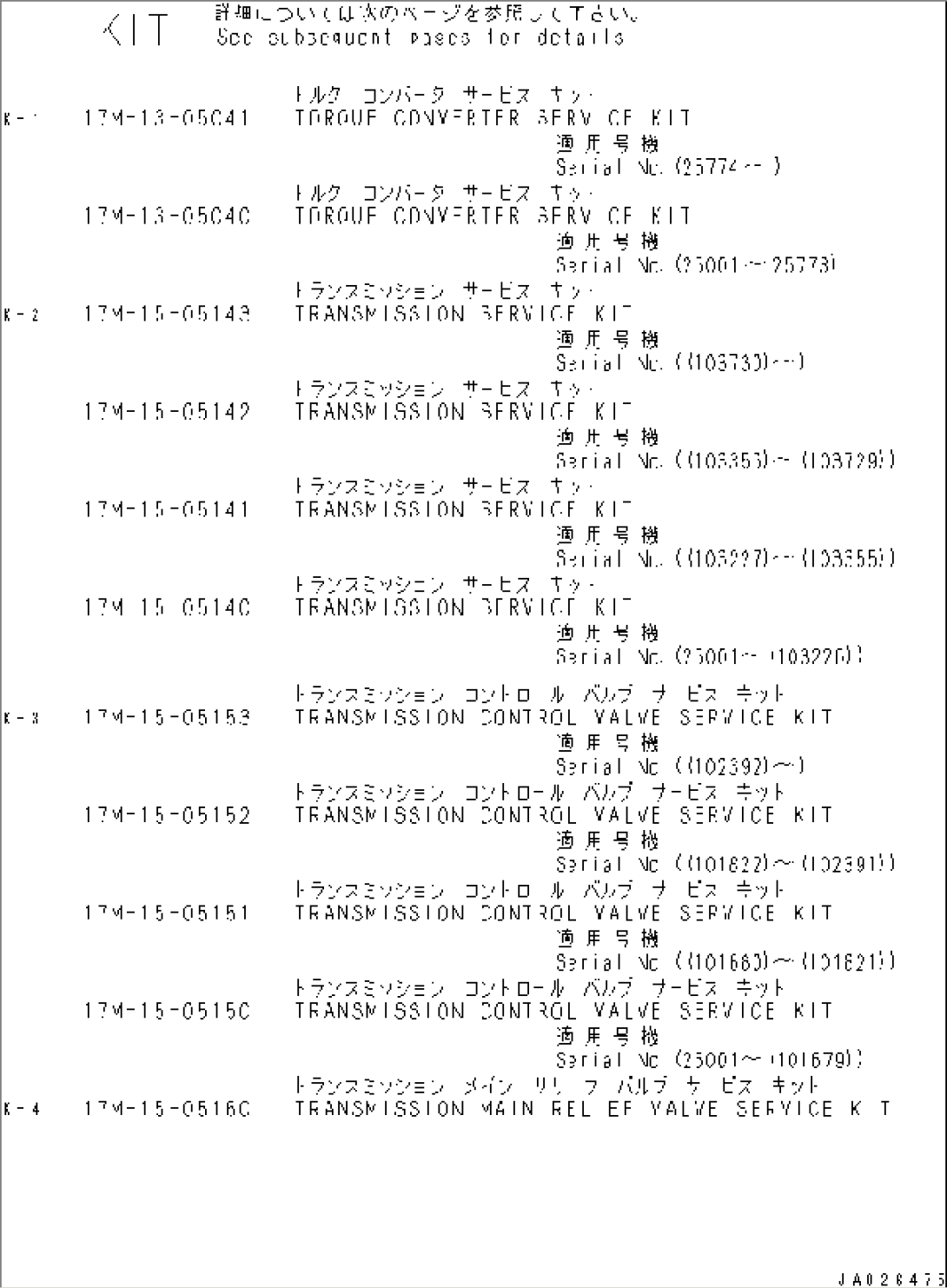

| 1 | 17M-13-05040 | SERVICE KIT,TORQUECONVERTER | | 25774- |
| 1 | 17M-13-05040 | SERVICE KIT,TORQUECONVERTER | | 25001-25773 |
| 1 | 07000-72095 | O-RING,(F2310-54A0 -2 ) | | 25001- |
| 1 | 07000-73035 | O-RING,(F2310-53A0 -9 ) | | 25001- |
| 1 | 07000-73038 | O-RING,(F2310-53A0 -10 ) | | 25001- |
| 1 | 07000-75165 | O-RING,(F2310-54A0 -23 ) | | 25001- |
| 1 | 07000-75175 | O-RING,(F2310-53A0 -13 ) | | 25001- |
| 1 | 07000-75210 | O-RING,(F2310-54A0 -21 ) | | 25001- |
| 1 | 07000-75260 | O-RING,(F2310-55A0 -6 ) | | 25001- |
| 1 | 07005-01612 | SEAL, WASHER,(F2310-54A0 -10 ) | | 25001- |
| 1 | 07005-01612 | SEAL, WASHER,(F2310-54A0 -16 ) | | 25001- |
| 1 | 07012-60120 | SEAL,(F2310-53A0 -15 ) | | 25001- |
| 1 | 17M-13-22730 | SEAL,(F2310-53A0 -16 ) | | 25001- |
| 1 | 17M-13-46210 | GASKET,(F2310-53A0 -25 ) | | 25001- |
| 1 | 17A-13-42710 | RING,(F2310-51A0 -14 ) | | (103278)- |
| 1 | 195-13-12711 | RING,(F2310-51A0 -14 ) | | 25001-(103277) |
| 1 | 711-66-14270 | SHIM, 0.15MM,(F2310-53A0 -19 ) | | 25001- |
| 1 | 711-66-14280 | SHIM, 0.2MM,(F2310-53A0 -19- ) | | 25001- |
| 1 | 711-66-14290 | SHIM, 0.5MM,(F2310-53A0 -19- ) | | 25001- |
| 2 | 17M-15-05143 | SERVICE KIT,TRANSMISSION | | (103730)- |
| 2 | 17M-15-05142 | SERVICE KIT,TRANSMISSION | | (103356)-(103729) |
| 2 | 17M-15-05141 | SERVICE KIT,TRANSMISSION | | (103227)-(103355) |
| 2 | 17M-15-05140 | SERVICE KIT,TRANSMISSION | | 25001-(103226) |
| 2 | 07000-72014 | O-RING,(F2320-57A1 -13 ) | | 25001- |
| 2 | 07000-72014 | O-RING,(F2320-57A1 -20 ) | | 25001- |
| 2 | 07000-72020 | O-RING,(F2320-51A1 -17 ) | | 25001- |
| 2 | 07000-72055 | O-RING,(F2320-57A1 -32 ) | | 25001- |
| 2 | 07000-72085 | O-RING,(F2320-57A1 -31 ) | | 25001- |
| 2 | 07000-73022 | O-RING,(F2320-57A1 -19 ) | | 25001- |
| 2 | 07000-73025 | O-RING,(F2320-57A1A-7 ) | | (103356)- |
| 2 | 07000-73025 | O-RING,(F2320-57A1 -14 ) | | 25001- |
| 2 | 07000-73025 | O-RING,(F2320-57A1 -22 ) | | 25001- |
| 2 | 07000-73028 | O-RING,(F2320-57A1 -8 ) | | 25001- |
| 2 | 07000-73030 | O-RING,(F2320-52A1 -19 ) | | 25001- |
| 2 | 07000-73030 | O-RING,(F2320-57A1 -7 ) | | 25001- |
| 2 | 07000-73030 | O-RING,(F2320-57A1 -23 ) | | 25001- |
| 2 | 07000-73032 | O-RING,(F2320-57A1 -24 ) | | 25001- |
| 2 | 07000-73035 | O-RING,(F2320-52A1 -20 ) | | 25001- |
| 2 | 07000-73038 | O-RING,(F2320-57A1 -33 ) | | 25001- |
| 2 | 07000-73045 | O-RING,(F2320-57A1 -34 ) | | 25001- |
| 2 | 144-15-22881 | RING,(F2320-51A1 -14 ) | | 25001- |
| 2 | 144-15-22881 | RING,(F2320-53A1 -3 ) | | 25001- |
| 2 | 17A-15-25912 | GASKET,(F2320-63A1A-2 ) | | (103730)- |
| 2 | 17A-15-25911 | GASKET,(F2320-63A1A-2 ) | | 25001-(103729) |
| 2 | 17M-15-45980 | O-RING,(F2320-57A1 -30 ) | | 25001- |
| 2 | 17M-22-47820 | O-RING,(F2320-57A1A-5 ) | | (103356)- |
| 2 | 195-15-71230 | GASKET,(F2320-63A1A-9 ) | | 25001- |
| 2 | 425-15-19250 | RING,(F2320-51A1 -24 ) | | 25001- |
| 2 | 562-15-19230 | RING,(F2320-51A1 -3 ) | | 25001- |
| 2 | 562-15-19230 | RING,(F2320-52A1 -5 ) | | 25001- |
| 2 | 582-15-19250 | RING,(F2320-51A1 -5 ) | | (103227)- |
| 2 | 566-15-79260 | RING,(F2320-51A1 -5 ) | | 25001-(103226) |
| 2 | 582-15-19250 | RING,(F2320-51A1 -26 ) | | (103227)- |
| 2 | 566-15-79260 | RING,(F2320-51A1 -26 ) | | 25001-(103226) |
| 2 | 568-15-12830 | RING,(F2320-51A1 -16 ) | | 25001- |
| 2 | 568-15-12830 | RING,(F2320-53A1 -5 ) | | 25001- |
| 2 | 568-15-12840 | RING,(F2320-52A1 -7 ) | | 25001- |
| 2 | 569-15-59660 | O-RING,(F2320-57A1A-3 ) | | (103356)- |
| 3 | 17M-15-05153 | SERVICE KIT,TRANSMISSION CONTROL VALVE | | (102392)- |
| 3 | 17M-15-05152 | SERVICE KIT,TRANSMISSION CONTROL VALVE | | (101822)-(102391) |
| 3 | 17M-15-05151 | SERVICE KIT,TRANSMISSION CONTROL VALVE | | (101680)-(101821) |
| 3 | 17M-15-05150 | SERVICE KIT,TRANSMISSION CONTROL VALVE | | 25001-(101679) |
| 3 | 07000-72012 | O-RING,(F2320-59A1A-5 ) | | 25001- |
| 3 | 07000-72014 | O-RING,(F2320-59A1A-10 ) | | (102392)- |
| 3 | 07000-72015 | O-RING,(F2320-59A1 -11 ) | | (101822)-(102391) |
| 3 | 07000-72014 | O-RING,(F2320-59A1 -11- ) | | 25001-(101821) |
| 3 | 17M-22-47840 | O-RING,(F2320-59A1A-6 ) | | (101680)- |
| 3 | 17M-15-45960 | O-RING,(F2320-59A1 -6- ) | | 25001-(101679) |
| 3 | 17M-15-45990 | O-RING,(F2320-59A1A-9 ) | | (102392)- |
| 3 | 17M-15-45970 | O-RING,(F2320-59A1 -9 ) | | 25001-(102391) |
| 3 | 195-15-75531 | GASKET,(F2320-59A1A-1 ) | | (101680)- |
| 3 | 195-15-75530 | GASKET,(F2320-59A1 -1- ) | | 25001-(101679) |
| 3 | 195-15-75740 | O-RING,(F2320-59A1A-14 ) | | 25001- |
| 3 | 209-38-12490 | RING,(F2320-59A1 -10 ) | | 25001-(102391) |
| 4 | 17M-15-05160 | SERVICE KIT,TRANSMISSION MAIN RELIEF VALVE | | 25001- |
| 4 | 07000-73030 | O-RING,(F2320-62A1 -25 ) | | 25001- |
| 4 | 17M-22-47810 | O-RING,(F2320-62A1 -4 ) | | 25001- |
| 4 | 17M-22-47810 | O-RING,(F2320-62A1 -13 ) | | 25001- |
| 4 | 17M-22-47810 | O-RING,(F2320-62A1 -22 ) | | 25001- |
