| Item | Part No. | Part Name | Qty | Serial No. |
| 723-61-05400 | VALVE ASS'Y | 3034- | ||

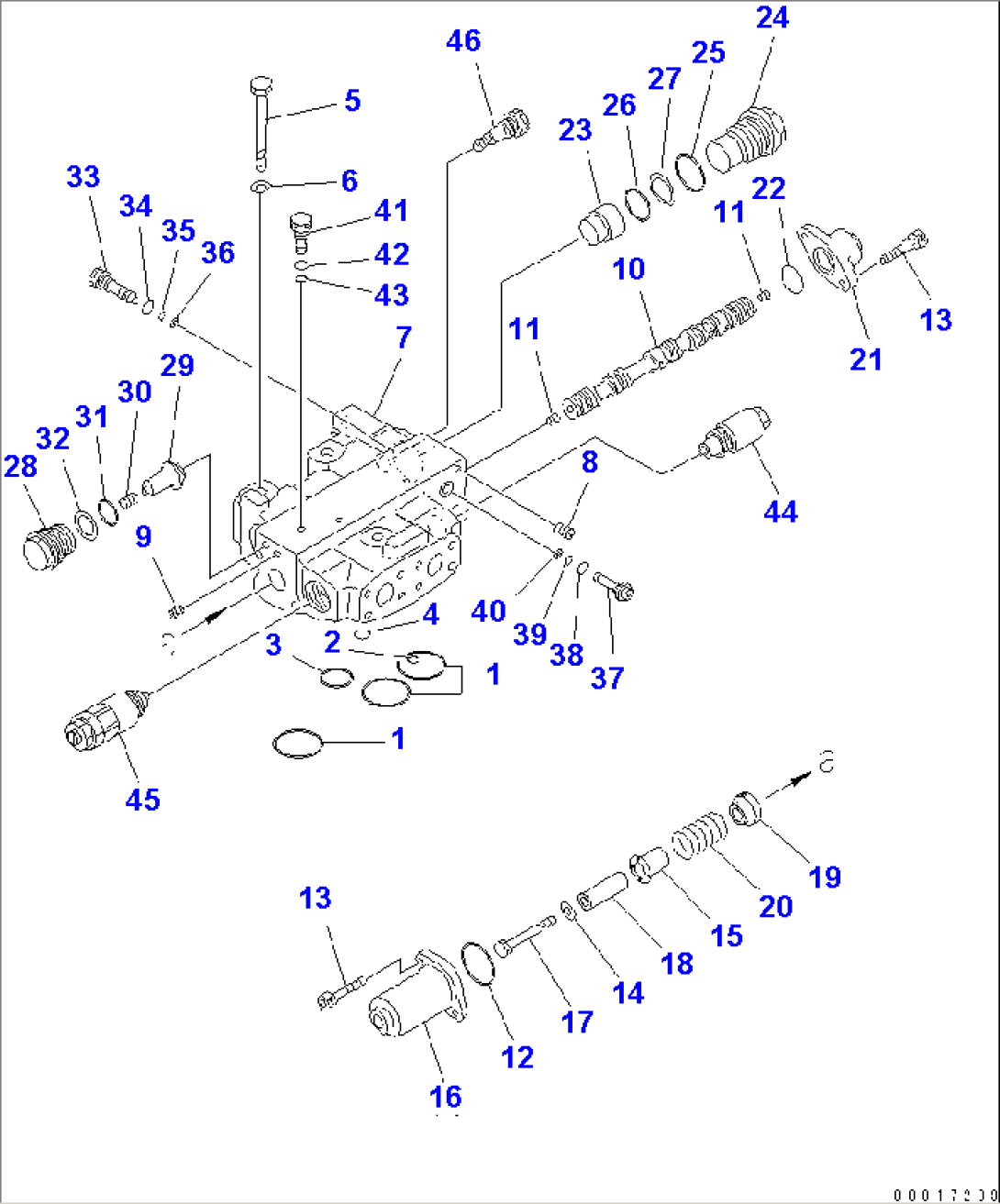

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1669-01A0 AND Y1669-02A0. | ||||
| 1 | 07000-03048 | O-RING | 3034- | |
| 2 | 07000-01009 | O-RING | 3034- | |
| 3 | 07000-13030 | O-RING | 3034- | |
| 4 | 07000-12012 | O-RING | 3034- | |
| 5 | 01010-61485 | BOLT | 3034- | |
| 6 | 01643-31445 | WASHER | 3034- | |
| 723-61-12100 | VALVE ASS'Y | 3034- | ||
| 7 | \6\ | BLOCK | 3034- | |
| 8 | \6\ | PLUG | 3034- | |
| 9 | \6\ | PLUG | 3034- | |
| 10 | \6\ | SPOOL | 3034- | |
| 11 | \6\ | PLUG | 3034- | |
| 12 | 07430-71380 | O-RING | 3034- | |
| 13 | 01252-60820 | BOLT | 3034- | |
| 14 | 01643-31032 | WASHER | 3034- | |
| 15 | 723-63-31670 | RETAINER | 3034- | |
| 16 | 723-63-31710 | CASE | 3034- | |
| 17 | 01010-81075 | BOLT | 3034- | |
| 18 | 723-63-31720 | SPACER | 3034- | |
| 19 | 723-63-31730 | RETAINER | 3034- | |
| 20 | 723-63-31740 | SPRING | 3034- | |
| 21 | 723-63-31790 | CASE | 3034- | |
| 22 | 100-30-15140 | O-RING | 3034- | |
| 23 | \6\ | RETAINER | 3034- | |
| 24 | 723-62-31720 | PLUG | 3034- | |
| 25 | 700-61-49160 | O-RING | 3034- | |
| 26 | 723-63-31850 | O-RING | 3034- | |
| 27 | 723-63-31860 | RING | 3034- | |
| 28 | 709-74-92821 | PLUG | 3034- | |
| 29 | 709-94-92811 | VALVE | 3034- | |
| 30 | 709-94-91751 | SPRING | 3034- | |
| 31 | 700-93-11320 | O-RING | 3034- | |
| 32 | 700-93-11330 | RING | 3034- | |
| 33 | 723-62-31710 | PLUG | 3034- | |
| 34 | 07002-11423 | O-RING | 3034- | |
| 35 | 07000-11007 | O-RING | 3034- | |
| 36 | 07001-01007 | RING,BACK-UP | 3034- | |
| 37 | 723-63-31621 | PLUG | 3034- | |
| 38 | 07002-11023 | O-RING | 3034- | |
| 39 | 07000-11005 | O-RING | 3034- | |
| 40 | 07001-01005 | RING | 3034- | |
| 41 | 723-63-41530 | PLUG | 3034- | |
| 42 | 07002-01423 | O-RING | 3034- | |
| 43 | 07000-01007 | O-RING | 3034- | |
| 44 | (723-40-85100) | VALVE ASS'Y,SUCTION | 3034- | |
| 45 | (709-70-74600) | VALVE ASS'Y,SUCTION AND SAFETY | 3034- | |
| 46 | (723-60-23400) | VALVE ASS'Y,CHECK | 3034- |
