| Item | Part No. | Part Name | Qty | Serial No. |

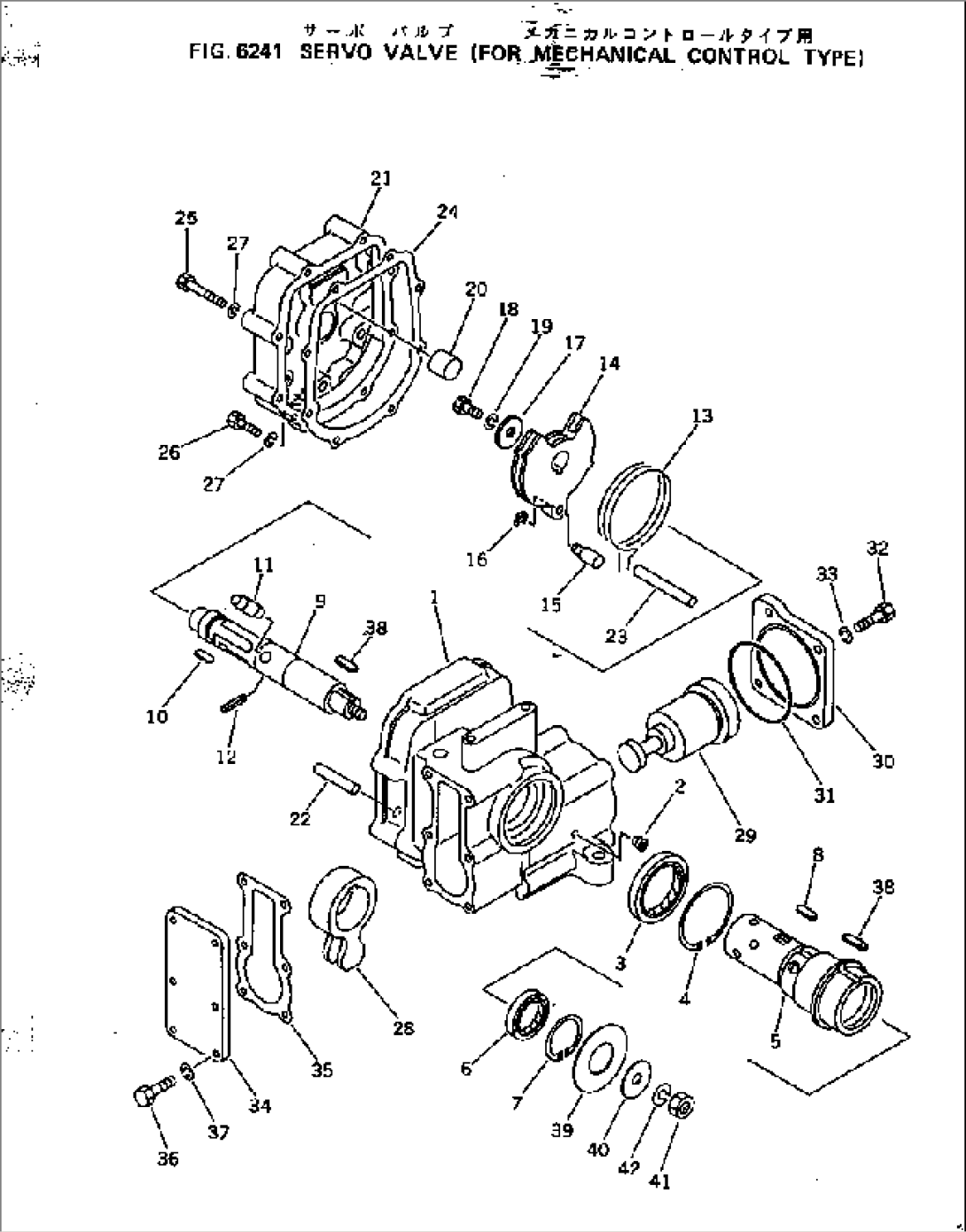

| 702-12-22000 | SERVO VALVE ASS'Y | 1501- | ||
| 1 | 702-12-13110 | HOUSING | 1501- | |
| 2 | 07043-00108 | PLUG | 1501- | |
| 3 | 702-12-12410 | SEAL | 1501- | |
| 4 | 04065-06020 | RING | 1501- | |
| 5 | 702-12-12160 | SLEEVE | 1501- | |
| 6 | 702-12-12390 | SEAL | 1501- | |
| 7 | 04065-04018 | RING | 1501- | |
| 8 | 04000-00520 | KEY | 1501- | |
| 9 | 702-12-12170 | ROTOR | 1501- | |
| 10 | 04000-00515 | KEY | 1501- | |
| 11 | 702-12-12180 | PIN | 1501- | |
| 12 | 04025-00316 | PIN | 1501- | |
| 13 | 702-12-12251 | SPRING | 1501- | |
| 14 | 702-12-12221 | DETENT | 1501- | |
| 15 | 702-12-12230 | PIN | 1501- | |
| 16 | 702-12-12240 | RING | 1501- | |
| 17 | 702-12-12420 | WASHER | 1501- | |
| 18 | 01010-50816 | BOLT | 1501- | |
| 19 | 01602-20825 | WASHER | 1501- | |
| 20 | 702-12-12340 | PIN | 1501- | |
| 21 | 702-12-13120 | COVER | 1501- | |
| 22 | 702-12-12150 | PIN | 1501- | |
| 23 | 702-12-12140 | PIN | 1501- | |
| 24 | 702-12-13140 | GASKET | 1501- | |
| 25 | 01010-50845 | BOLT | 1501- | |
| 26 | 01010-50835 | BOLT | 1501- | |
| 27 | 01602-20825 | WASHER | 1501- | |
| 28 | 702-12-12210 | LEVER | 1501- | |
| 29 | 702-12-12191 | PISTON | 1501- | |
| 30 | 702-12-13160 | COVER | 1501- | |
| 31 | 07000-22070 | O-RING | 1501- | |
| 32 | 01010-50825 | BOLT | 1501- | |
| 33 | 01602-20825 | WASHER | 1501- | |
| 34 | 702-12-13130 | COVER | 1501- | |
| 35 | 702-12-13150 | GASKET | 1501- | |
| 36 | 01010-50825 | BOLT | 1501- | |
| 37 | 01602-20825 | WASHER | 1501- | |
| 38 | 04000-00520 | KEY | 1501- | |
| 39 | 702-12-12280 | WASHER | 1501- | |
| 40 | 702-12-12270 | WASHER | 1501- | |
| 41 | 01580-11008 | NUT | 1501- | |
| 42 | 01602-21030 | WASHER | 1501- |
