| Item | Part No. | Part Name | Qty | Serial No. |
| ==================== | ||||
| (175-65-00325) | BODY ASS'Y | 36534- | ||

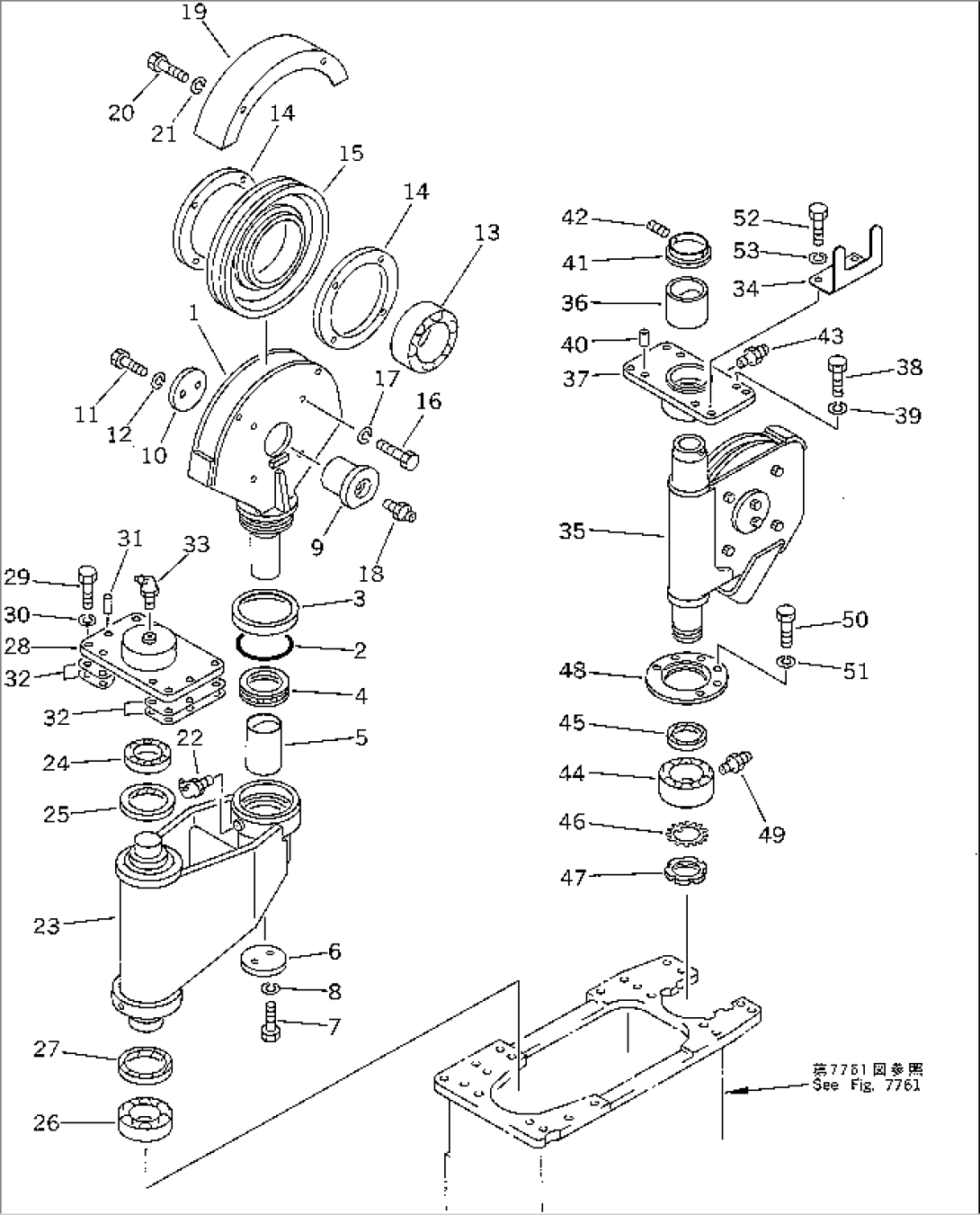

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T2620-02A0 TO T2620-07A0. | ||||
| 1 | 170-65-15233 | HOUSING,SHEAVE | 36534- | |
| 2 | 07000-15080 | O-RING | 36534- | |
| 3 | 170-65-15310 | COVER,DUST | 36534- | |
| 4 | 130-09-14530 | BEARING | 36534- | |
| 5 | 170-65-15290 | BUSHING | 36534- | |
| 6 | 175-65-35160 | HOLDER | 36534- | |
| 7 | 01010-81030 | BOLT | 36534- | |
| 8 | 01602-21030 | WASHER,SPRING | 36534- | |
| 9 | 170-65-15271 | SHAFT | 36534- | |
| 10 | 170-65-15280 | WASHER | 36534- | |
| 11 | 01010-81235 | BOLT | 36534- | |
| 12 | 01602-21236 | WASHER,SPRING | 36534- | |
| 13 | 130-09-13193 | BEARING | 36534- | |
| 14 | 170-65-15252 | RETAINER | 36534- | |
| 15 | 170-65-15261 | SHEAVE | 36534- | |
| 16 | 01010-81020 | BOLT | 36534- | |
| 17 | 01602-21030 | WASHER,SPRING | 36534- | |
| 18 | 07020-00000 | FITTING,GREASE | 36534- | |
| 19 | 170-65-15240 | COVER | 36534- | |
| 20 | 01010-80812 | BOLT | 36534- | |
| 21 | 01602-20825 | WASHER,SPRING | 36534- | |
| 22 | 07020-00675 | FITTING,GREASE | 36534- | |
| 23 | 175-65-35111 | BRACKET | 36534- | |
| 24 | 06000-32209 | BEARING | 36534- | |
| 25 | 130-09-12710 | SEAL,DUST | 36534- | |
| 26 | 06000-32210 | BEARING | 36534- | |
| 27 | 130-09-12720 | SEAL,DUST | 36534- | |
| 28 | 175-65-35120 | COVER | 36534- | |
| 29 | 01010-81235 | BOLT | 36534- | |
| 30 | 01602-21236 | WASHER,SPRING | 36534- | |
| 31 | 04020-01024 | PIN,DOWEL | 36534- | |
| 32 | 175-65-35130 | SHIM, 0.2MM | 36534- | |
| 32 | 175-65-35140 | SHIM, 0.3MM | 36534- | |
| 32 | 175-65-35150 | SHIM, 0.5MM | 36534- | |
| 33 | 07020-00675 | FITTING,GREASE | 36534- | |
| 34 | 175-65-35260 | STOPPER | 36534- | |
| 35 | 154-65-35171 | HOUSING,SHEAVE | 36534- | |
| 36 | 175-65-35230 | BUSHING | 36534- | |
| 37 | 175-65-35220 | HOLDER | 36534- | |
| 38 | 01010-81230 | BOLT | 36534- | |
| 39 | 01602-21236 | WASHER,SPRING | 36534- | |
| 40 | 04020-01024 | PIN,DOWEL | 36534- | |
| 41 | 175-65-35241 | COVER,DUST | 36534- | |
| 42 | 01210-50408 | SCREW | 36534- | |
| 43 | 07020-00000 | FITTING,GREASE | 36534- | |
| 44 | 130-09-14510 | BEARING | 36534- | |
| 45 | 130-09-12350 | SEAL,OIL | 36534- | |
| 46 | 01658-04823 | WASHER,LOCK | 36534- | |
| 47 | 01530-04812 | NUT | 36534- | |
| 48 | 175-65-35191 | RETAINER | 36534- | |
| 49 | 07020-00000 | FITTING,GREASE | 36534- | |
| 50 | 01010-81230 | BOLT | 36534- | |
| 51 | 01602-21236 | WASHER,SPRING | 36534- | |
| 52 | 01010-81235 | BOLT | 36534- | |
| 53 | 01602-21236 | WASHER,SPRING | 36534- | |
| ==================== |
