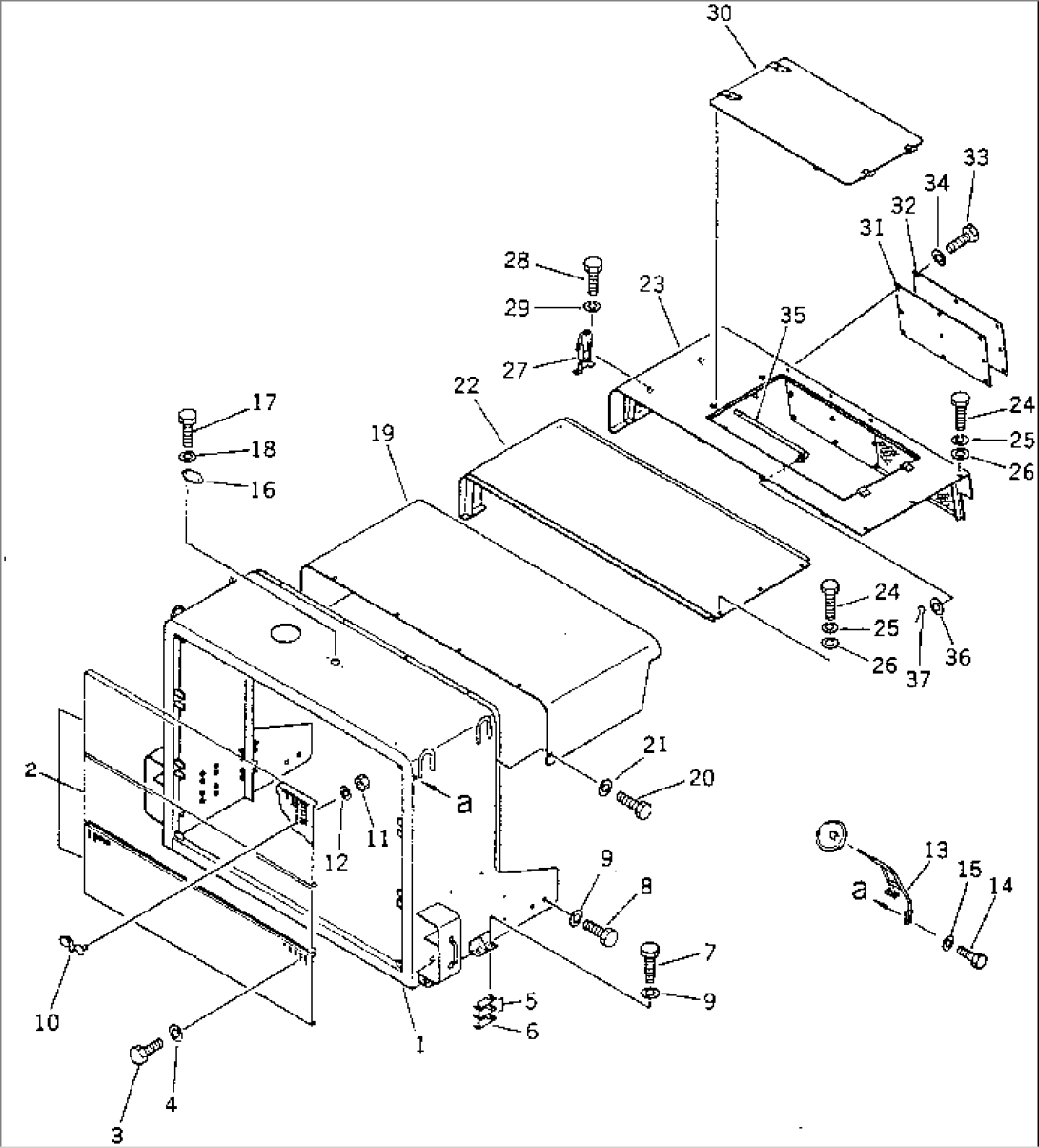

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-11210 | GUARD | 1002- | |
| 2 | 561-54-11220 | GRILLE | 1002- | |
| 3 | 01010-51225 | BOLT | 1002- | |
| 4 | 01643-31232 | WASHER | 1002- | |
| 5 | 566-54-11890 | SHIM¤ 2.3MM | 1002- | |
| 6 | 281-20-15411 | SHIM¤ 1.0MM | 1002- | |
| 7 | 01010-51630 | BOLT | 1002- | |
| 8 | 01010-51635 | BOLT | 1002- | |
| 9 | 01643-31645 | WASHER | 1002- | |
| 10 | 565-54-14430 | PLATE¤ MARK | 1002- | |
| 11 | 01580-11210 | NUT | 1002- | |
| 12 | 01643-21232 | WASHER | 1002- | |
| 13 | 561-54-11610 | STAY | 1002- | |
| 14 | 01010-51225 | BOLT | 1002- | |
| 15 | 01643-31232 | WASHER | 1002- | |
| 16 | 561-54-11430 | PLATE | 1002- | |
| 17 | 01010-51016 | BOLT | 1002- | |
| 18 | 01643-31032 | WASHER | 1002- | |
| 19 | 561-54-11230 | HOOD | 1002- | |
| 20 | 01010-51225 | BOLT | 1002- | |
| 21 | 01643-31232 | WASHER | 1002- | |
| 22 | 561-54-11240 | HOOD | 1002- | |
| 23 | 561-54-11250 | HOOD | 1002- | |
| 24 | 01010-51225 | BOLT | 1002- | |
| 25 | 01602-21236 | WASHER | 1002- | |
| 26 | 01643-31232 | WASHER | 1002- | |
| 27 | 581-22-12410 | CATCHER | 1002- | |
| 28 | 01010-50820 | BOLT | 1002- | |
| 29 | 01602-20825 | WASHER | 1002- | |
| 30 | 561-54-11420 | COVER | 1002- | |
| 31 | 561-54-11370 | PLATE | 1002- | |
| 32 | 561-54-11380 | PLATE | 1002- | |
| 33 | 01010-51020 | BOLT | 1002- | |
| 34 | 01643-21032 | WASHER | 1002- | |
| 35 | 281-56-11380 | ROD | 1002- | |
| 36 | 01641-21016 | WASHER | 1002- | |
| 37 | 04050-13020 | PIN | 1002- |
