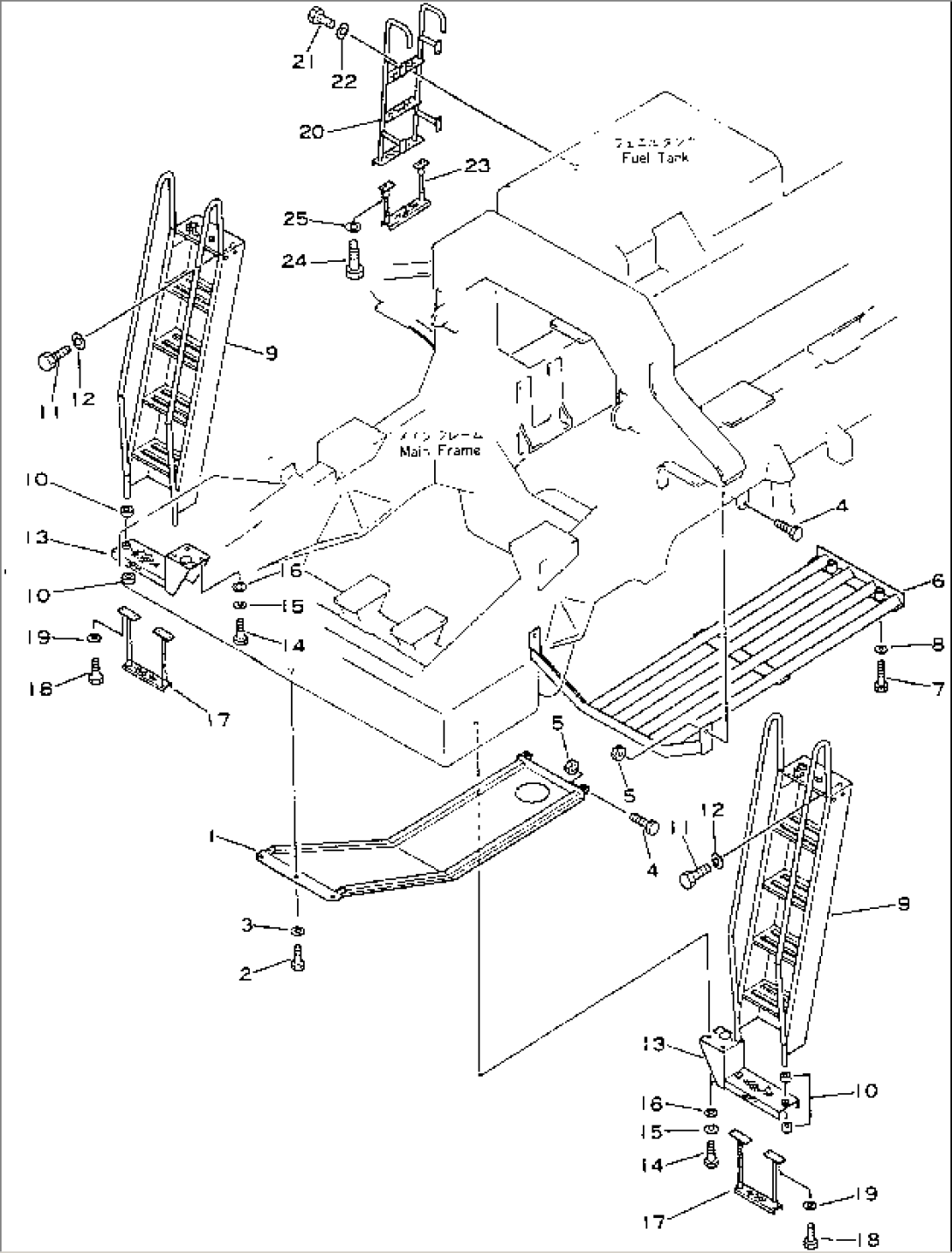

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-11360 | GUARD | 1002- | |
| 2 | 01010-52035 | BOLT | 1002- | |
| 3 | 01643-32060 | WASHER | 1002- | |
| 4 | 01010-53085 | BOLT | 1002- | |
| 5 | 07165-13033 | NUT | 1002- | |
| 6 | 561-54-11390 | GUARD | 1002- | |
| 7 | 01010-52095 | BOLT | 1002- | |
| 8 | 01643-32060 | WASHER | 1002- | |
| 9 | 561-54-11141 | STEP | 1002- | |
| 10 | 581-07-11690 | RUBBER | 1002- | |
| 11 | 01010-51230 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 561-54-11180 | BRACKET | 1002- | |
| 14 | 01010-51225 | BOLT | 1002- | |
| 15 | 01602-21236 | WASHER | 1002- | |
| 16 | 01643-31232 | WASHER | 1002- | |
| 17 | 581-54-11371 | STEP | 1002- | |
| 18 | 01010-51225 | BOLT | 1002- | |
| 19 | 01643-31232 | WASHER | 1002- | |
| 20 | 561-54-11151 | STEP | 1002- | |
| 21 | 01010-51025 | BOLT | 1002- | |
| 22 | 01643-31032 | WASHER | 1002- | |
| 23 | 566-54-11372 | STEP | 1002- | |
| 24 | 01010-51230 | BOLT | 1002- | |
| 25 | 01643-31232 | WASHER | 1002- |
