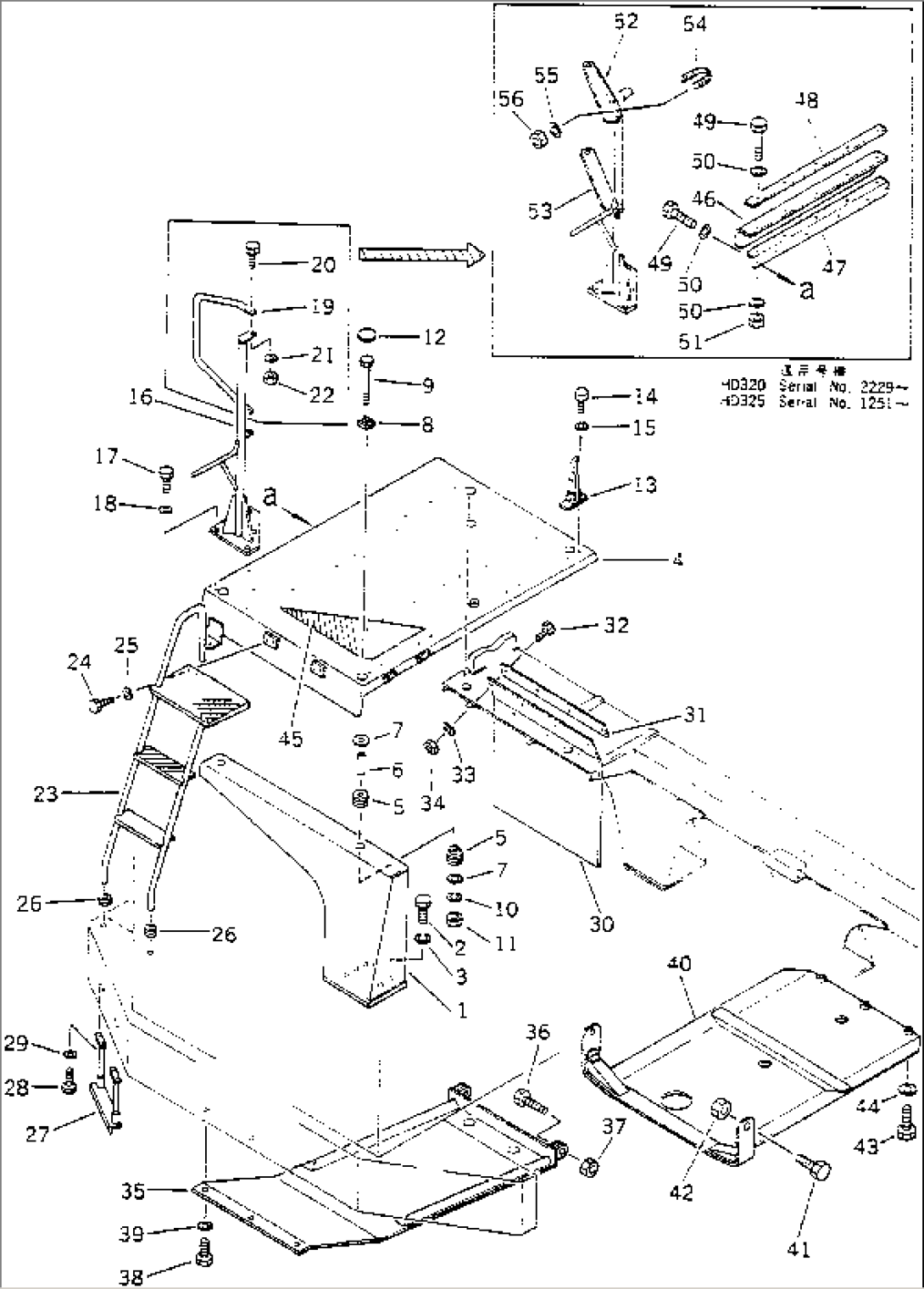

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-12124 | SUPPORT | 1002- | |
| 2 | 01010-52270 | BOLT | 1002- | |
| 3 | 01602-22268 | WASHER | 1002- | |
| 4 | 566-54-12196 | PLATFORM,R.H. | 1002- | |
| 5 | 566-54-12212 | CUSHION | 1002- | |
| 6 | 566-54-21910 | BUSHING | 1002- | |
| 7 | 566-54-21920 | PLATE | 1002- | |
| 8 | 566-54-21930 | PLATE | 1002- | |
| 9 | 01011-82020 | BOLT | 1002- | |
| 10 | 01602-22060 | WASHER | 1002- | |
| 11 | 01580-22016 | NUT | 1002- | |
| 12 | 09414-00053 | CAP | 1002- | |
| 13 | 581-22-12410 | CATCHER | 1002- | |
| 14 | 01010-50820 | BOLT | 1002- | |
| 15 | 01602-20825 | WASHER | 1002- | |
| 16 | 566-54-12423 | STAY,L.H. | 1042- | |
| 16 | \0\566-54-12422 | STAY,L.H. | 1002-1041 | |
| 17 | 01010-51025 | BOLT | 1002- | |
| 18 | 01643-31032 | WASHER | 1002- | |
| 19 | 565-55-11211 | STAY,R.H. | 1002-2228 | |
| 20 | 01010-51025 | BOLT | 1002-2228 | |
| 21 | 01643-31032 | WASHER | 1002-2228 | |
| 22 | 01580-11008 | NUT | 1002-2228 | |
| 23 | 566-54-11663 | LADDER | 1002- | |
| 24 | 01010-51025 | BOLT | 1002- | |
| 25 | 01643-31032 | WASHER | 1002- | |
| 26 | 566-54-11340 | GROMMET | 1002- | |
| 27 | 566-54-11372 | STEP | 1002- | |
| 28 | 01010-51030 | BOLT | 1002- | |
| 29 | 01643-31032 | WASHER | 1002- | |
| 30 | 566-54-12570 | GUARD | 1002- | |
| 31 | 566-54-12580 | PLATE | 1002- | |
| 32 | 01010-51235 | BOLT | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 01580-11210 | NUT | 1002- | |
| 35 | 566-54-11712 | GUARD | 1002- | |
| 36 | 01010-53085 | BOLT | 1002- | |
| 37 | 07165-13033 | NUT | 1002- | |
| 38 | 01010-52045 | BOLT | 1002- | |
| 39 | 01643-32045 | WASHER | 1002- | |
| 40 | 566-54-11811 | GUARD | 1002- | |
| 41 | 01010-53085 | BOLT | 1002- | |
| 42 | 07165-13033 | NUT | 1002- | |
| 43 | 01010-52065 | BOLT | 1002- | |
| 44 | 01643-32060 | WASHER | 1002- | |
| 45 | 566-54-12831 | RUBBER | 1002- | |
| 46 | 566-54-18141 | SEAT | 1251- | |
| 47 | 566-54-18140 | ANGLE | 1251- | |
| 48 | 566-74-11310 | PLATE | 1251- | |
| 49 | 01010-51245 | BOLT | 1251- | |
| 50 | 01643-31232 | WASHER | 1251- | |
| 51 | 01580-11210 | NUT | 1251- | |
| 52 | 566-54-18310 | STAY | 1251- | |
| 53 | 566-54-18320 | STAY | 1251- | |
| 54 | 07283-24353 | CLIP | 1251- | |
| 55 | 01643-31032 | WASHER | 1251- | |
| 56 | 01590-01011 | NUT | 1251- |
