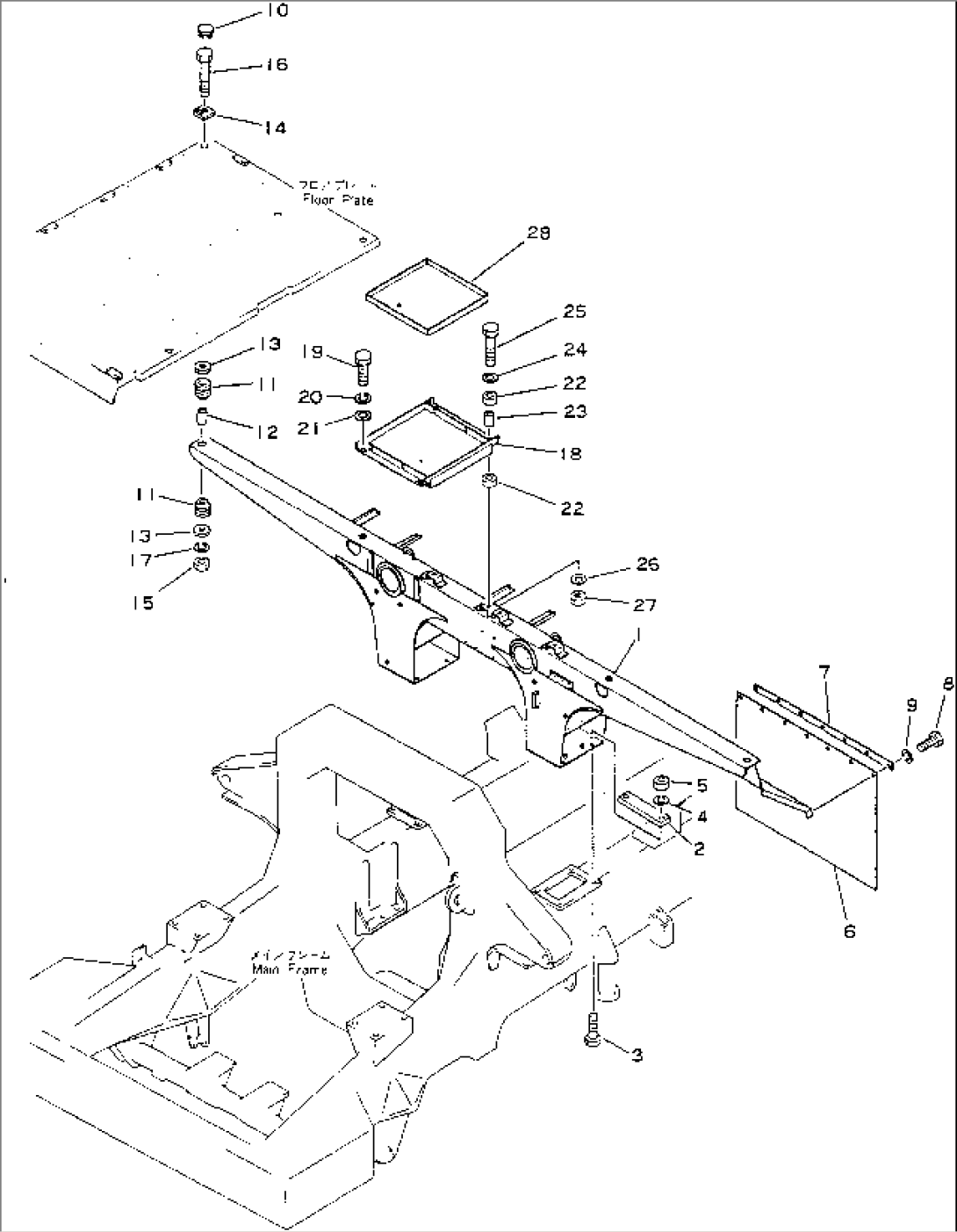

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-11280 | SUPPORT | 1002- | |
| 2 | 568-54-12130 | SEAT | 1002- | |
| 3 | 01010-52490 | BOLT | 1002- | |
| 4 | 01602-22472 | WASHER | 1002- | |
| 5 | 01580-22419 | NUT | 1002- | |
| 6 | 581-54-12380 | RUBBER | 1002- | |
| 7 | 581-54-12390 | PLATE | 1002- | |
| 8 | 01010-51225 | BOLT | 1002- | |
| 9 | 01602-21236 | WASHER | 1002- | |
| 10 | 09414-00053 | CAP | 1002- | |
| 11 | 566-54-12212 | CUSHION | 1002- | |
| 12 | 566-54-21910 | BUSHING | 1002- | |
| 13 | 566-54-21920 | PLATE | 1002- | |
| 14 | 566-54-21930 | PLATE | 1002- | |
| 15 | 01580-12016 | NUT | 1002- | |
| 16 | 01011-82020 | BOLT | 1002- | |
| 17 | 01602-22060 | WASHER | 1002- | |
| 18 | 569-54-12730 | BRACKET | 1002- | |
| 19 | 01010-51235 | BOLT | 1002- | |
| 20 | 01602-21236 | WASHER | 1002- | |
| 21 | 01643-31232 | WASHER | 1002- | |
| 22 | 411-03-11340 | CUSHION | 1002- | |
| 23 | 569-54-12220 | BUSHING | 1002- | |
| 24 | 581-61-11430 | WASHER | 1002- | |
| 25 | 01010-51475 | BOLT | 1002- | |
| 26 | 01643-31445 | WASHER | 1002- | |
| 27 | 01598-01415 | NUT | 1002- | |
| 28 | 566-54-11760 | SEAT | 1002- |
