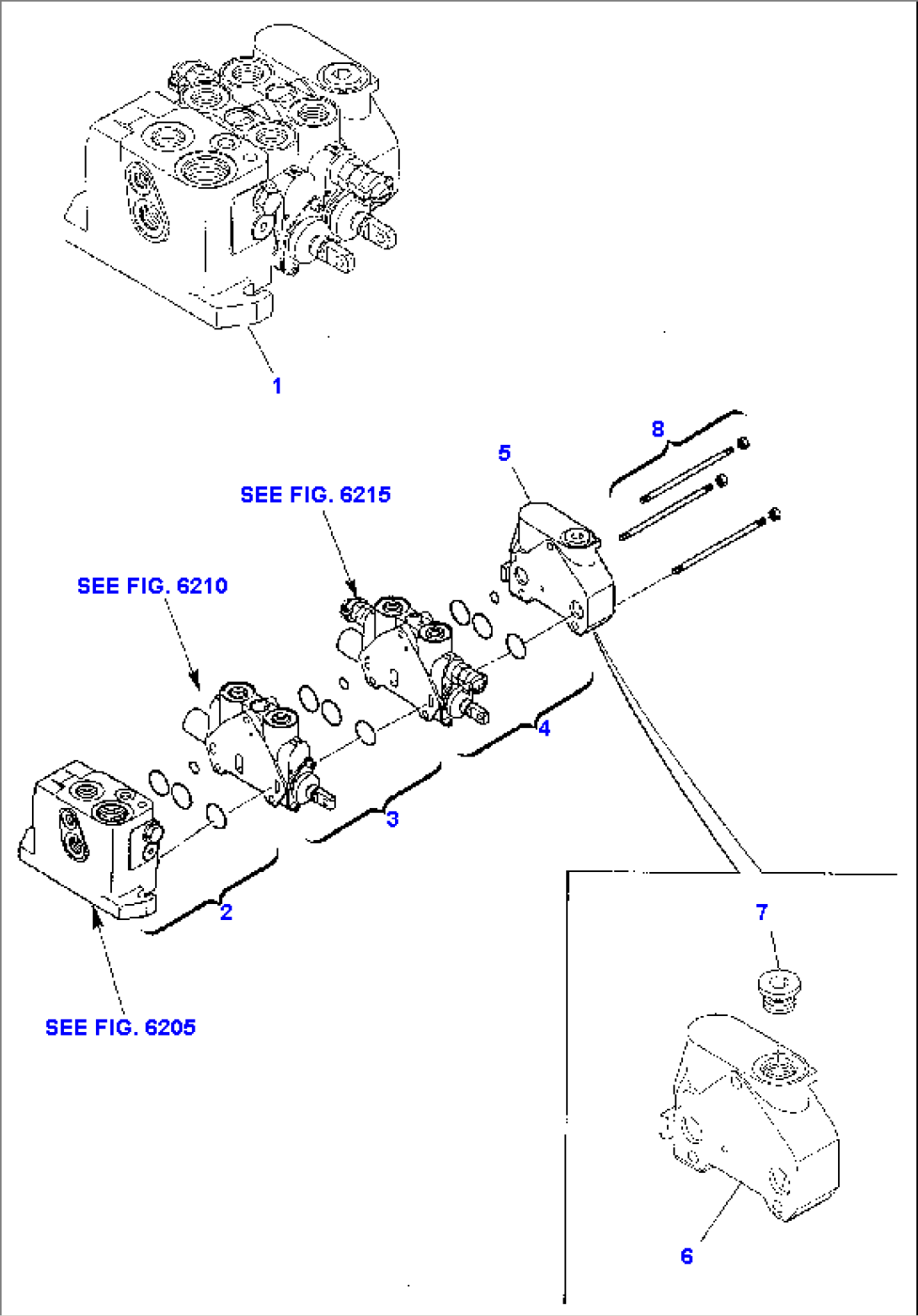

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 844020239 | SHOVEL CONTROL VALVE, ASSY | 15050001- | |
| 2 | 844200493 | INLET ELEMENT, ASSY | 15050001- | |
| 3 | 844200463 | FLOATING BLOCK SHOVEL LIFTING, ASSY | 15050001- | |
| 4 | 844200495 | BLOCK SHOVEL DUMPING WITH RETURN TO DIG, ASSY | 15050001- | |
| 5 | 844200494 | OUTLET SECTION, ASSY | 15050001- | |
| 6 | 844200616 | OUTLET HOUSING | 15050001- | |
| 7 | 844200411 | PLUG | 15050001- | |
| 8 | 844200612 | TIE RODS KIT | 15050001- | |
| SEE FIG. 6205 | ||||
| SEE FIG. 6210 | ||||
| SEE FIG. 6215 |
