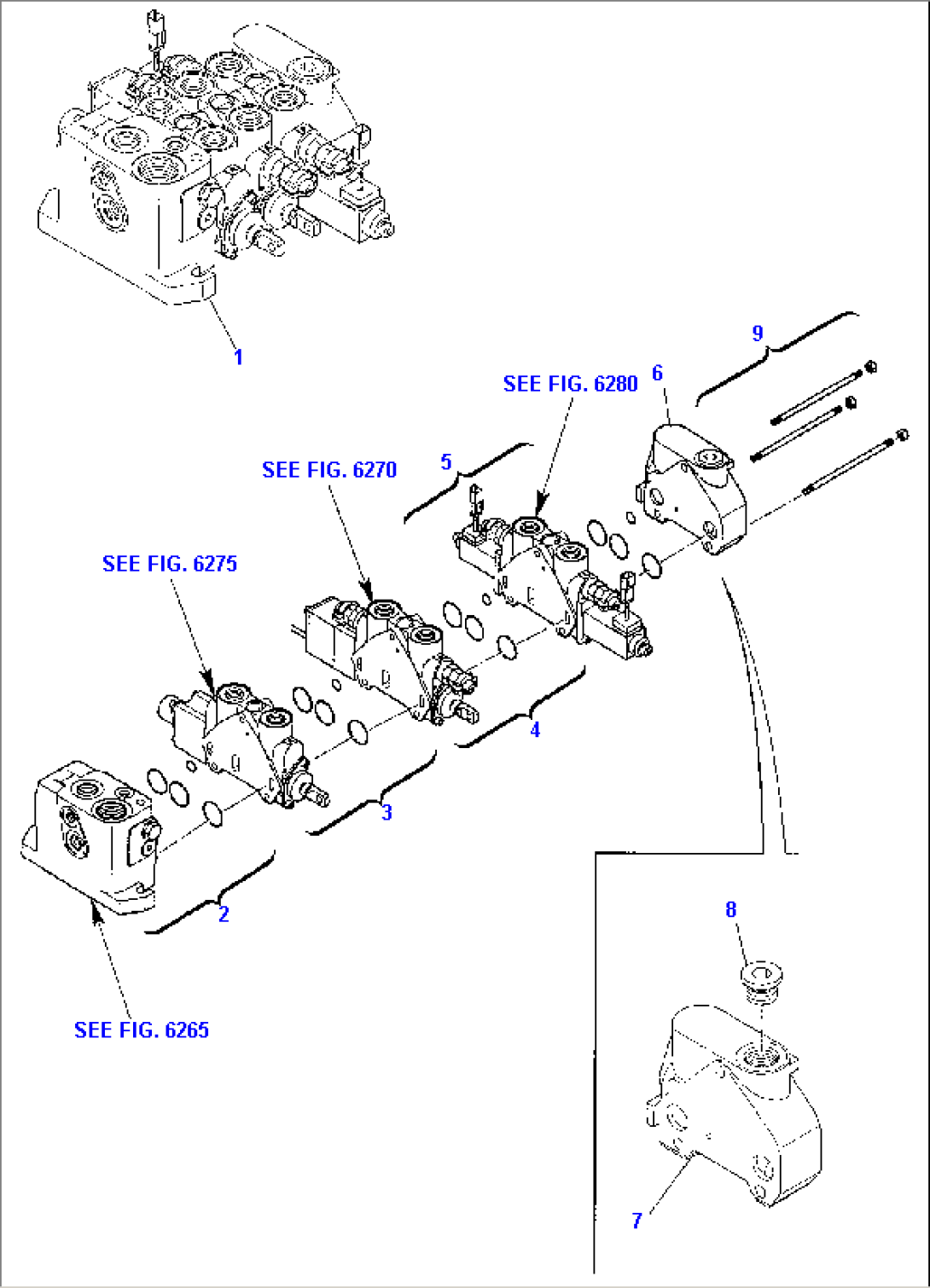

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 844020267 | SHOVEL CONTROL VALVE,ASSY | 15050001- | |
| 2 | 844200493 | INLET ELEMENT, ASSY | 15050001- | |
| 3 | 844200463 | BLOCK, SHOVEL LIFTING, ASSY | 15050001- | |
| 4 | 844200495 | BLOCK, SHOVEL DUMPING, ASSY | 15050001- | |
| 5 | 844200464 | BLOCK, BUCKET CONTROL ASSY | 15050001- | |
| 6 | 844200494 | OUTLET SECTION, ASSY | 15050001- | |
| 7 | 844200616 | OUTLET ELEMENT | 15050001- | |
| 8 | 844200411 | PLUG | 15050001- | |
| 9 | 844200465 | TIE RODS KIT | 15050001- | |
| SEE FIG. 6265 | ||||
| SEE FIG. 6270 | ||||
| SEE FIG. 6275 | ||||
| SEE FIG. 6280 |
