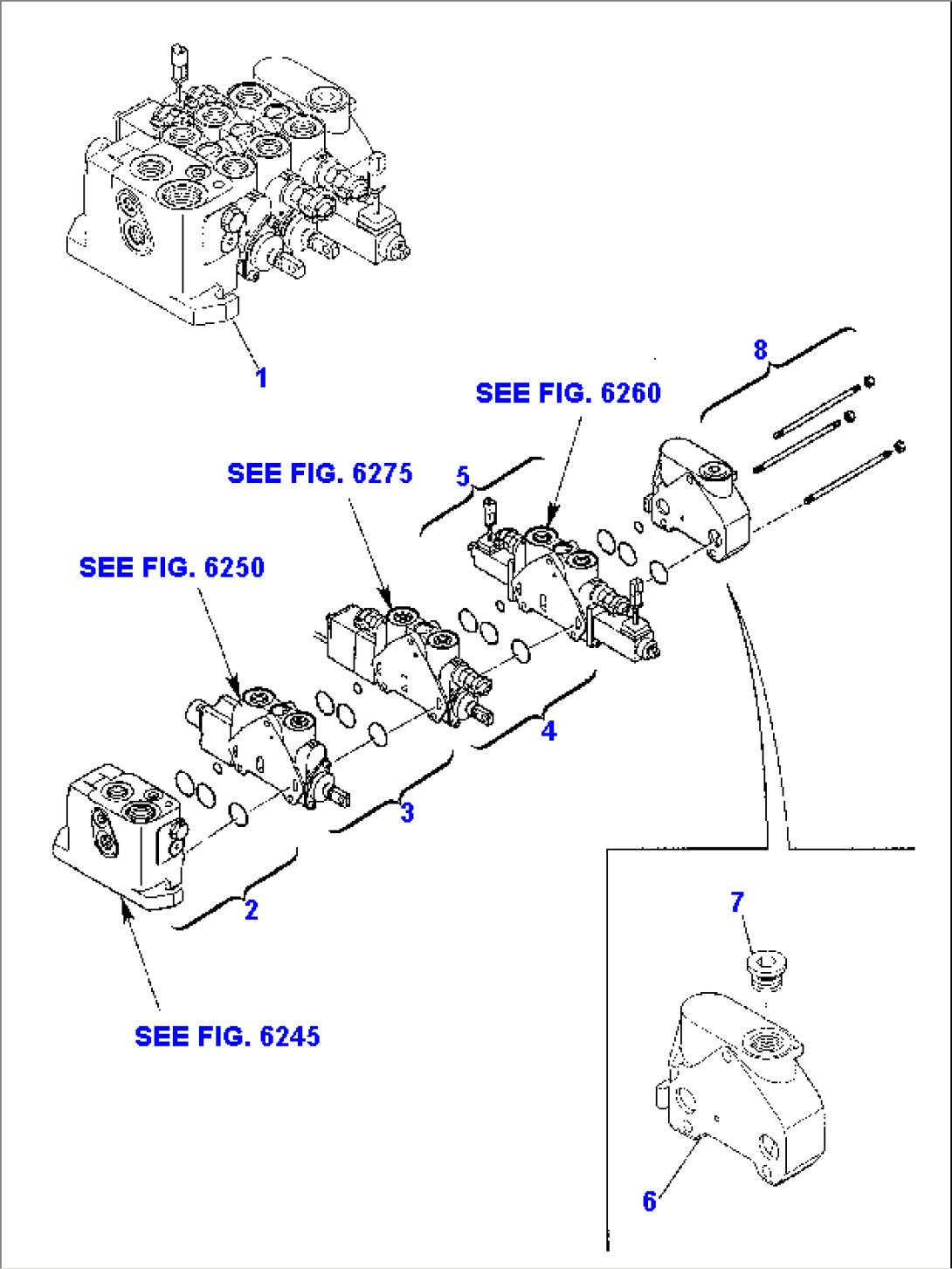

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 844020233 | SHOVEL CONTROL VALVE,ASSY | 97F20001- | |
| 2 | 844200609 | INLET ELEMENT, ASSY | 97F20001- | |
| 3 | 844200463 | BLOCK, SHOVEL LIFTING, ASSY | 97F20001- | |
| 4 | 844200466 | BLOCK, SHOVEL DUMPING, ASSY | 97F20001- | |
| 5 | 844200464 | BLOCK, BUCKET CONTROL, ASSY | 97F20001- | |
| 6 | 844200616 | OULET ELEMENT | 97F20001- | |
| 7 | 844200411 | PLUG | 97F20001- | |
| 8 | 844200465 | TIE RODS KIT | 97F20001- | |
| SEE FIG. 6245 | ||||
| SEE FIG. 6250 | ||||
| SEE FIG. 6260 | ||||
| SEE FIG. 6275 |
