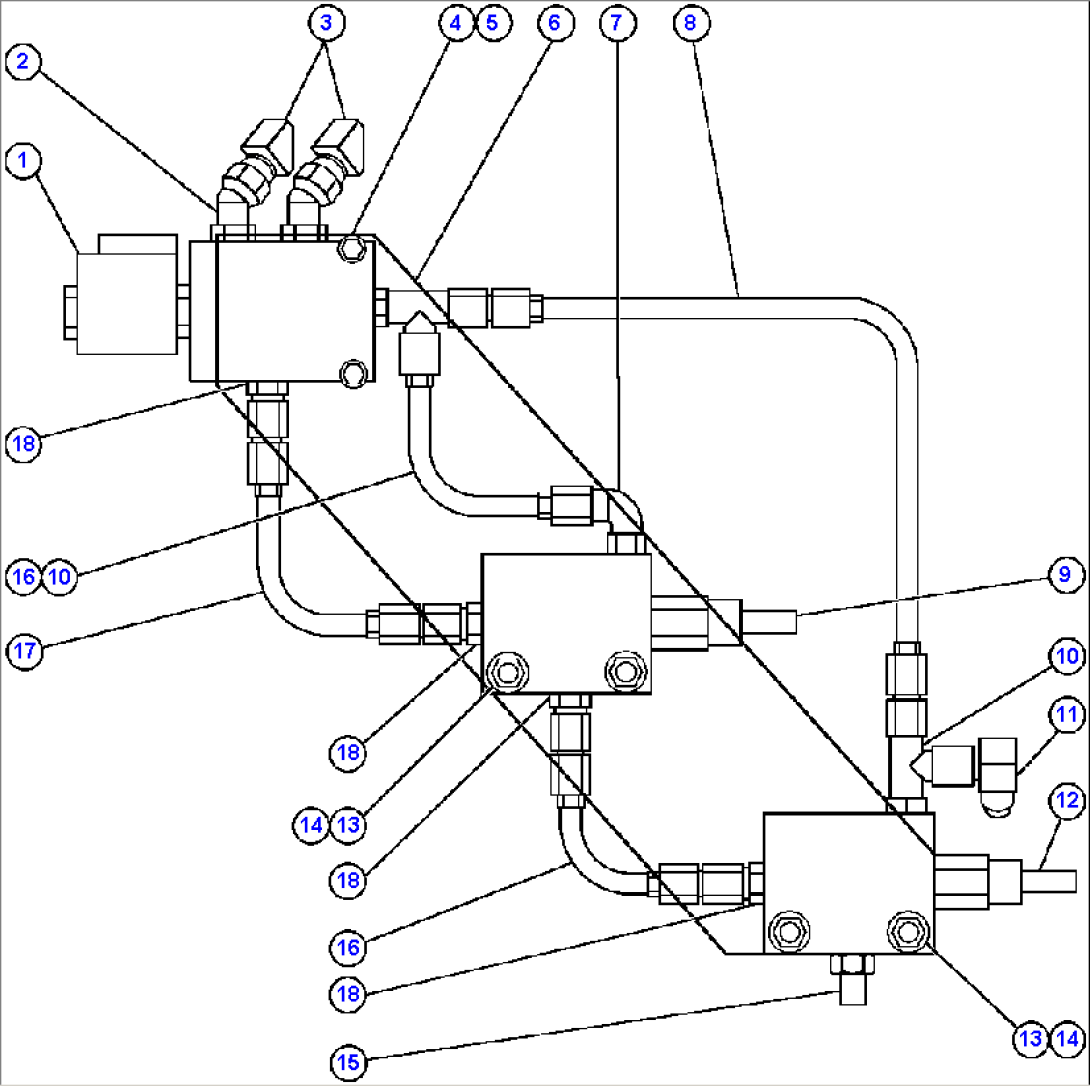

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0436 | SOLENOID VALVE ASSEMBLY | ||
| 1 | BF4622 | VALVE | ||
| 1 | BF0167 | COVER | ||
| 1 | BF4623 | COIL | ||
| 1 | BF0166 | PLATE, NAME | ||
| 1 | VE6628 | NUT | ||
| 1 | BF4625 | SEAL KIT | ||
| 2 | WB0535 | FITTING, ELBOW - 45 DEG | ||
| 3 | WB0368 | FITTING, ELBOW - 45 DEG | ||
| 4 | MM0052 | CAPSCREW - M6 X 1.00 X 45 | ||
| 5 | MM0711 | FLAT WASHER - M6 | ||
| 6 | EH3339 | PLATE, MOUNTING | ||
| 7 | WB0505 | FITTING, ELBOW - 90 DEG | ||
| 8 | EH3342 | TUBE | ||
| 9 | PC0438 | PRESSURE REDUCING VALVE ASSEMBLY | ||
| 9 | BF4636 | CARTRIDGE | ||
| 9 | BF4638 | SEAL KIT | ||
| 10 | WB0556 | FITTING, TEE | ||
| 11 | WB0374 | FITTING, ELBOW - 90 DEG | ||
| 12 | PC0437 | PRESSURE REDUCING VALVE ASSEMBLY | ||
| 12 | BF4634 | CARTRIDGE | ||
| 12 | BF4638 | SEAL KIT | ||
| 13 | MM0048 | CAPSCREW - M8 X 1.25 X 45 | ||
| 14 | MM0712 | FLAT WASHER - M8 | ||
| 15 | WB0576 | FITTING, STRAIGHT | ||
| 16 | EH3341 | TUBE | ||
| 17 | EH3340 | TUBE | ||
| 18 | WB0581 | FITTING, STRAIGHT |
