| Item | Part No. | Part Name | Qty | Serial No. |

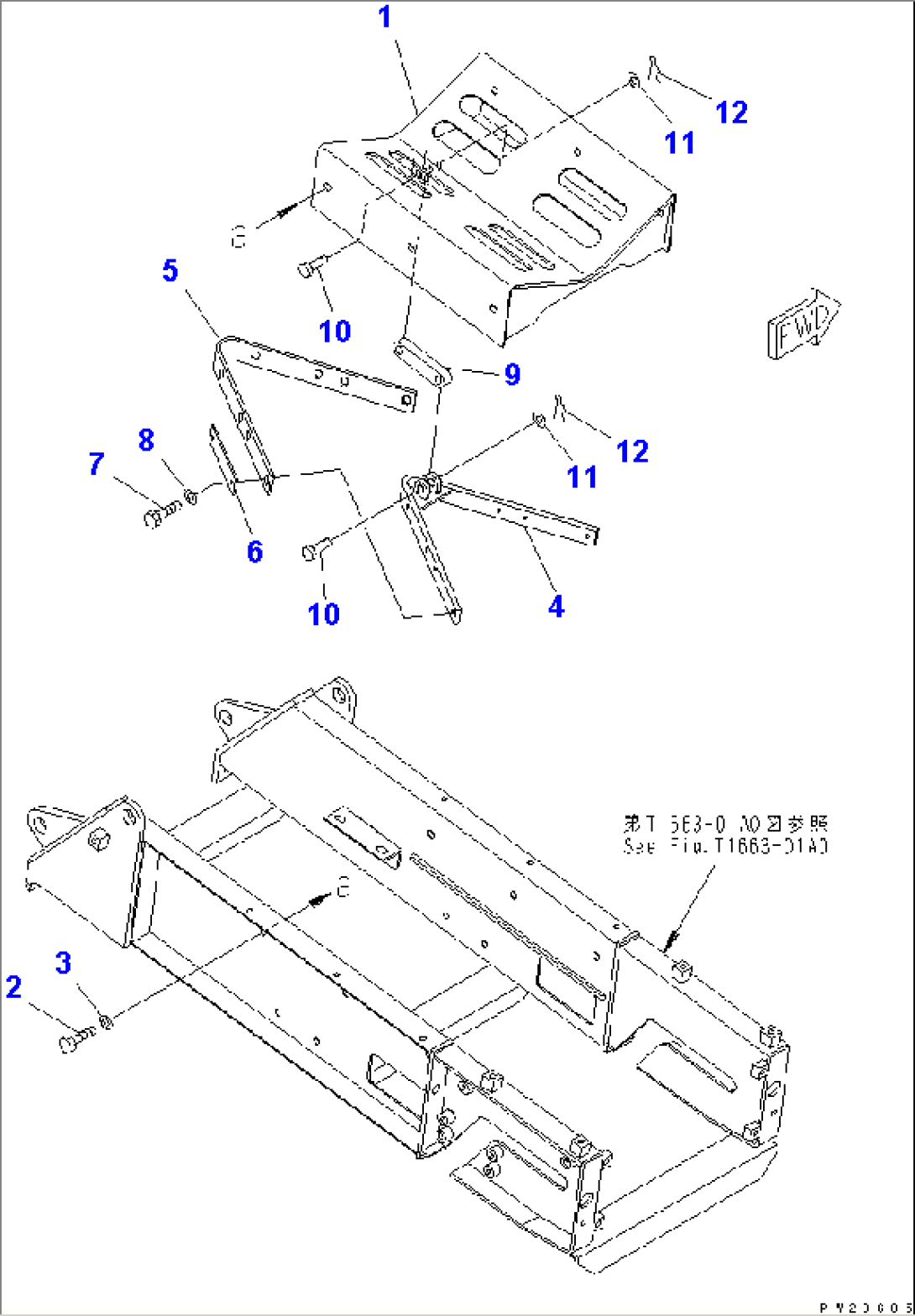

| (8230-75-5001) | SIDE CONVEYOR ASS'Y | 1301- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T1663-01A0 TO T1663-09A0. | ||||
| 1 | 8230-75-5341 | PLATE,SLIDE | 1301- | |
| 2 | 01010-81225 | BOLT | 1301- | |
| 3 | 01643-31232 | WASHER | 1301- | |
| 4 | 8230-75-5351 | BRACKET | 1301- | |
| 5 | 8230-75-5361 | SHEET | 1301- | |
| 6 | 567-04-41330 | PLATE | 1301- | |
| 7 | 01010-81025 | BOLT | 1301- | |
| 8 | 01643-31032 | WASHER | 1301- | |
| 9 | 8221-75-2570 | LINK | 1301- | |
| 10 | 04205-31650 | PIN | 1301- | |
| 11 | 01641-21626 | WASHER | 1301- | |
| 12 | 04052-11664 | PIN | 1301- |
