| Item | Part No. | Part Name | Qty | Serial No. |
| (8230-75-5001) | SIDE CONVEYOR ASS'Y | 1301- | ||

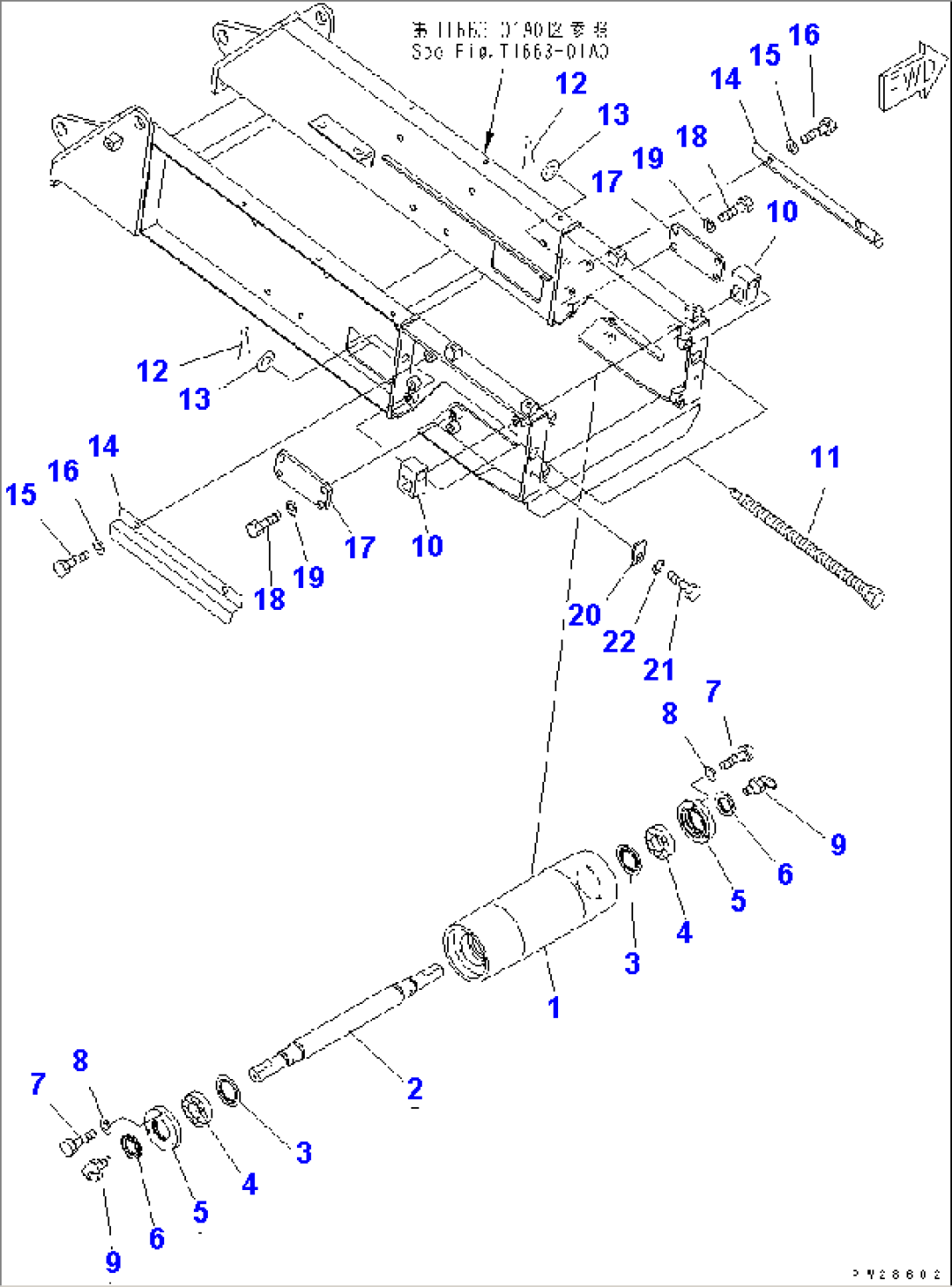

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T1663-01A0 TO T1663-09A0. | ||||
| 8230-75-5220 | PULLEY ASS'Y | 1301- | ||
| 1 | 8230-75-5230 | PULLEY | 1301- | |
| 2 | 8230-75-5240 | SHAFT | 1301- | |
| 3 | 8248-75-4640 | SEAL | 1301- | |
| 4 | 06300-06207 | BEARING | 1301- | |
| 5 | 8248-75-4660 | CAP | 1301- | |
| 6 | 8248-75-4670 | SEAL | 1301- | |
| 7 | 01010-80625 | BOLT | 1301- | |
| 8 | 01643-30623 | WASHER | 1301- | |
| 9 | 07020-00900 | FITTING,GREASE | 1301- | |
| 10 | 8248-75-4390 | GUIDE | 1301- | |
| 11 | 8298-75-1320 | BOLT | 1301- | |
| 12 | 04050-14028 | PIN | 1301- | |
| 13 | 01643-31645 | WASHER | 1301- | |
| 14 | 8230-75-2310 | COVER | 1301- | |
| 15 | 01010-81230 | BOLT | 1301- | |
| 16 | 01643-31232 | WASHER | 1301- | |
| 17 | 8298-75-1160 | PLATE | 1301- | |
| 18 | 01010-81230 | BOLT | 1301- | |
| 19 | 01643-31232 | WASHER | 1301- | |
| 20 | 8288-75-1460 | PLATE | 1301- | |
| 21 | 01010-81230 | BOLT | 1301- | |
| 22 | 01643-31232 | WASHER | 1301- |
