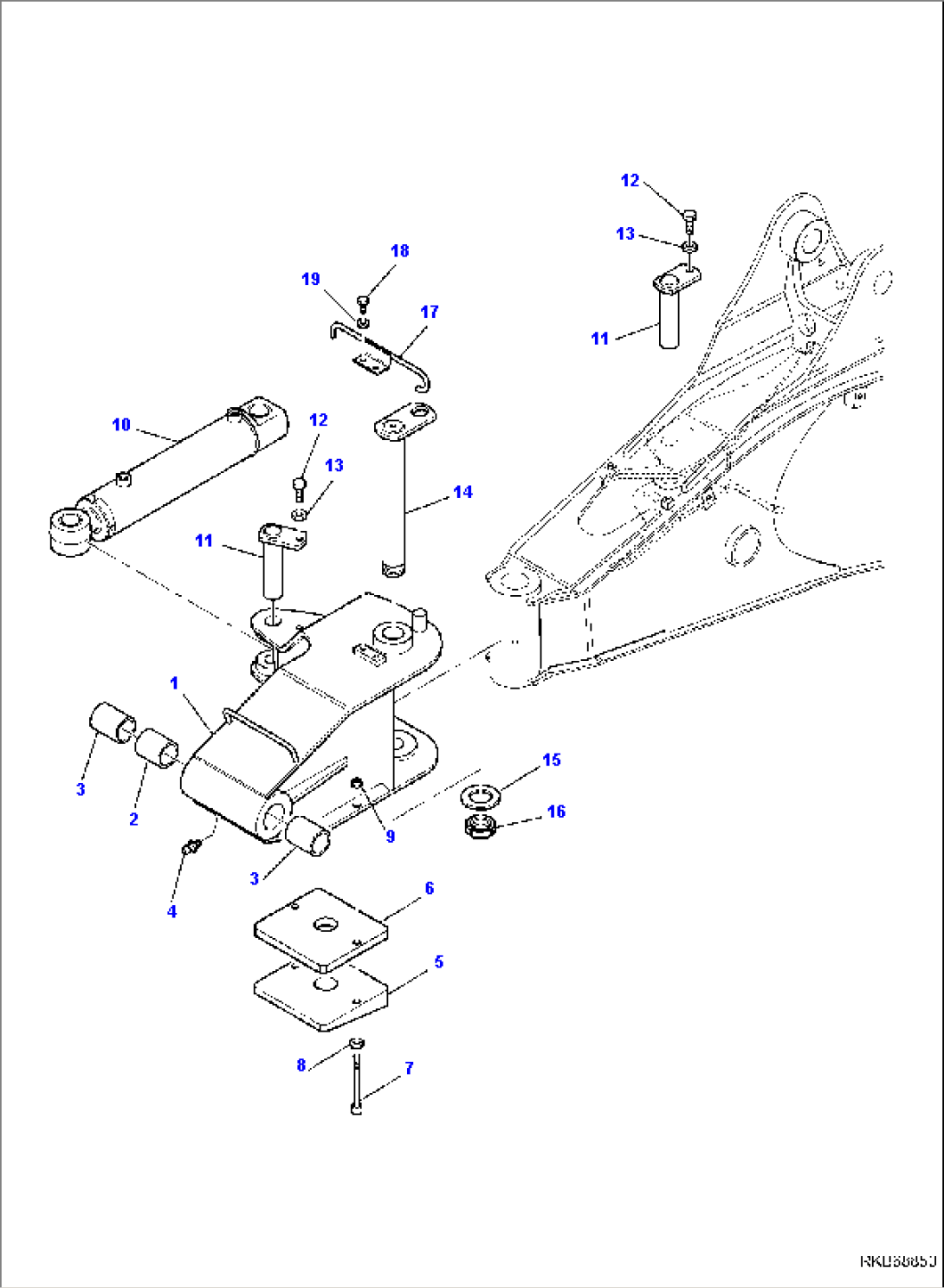

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-5210 | SUPPORT | F80003- | |
| 2 | 37B-09-4C002 | SPACER | F80003- | |
| 3 | 37B-09-4B005 | BUSHING | F80003- | |
| 4 | 21D-09-89140 | FITTING, GREASE | F80003- | |
| 5 | 42N-856-5410 | TEMPLATE | F80003- | |
| 6 | 42N-856-5420 | BUMPER | F80003- | |
| 7 | 01252-71270 | BOLT | F80003- | |
| 8 | 01643-11232 | WASHER | F80003- | |
| 9 | 21D-09-24200 | NUT | F80003- | |
| 10 | (42N-6C-13900) | SIDE DIGGING BOOM CYLINDER, ASSEMBLY | F80003- | |
| 11 | 37B-09-2P009 | PIN | F80003- | |
| 12 | 01010-81225 | BOLT | F80003- | |
| 13 | 01643-11232 | WASHER | F80003- | |
| 14 | 42N-856-5310 | PIN | F80003- | |
| 15 | 37B-09-4E067 | SPACER | F80003- | |
| 16 | 21D-09-71160 | NUT | F80003- | |
| 17 | 42N-856-5431 | SUPPORT | F80003- | |
| 18 | 01010-81020 | BOLT | F80003- | |
| 19 | 01643-11032 | WASHER | F80003- |
