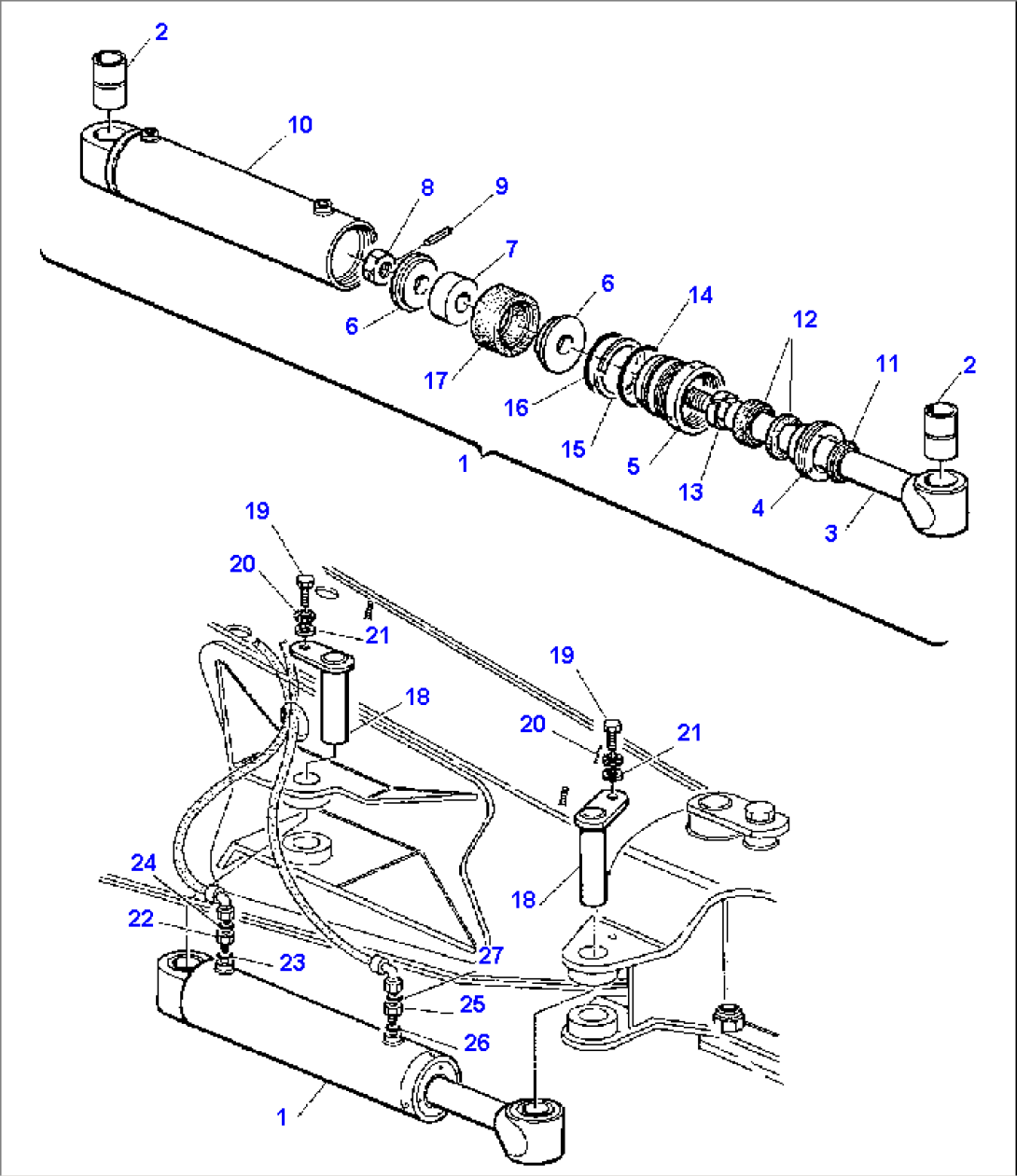

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 200063140 | SIDE DIGGING BOOM | 91F20127- | |
| 2 | 500210016 | BUSHING | 91F20127- | |
| 3 | 200087080 | PISTON ROD | 91F20127- | |
| 4 | 500462106 | RING, NUT | 91F20127- | |
| 5 | 500460307 | RING, NUT | 91F20127- | |
| 6 | 500464019 | FLANGE | 91F20127- | |
| 7 | 500464415 | SPACER | 91F20127- | |
| 8 | 500468007 | NUT | 91F20127- | |
| 9 | 802510226 | PEG | 91F20127- | |
| 10 | 200075620 | CYLINDER | 91F20127- | |
| \10 | 855660112 | KIT, GASKET | 91F20127- | |
| 11 | \6\ | GASKET | 91F20127- | |
| 12 | \6\ | GASKET | 91F20127- | |
| 13 | \6\ | RING | 91F20127- | |
| 14 | \6\ | O RING | 91F20127- | |
| 15 | \6\ | RING | 91F20127- | |
| 16 | \6\ | O RING | 91F20127- | |
| 17 | \6\ | GASKET | 91F20127- | |
| 18 | 200320080 | PIN | 91F20127- | |
| 19 | 801015135 | BOLT | 91F20127- | |
| 20 | 802150512 | SPRING WASHER | 91F20127- | |
| 21 | 802170003 | WASHER | 91F20127- | |
| 22 | 312737055 | UNION | 91F20127- | |
| 23 | 855051617 | O RING | 91F20127- | |
| 24 | 855051012 | O RING | 91F20127- | |
| 25 | 312737056 | UNION | 91F20127- | |
| 26 | 855051617 | O RING | 91F20127- | |
| 27 | 855051012 | O RING | 91F20127- |
