| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 10G-X16-2123 | FRAME | 83309- | |
| 1 | 10G-X16-2122 | FRAME ASS'Y | 83203-83308 | |
| 1 | 10G-X16-2121 | FRAME ASS'Y | 83197-83202 | |
| 2 | 01010-81655 | BOLT | 83001- | |
| 3 | 01643-31645 | WASHER | 83001- | |
| 4 | 07049-00608 | PLUG | 83001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D21a 8t s/n 83001 up (trimming dozer)
- Main frame and related parts
- Side frame (for trimming dozer)(#83197 )
Поиск по каталогу

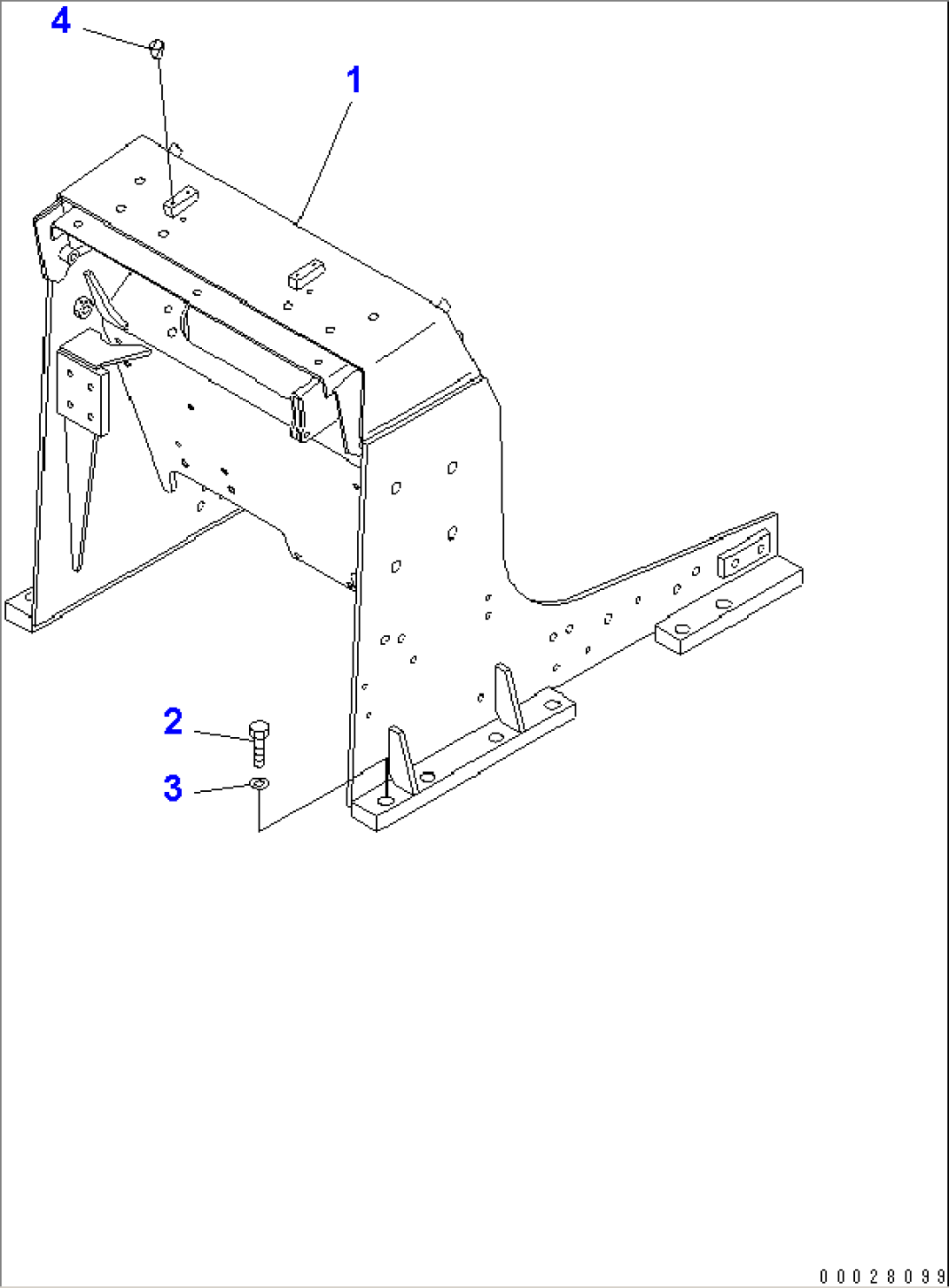

SIDE FRAME (FOR TRIMMING DOZER)(#83197-)
